30 Swing Operation
The swing operation takes a car out of the group and allows it to answer calls from the swing
riser. The car will complete the car call demand and go to the swing hall call.
30.1 Configuring Swing Operation Input
If swing is activated by a switch, the inputs to the controller must be entered for swing
operation. The following procedure describes how -to configure the inputs for swing operation.
1. Navigate to MAIN MENU | SETUP | SETUP I/O. See Figure 54.
2. From the SETUP I/O, scroll and select Setup Inputs. See Figure 268.
3. From the SELECT BOARD menu, scroll and select the board that is going to be assigned.
See Figure 269.
4. From the Input menu, scroll and select an unused input. See Figure 389.
NOTE: The X input is a representation of a number between 1-8.
5. Scroll right.
6. Scroll and select Auto Operation.

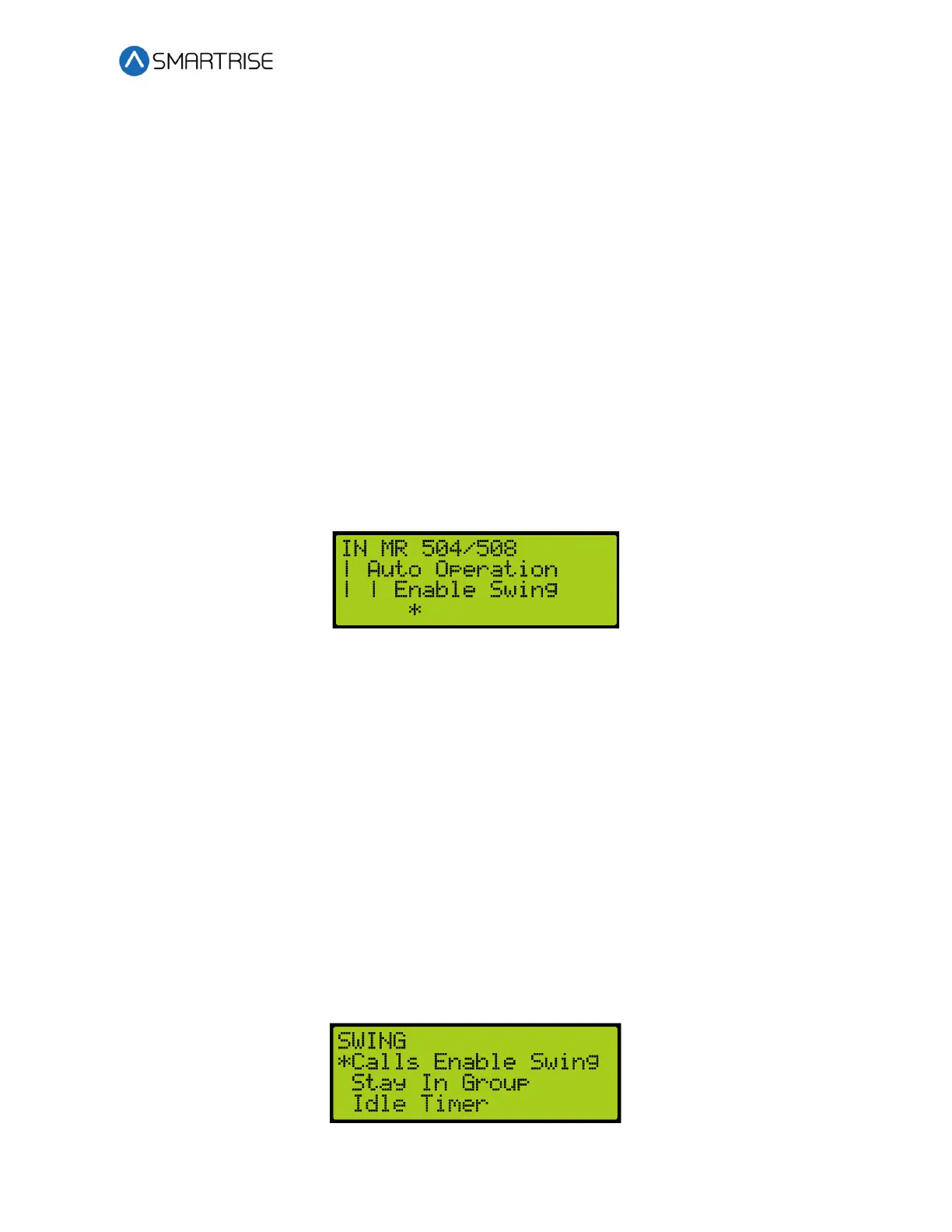

Figure 477: Input Menu – Enable Swing
7. Scroll right.
8. Scroll and select Enable Swing. See Figure 477.
9. Scroll right and press Save.
10. Wire the key switch to the input.
When 24 VDC is supplied to the input, the car enters Swing Operation and takes calls only from
the designated riser.
30.2 Calls Enable Swing
The following procedure describes how -to configure swing operation to be activated by the
swing riser call.
1. Navigate to MAIN MENU | SETUP | SWING. See Figure 61.
2. From the SWING menu, scroll and select Calls Enable Swing.
Figure 478: SWING Menu – Calls Enable Swing
