C4 User Manual
Page 190 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021
3. Scroll down and right until code 043 is displayed.

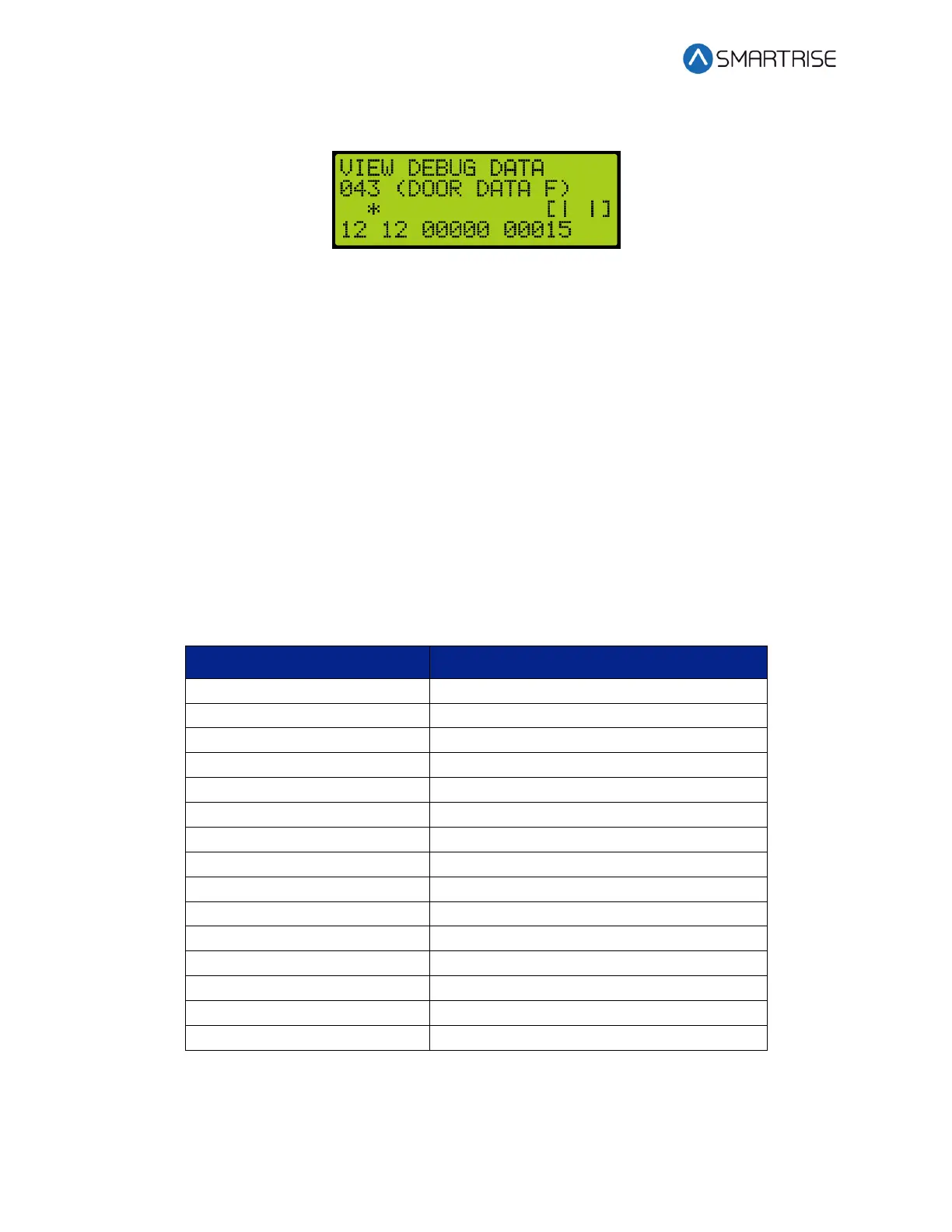

Figure 350: VIEW DEBUG DATA Menu – Front Door
4. View the state of the front door.
The Door State menus display the following:
• Front or Rear Door State – The symbol for the state of the door. See Table 30.
• Current Door Command – The current door command being issued to the door module.
See Table 29.
• Last Door Command – The last door command issued to the door module. See Table 29.
• Current Door Timer – The counter tracking when the door state should change. Each
count is 200 ms.
• Door Timer Limit – The limit the Current Door Timer needs to reach before proceeding
to the next door state. Each count is 200 ms.
The table below lists the door command issued to the Door Module.
Table 29: Door Command Issued to the Door Module
Command Index
Door Command
0
None
1
OPEN UI REQUEST
2
OPEN IN CAR REQUEST
3
OPEN ADA MODE
4
OPEN SABBATH MODE
5
OPEN HALL REQUEST
6
OPEN HOLD REQUEST
7
OPEN CONSTANT PRESSURE
8
CLOSE
9
CLOSE CONSTANT PRESSURE
10
NUDGE
11
NUDGE CONSTANT PRESSURE
12
FAULT
13
OPEN HOLD DWELL REQUEST
14
OPEN LOBBY REQUEST
