8.2 Inspection Run Options and Adjustments
The C4 controller uses pattern generation to conduct all runs, including inspection runs. This
means that there is an inherent ramp up to the inspection speed when beginning the run and a
ramp back to zero speed when the run is released. The inspection run options are configurable.
If the speed is increased, the car travels faster. If speed is decreased, the car runs slower. The
controller will fault if the speed feedback exceeds 150 fpm.
The adjustment range is from 0-150 fpm.
• Default = 50 fpm
• Units of Measure = fpm
The following procedure describes how to verify the inspection speed of the car.
1. Navigate to MAIN MENU | SETUP | SPEEDS. See Figure 55.
2. From the SPEEDS menu, scroll and select Inspection Speed.

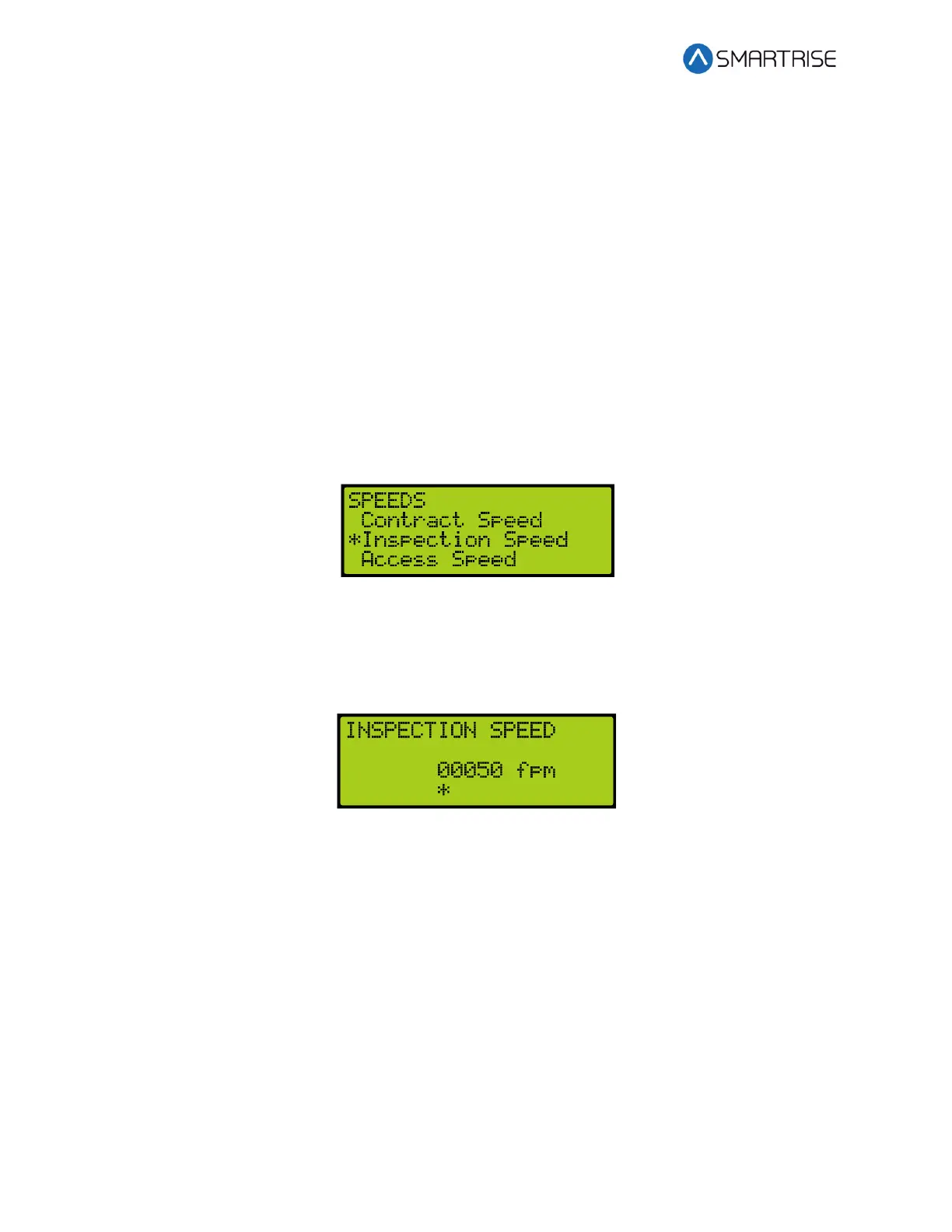

Figure 124: SPEEDS Menu – Inspection Speed
3. Verify the inspection speed. The value of the inspection speed can be set from 0 to 150
fpm. If the value is set > 150 fpm, the controller will fault until the parameter is adjusted
to a value ≤ 150 fpm.
Figure 125: INSPECTION SPEED Menu
4. Scroll right and press Save.
