C4 User Manual
Page 14 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021

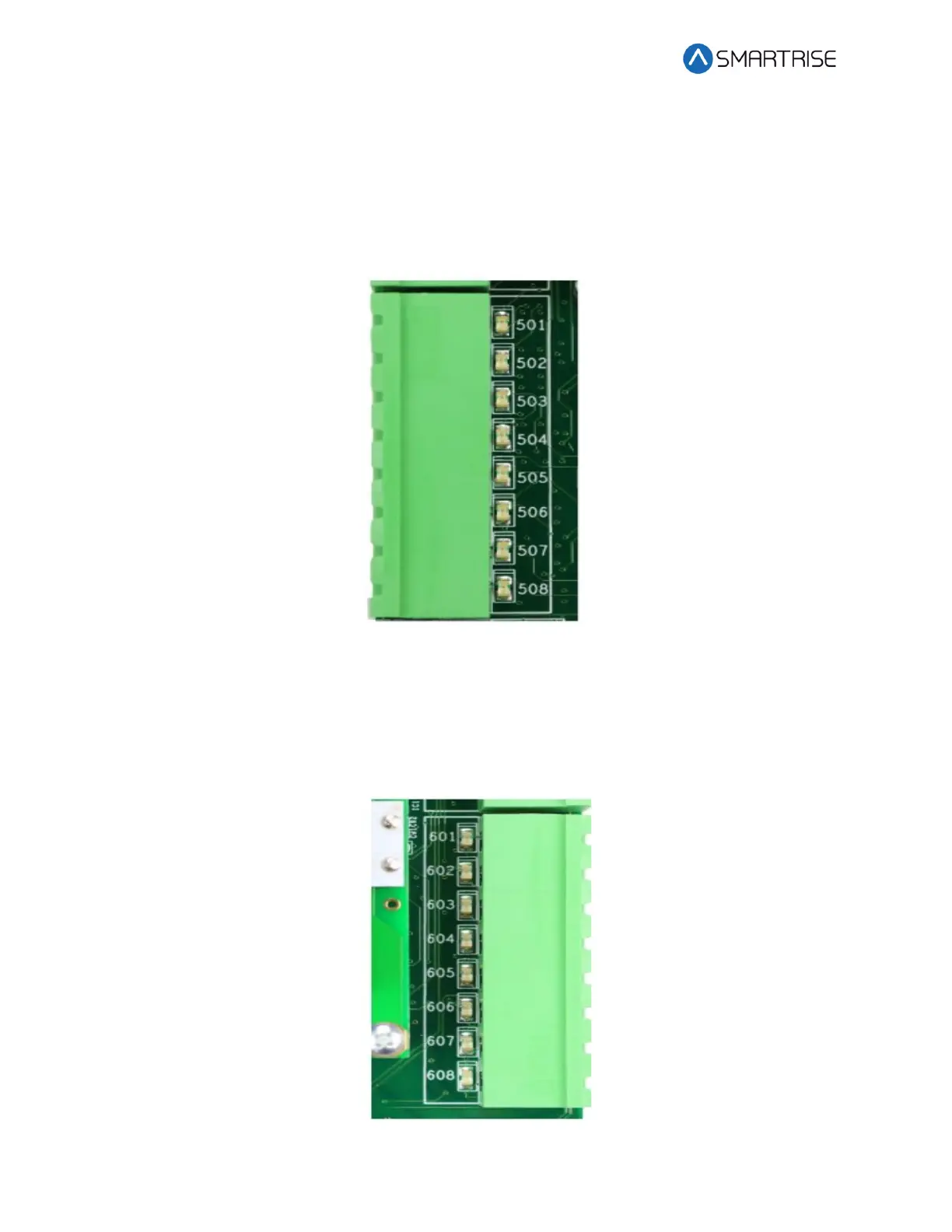

2.1.7 24 VDC Inputs and Outputs
24 VDC input is labeled 501-508.
Each input is activated when 24 VDC is applied to it. LEDs 501-508 are lit when active.
See the C4 Controller sheet 02 Machine Room I/O for wiring information.
Figure 16: 24 VDC Input Connector
24 VDC output is labeled 601-608.
Each output sinks to REF when activated. LEDs 601-608 are lit when active.
See the C4 Controller sheet 02 Machine Room I/O for wiring information.
Figure 17: 24 VDC Output Connector
