October 25, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 341
40 Debug
The Debug menu allows for viewing various statuses.
40.1 View Debug
The View Debug Data menu can be used to view important debugging information passed from
the main system processors MR, CT and COP boards and can be navigated to view from each
board’s UI.
The View Debug Data menu (see Figure 691) displays the number of bus errors detected since
startup. It also displays a rough estimate of the percentage of bus throughput currently in use.
This data can be used to diagnose communication issues caused by transmission problems and
excessive bus traffic.
The following procedure describes how to view the debug data.
1. Navigate to MAIN MENU | DEBUG | VIEW DEBUG DATA. See Figure 65.
2. From the View Debug Data menu, scroll and select the Debug Data of the system to be
viewed.

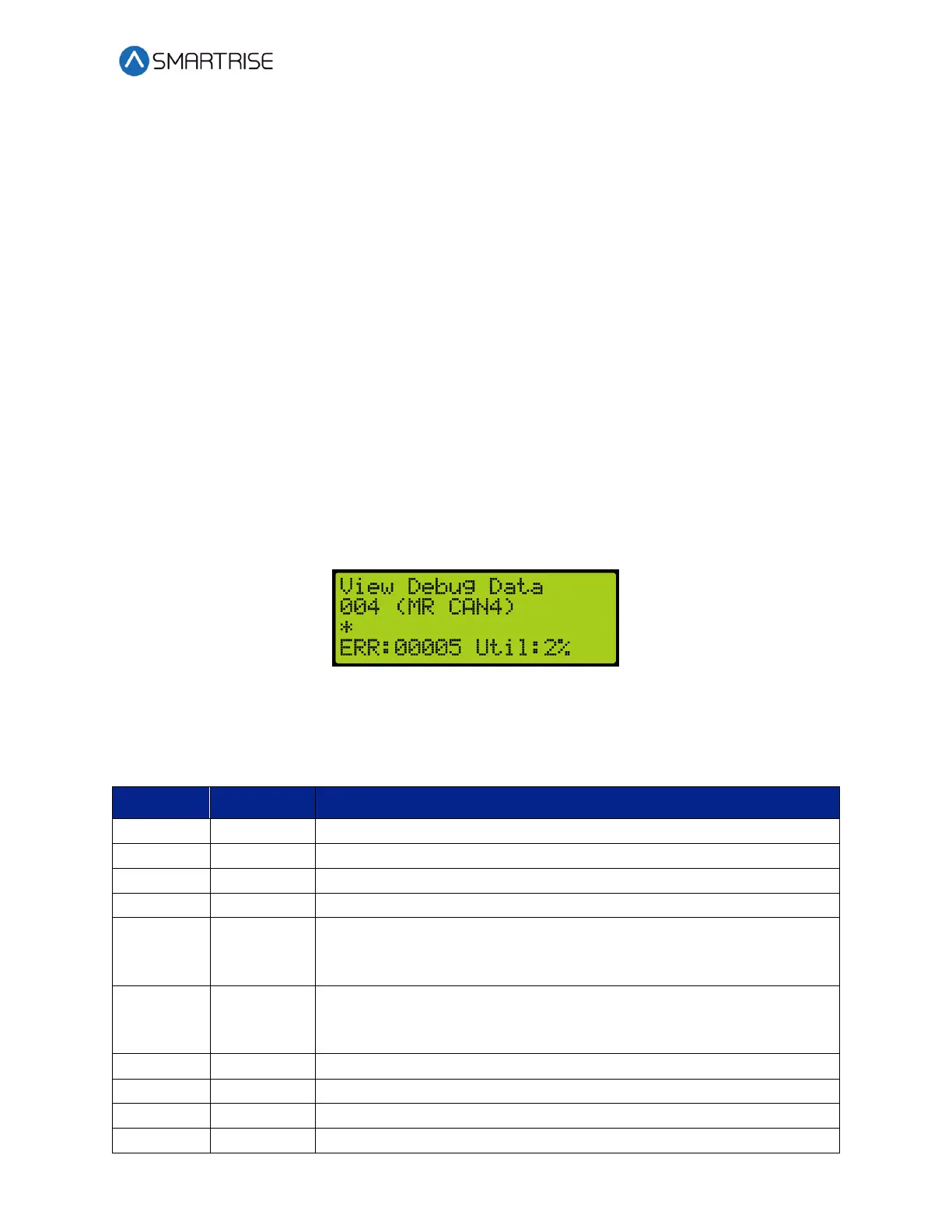

Figure 691: View Debug Data Menu
The table below lists the data index for MR, CT, and COP board communication.
Table 59: Data Index for MR, CT, and COP Board Communication
Data Index
Name
Description
1
MR CAN 1
MR board CAN1, Car Network (CN1+/-).
2
MR CAN 2
MR board CAN2, Brake Network (BN+/-).
3
MR CAN 3
MR board CAN3, Aux Network (AN+/-).
4
MR CAN 4
MR board CAN 4, Group Network (GN+/-).
5
MR A NET
MR board A processor RS232 Network.
Shows errors in packets received by the A processor, sent by the B
processor.
6
MR B NET
MR board B processor RS232 Network.
Shows errors in packets received by the B processor, sent by the A
processor.
7
MR RS485
MR board RS485 Drive network (RX+/-).
8
CT CAN 1
CT board CAN1, Car Network (CN1+/-).
9
CT CAN 2
CT board CAN2, CEDES camera channel 2.
10
CT CAN 3
CT board CAN3, Aux Network (C3H/L).
