C4 User Manual
Page 124 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021
CAUTION: Do not twist or bend the tape as this may damage the tape.

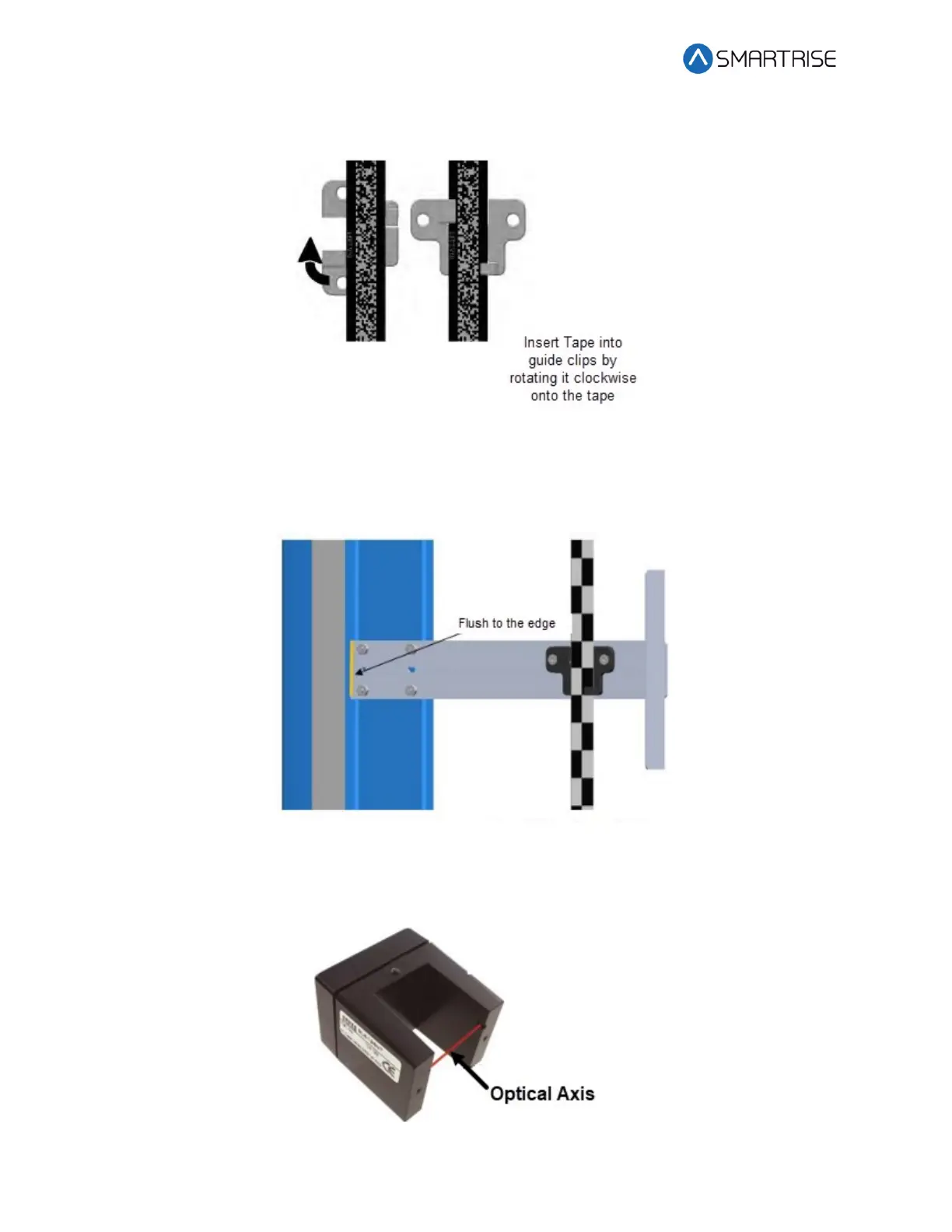

Figure 168: Tape Clip Insertion
4. Place the Tape Clip Assembly onto the guide rail with the edge flush to the rail.
CAUTION: There are strong magnets. Do not remove the bracket from the rail by pulling
the bracket from the far end as this may bend the bracket.
Figure 169: Tape Clip Assembly Alignment
5. Verify that the DZ blade is vertically centered with the GLS Reader optical axis.
Figure 170: Optical Axis
