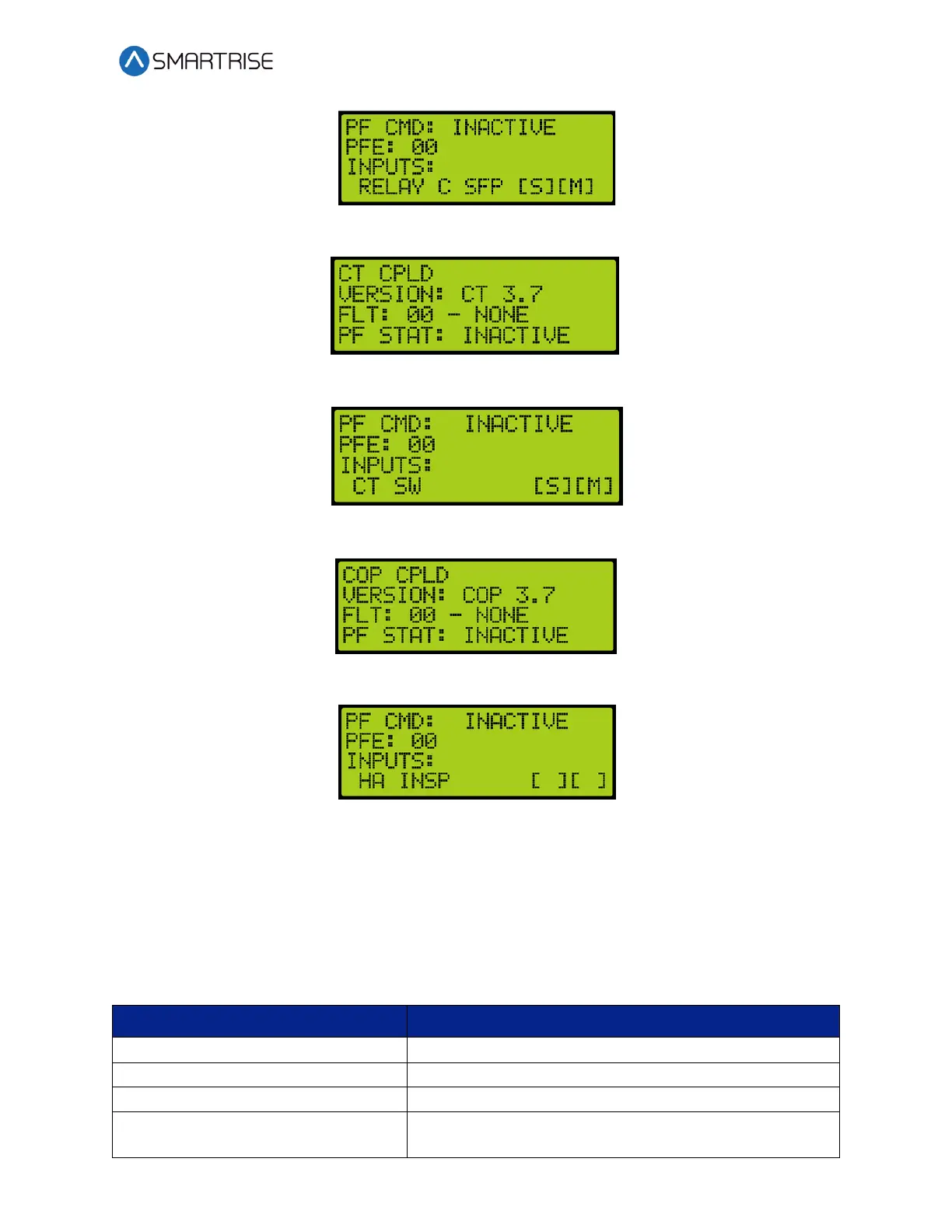

Figure 638: MR CPLD Menu Continued
Figure 639: CT CPLD Menu
Figure 640: CT CPLD Menu Continued
Figure 641: COP CPLD Menu
Figure 642: COP CPLD Menu Continued
The status as seen by the CPLD (safety processor) are marked by a “S” in the first bracket when
the input is active. The status as seen by the MR, CT, or COP boards are marked by a “M” in the
second bracket when the input is active.
The table below lists the CPLD menu description.
Table 54: CPLD Menu Description
CPLD Menu
Description
CPLD
Displays the type of CPLD being viewed.
VERSION
Displays the CPLD version software.
PFE
Displays the preflight failure number of the CPLD.
FLT
Displays a fault code for an existing fault. If there is no
fault, the status is shown as None.
