3. From the Door Command Landing menu, view the designated landing of the car.

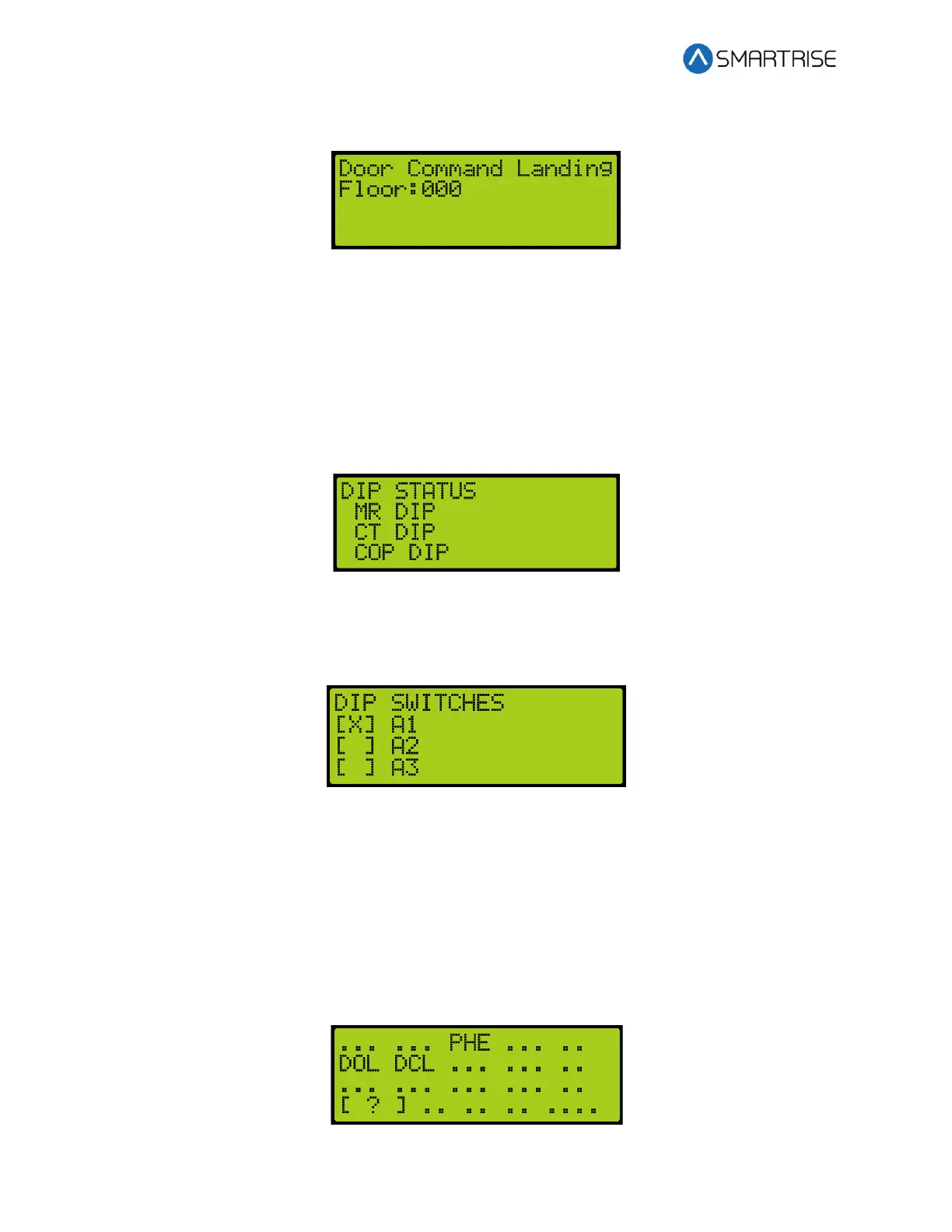

Figure 663: Door Command Landing Menu
34.13 DIP Status
The DIP status displays the DIP switches on the MR, CT, or COP board that are ON.
The following procedure describes how to view which DIP switches are ON.
1. Navigate to MAIN MENU | STATUS | DIP STATUS. See Figure 50.
2. From the DIP STATUS menu, select MR, CT, or COP DIP.
Figure 664: DIP STATUS Menu – MR, CT, or COP DIP
3. From the DIP SWITCHES menu, view the DIP switches that are on for the MR, CT, or COP
board.
Figure 665: DIP SWITCHES Menu
34.14 Door Status
The door status displays the input status of a front or rear door.
The following procedure describes how to view the status of the doors.
1. Navigate to MAIN MENU | STATUS | DOOR STATUS (Front or Rear). See Figure 51.
2. From the Door Status menu, view the input status of the door.
Figure 666: Door Status Menu
