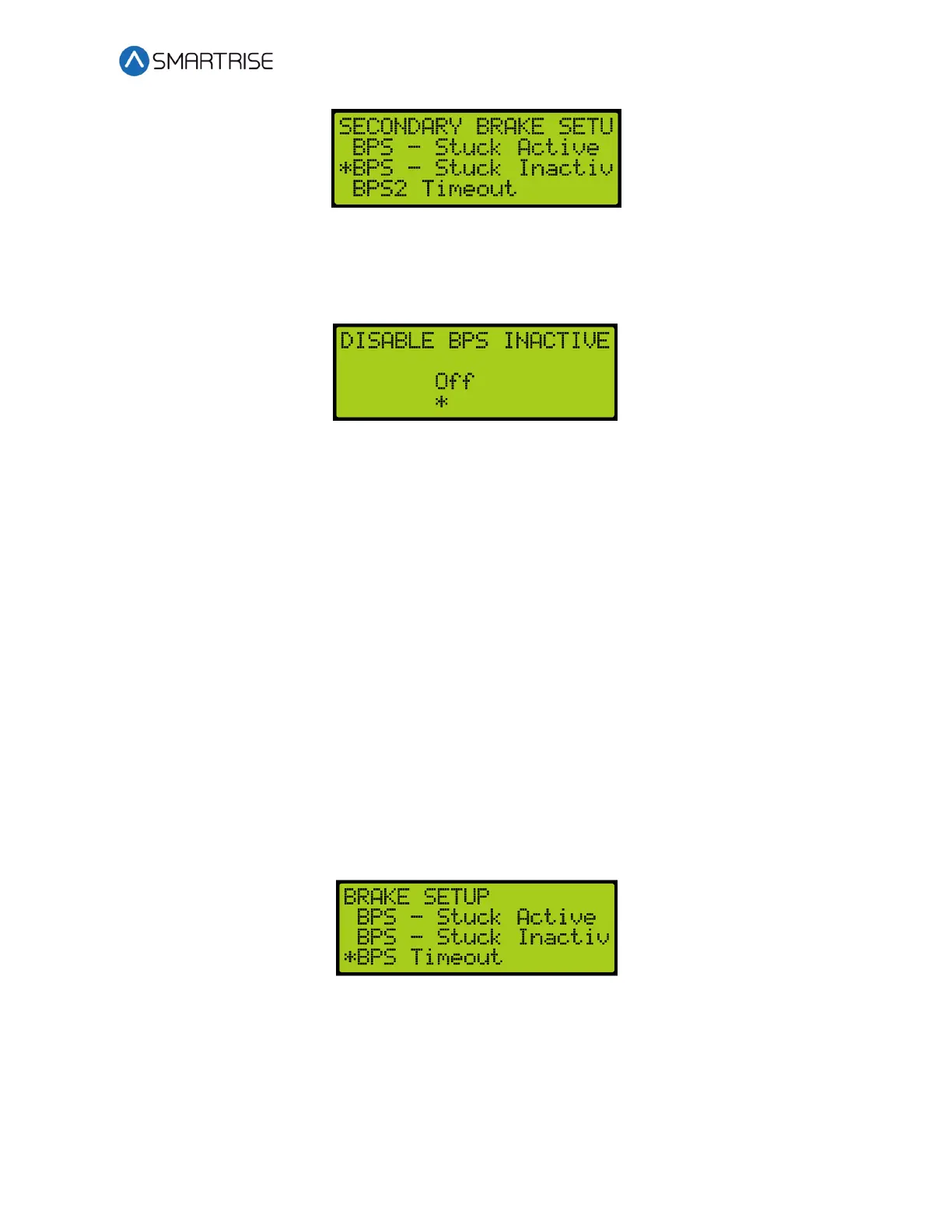

Figure 108: SECONDARY BRAKE SETUP Menu – BPS – Stuck Inactive
4. From the DISABLE BPS INACTIVE menu, scroll and select Off to monitor if the BPS is
stuck.
Figure 109: DISABLE BPS INACTIVE Menu
5. Scroll right and press Save.
6.12 BPS-Timeout
The BPS Timeout is the maximum amount of time for the BPS to remain picked or dropped. If
the BPS remains in the same state in either situation after the allotted time, a fault occurs.
The following procedure describes how to set the time the BPS switch can remain closed or
open.
1. Navigate to MAIN MENU | SETUP | BRAKE SETUP. See Figure 56.
2. From the BRAKE SETUP menu, scroll and select Primary or Secondary Setup. See Figure
77.
3. Setting BPS Timeout for primary or secondary brake?
a. If setting the BPS Timeout for the primary brake, go to step 4.
b. If setting the BPS Timeout for the secondary brake, go to step 6.
4. From the BRAKE SETUP menu, scroll and select BPS Timeout.
Figure 110: (Primary) BRAKE SETUP Menu – BPS Timeout
