The Cedes Optical Sensor and Reader can be connected to either side of the sensor base plate
depending upon which side the Sensor Array Assembly is connected to the C-Channel See
Figure 4 and Figure 5.
The following procedure describes how to connect the Optical Sensor and Reader to either side
of the sensor base plate.

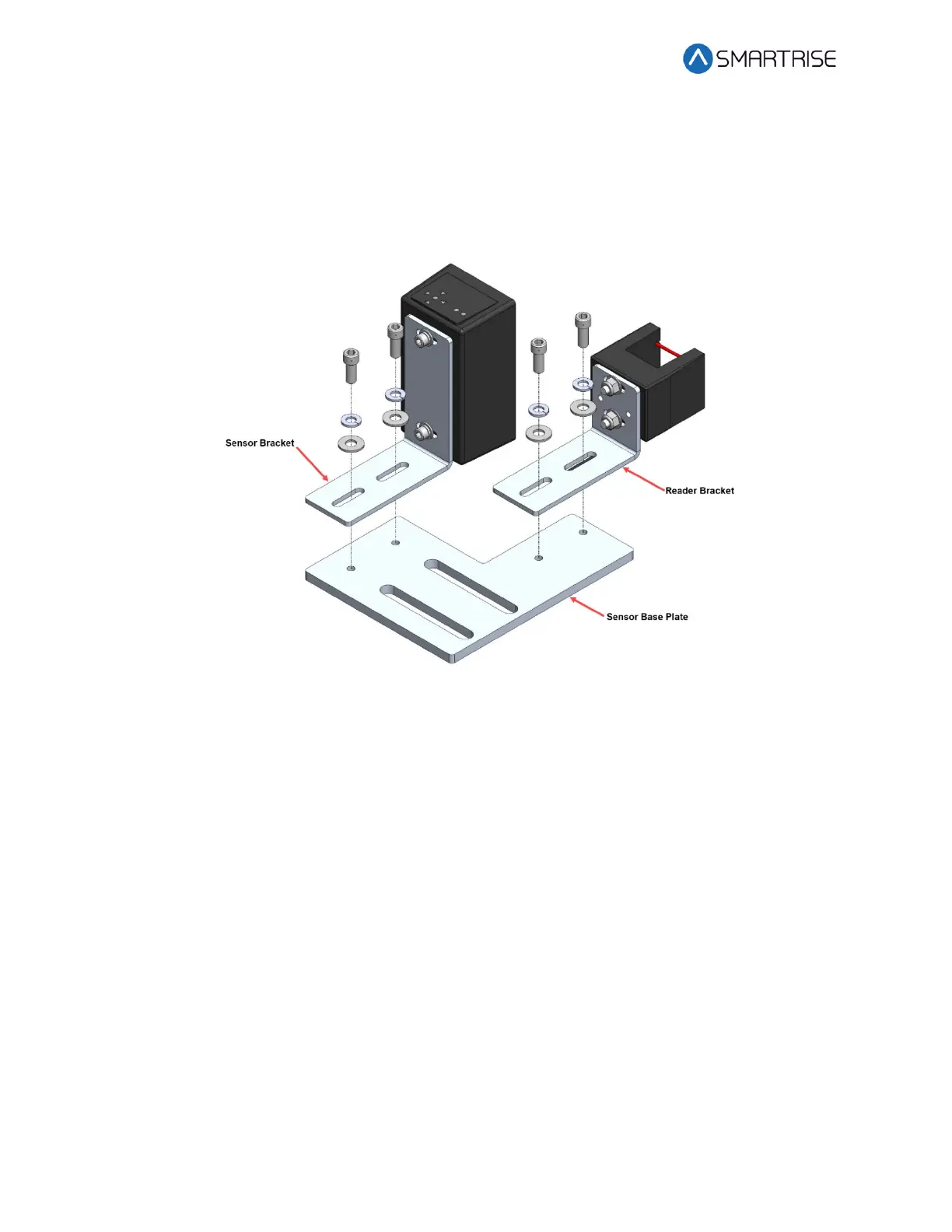

Figure 176: Sensor Array Assembly (Right Side)
1. Remove screws, lock washers, and washers securing the sensor and reader brackets to
the sensor base plate.
2. Remove both sensor and reader brackets from the sensor base plate.
3. Flip the sensor base plate.
To Next Page
