42 Faults
The Faults menu shows the faults reported by the software and hardware.
42.1 Active Faults
When a fault occurs, the description of the type of fault is displayed in Active Faults. Active
faults can stop the car from running.
The following procedure describes how to view the list of active faults.
1. Navigate to MAIN MENU | FAULTS | ACTIVE. See Figure 52.
2. From the ACTIVE FAULTS menu, view the list of faults that are preventing operation.

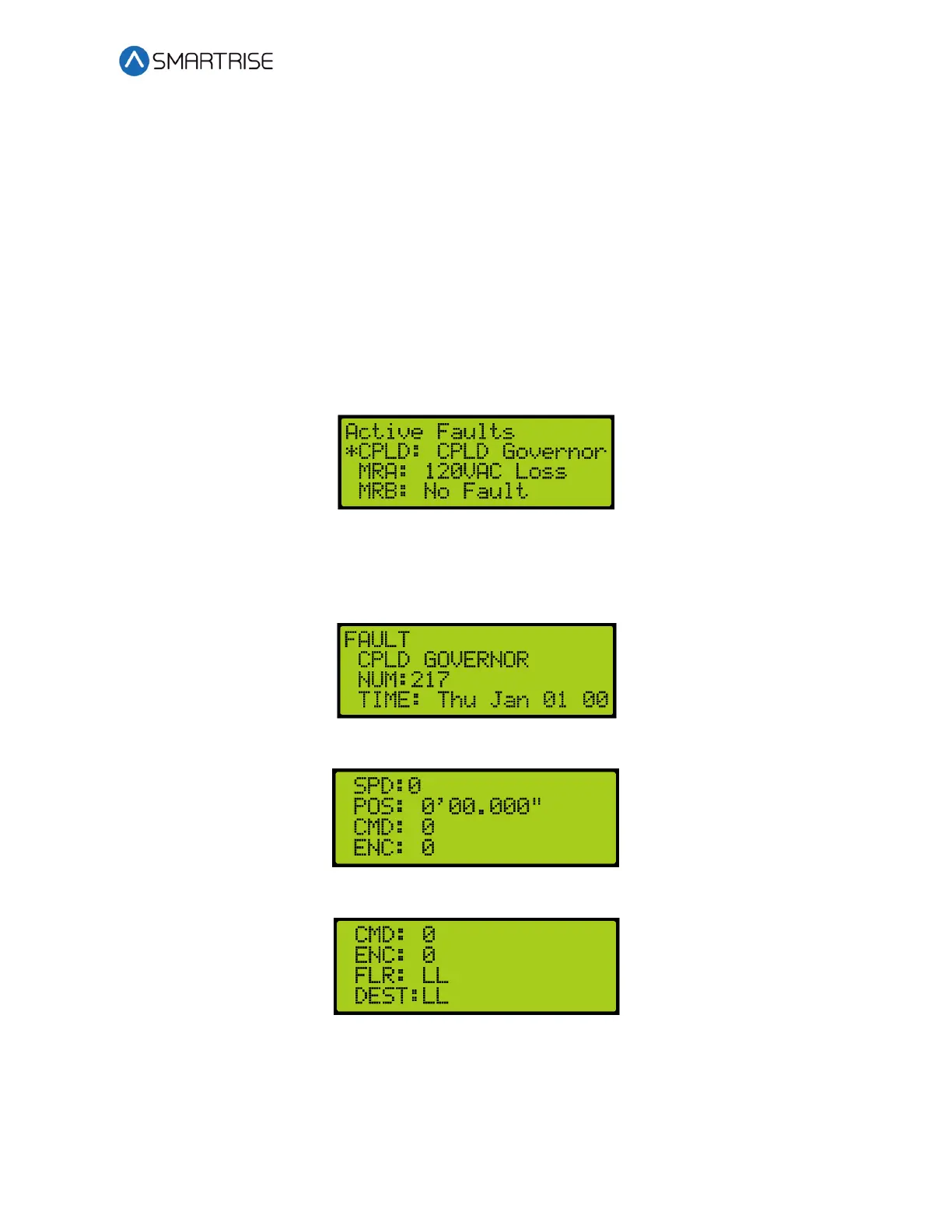

Figure 735: Active Faults Menu
3. From the Active Faults menu, scroll and press the right button for more description of
the fault. See C4 Faults and Alarms for more information.
Figure 736: Fault Part 1 of 3
Figure 737: Fault Part 2 of 3
Figure 738: Fault Part 3 of 3
