2. From the SAFETY menu, scroll and select Construction ODL.

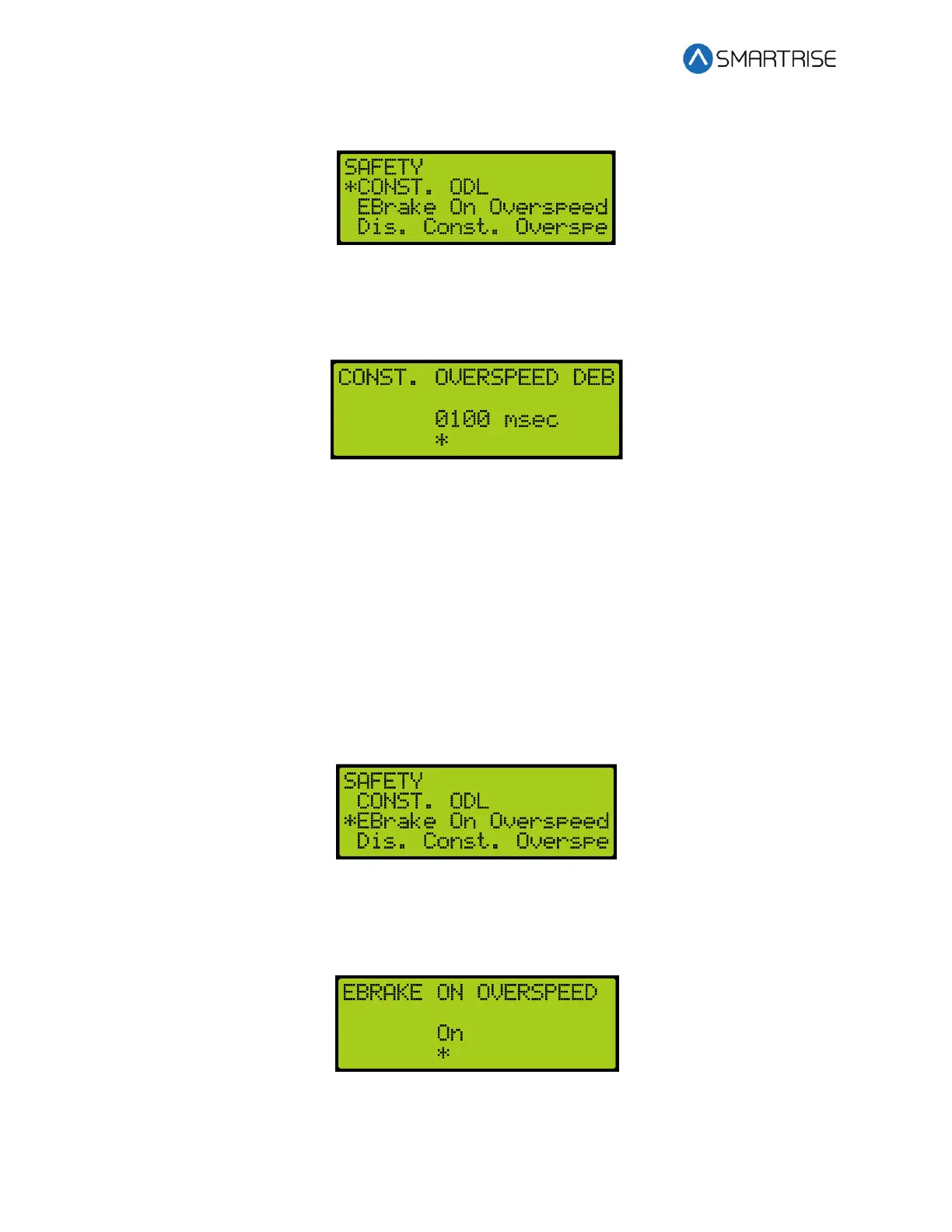

Figure 515: SAFETY Menu – Construction. ODL
3. From the CONSTRUCTION OVERSPEED DEBOUNCE menu, set the time of the
construction overspeed debounce limit.
Figure 516: CONSTRUCTION. OVERSPEED DEBOUNCE Menu
4. Scroll right and press Save.
32.9 EBrake On Overspeed
The emergency brake on overspeed (ODL) enables the emergency brake for general overspeed
faults.
The following is an example of enabling or disabling the emergency brake ODL.
1. Navigate to MAIN MENU | SETUP | SAFETY. See Figure 54.
2. From the SAFETY menu, scroll and select EBrake On Overspeed.
Figure 517: SAFETY Menu – EBrake On Overspeed
3. From the EBRAKE ON OVERSPEED menu, scroll and select if the emergency brake
overspeed is enabled or disabled.
Figure 518: EBRAKE ON OVERSPEED Menu
4. Scroll right and press Save.
