29 Miscellaneous
The controller is bound by the set parameters. The miscellaneous parameters are the general
parameters to control other variables within the elevator.
29.1 Bypass Term Limit
The bypass terminal limit allows the car to go beyond the terminal limits set by the user during
inspection mode.
The following procedure describes how to bypass terminal limits.
1. Navigate to MAIN MENU | SETUP | MISCELLANEOUS. See Figure 58.
2. From the Miscellaneous menu, scroll and select Bypass Term Limits.

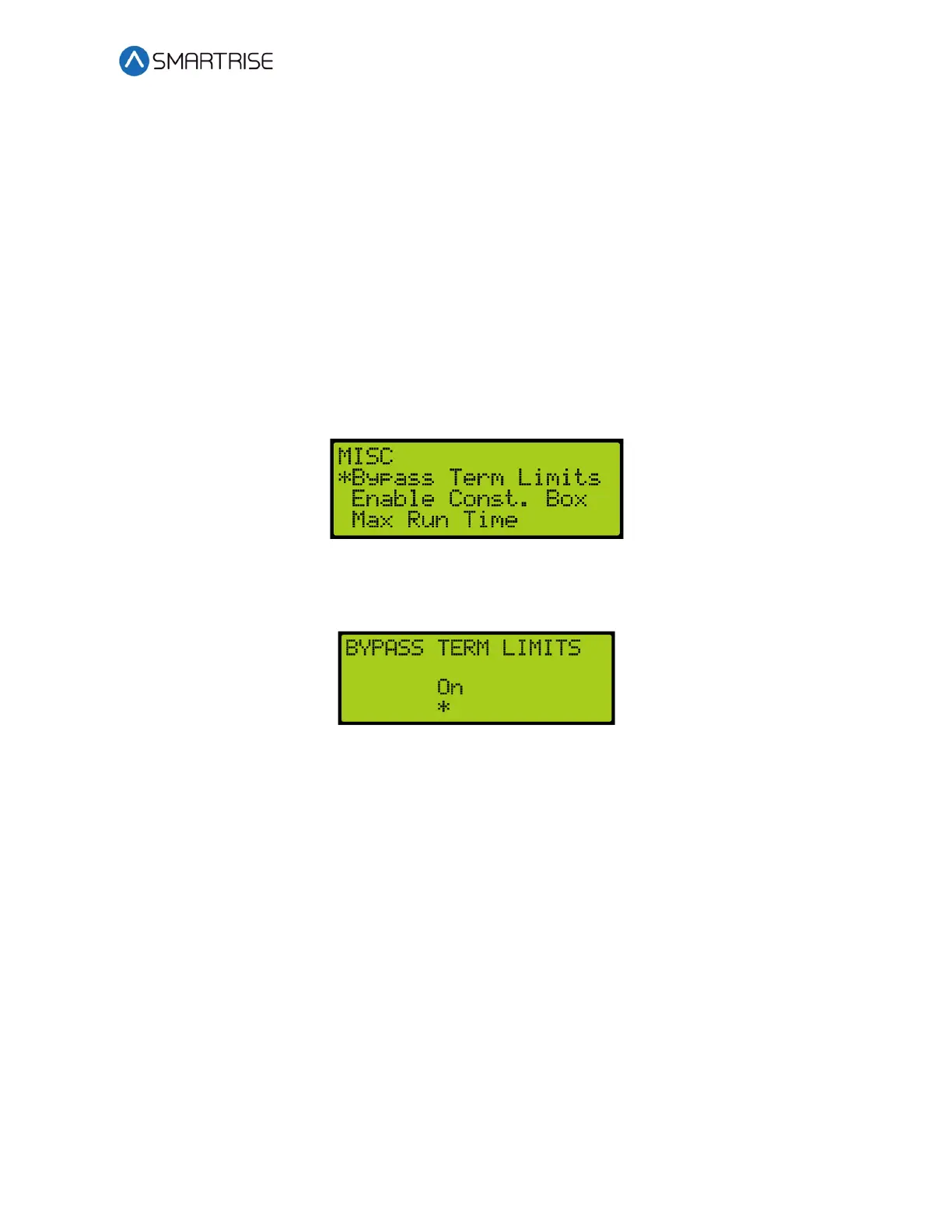

Figure 414: MISCELLANEOUS Menu – Bypass Term Limits
3. From the BYPASS TERM LIMITS menu, scroll and select On to bypass terminal limits.
Figure 415: BYPASS TERM LIMITS Menu
4. Scroll right and press Save.
29.2 Enable Construction Box
When the Enable Construction Box is set to enable, the CUP and CDN inputs on the MR Board
are used to move the car. Verify 24 VDC is wired directly to the CEN input. If not, then 24VDC
must be jumpered to CEN.
The following procedure describes how to enable the construction box.
1. Navigate to MAIN MENU | SETUP | MISCELLANEOUS. See Figure 58.
