C4 User Manual
October 25, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 177
1. Navigate to MAIN MENU | SETUP | DOOR SETUP. See Figure 55.
2. From the DOORS menu, scroll and select PreOpening Distance.

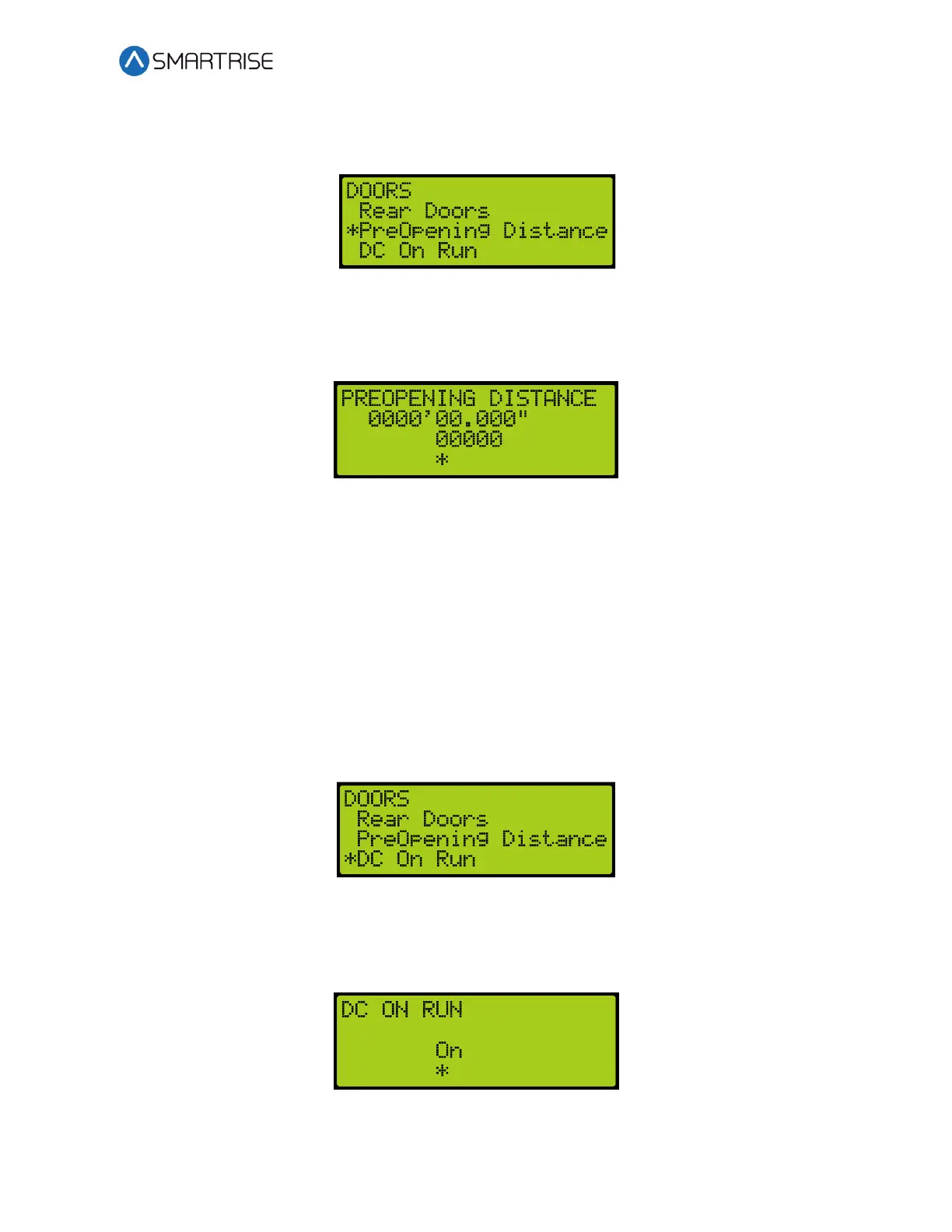

Figure 308: DOORS Menu – PreOpening Distance
3. From the PREOPENING DISTANCE menu, set the distance from the landing the doors
start to open.
Figure 309: PREOPENING DISTANCE Menu
4. Scroll right and press Save.
16.11 DC On Run
The DC On Run activates a door close output when the car is in motion. This can be useful if
doors require constant pressure to prevent relaxing.
The following procedure describes how to set the DC on Run.
1. Navigate to MAIN MENU | SETUP | DOOR SETUP. See Figure 55.
2. From the DOORS menu, scroll and select DC On Run.
Figure 310: DOORS Menu – DC On Run
3. From the DC ON RUN menu, scroll and select On to enable the doors to close when the
car is in motion.
Figure 311: DC ON RUN Menu
