21.6 Invert Outputs
Just as invert inputs monitors the state of an assigned input (active low instead of active high),
the invert outputs does the same but for an assigned output. After a type of output has been
assigned, the output may need to have the system invert the level of the active/inactive output
logic. The invert output allows for changing the logic level of the assigned output.
The following procedure describes how to change the state of the output.
1. Navigate to MAIN MENU | SETUP | SETUP I/O. See Figure 54.
2. From the SETUP I/O menu, scroll and select Invert Outputs.

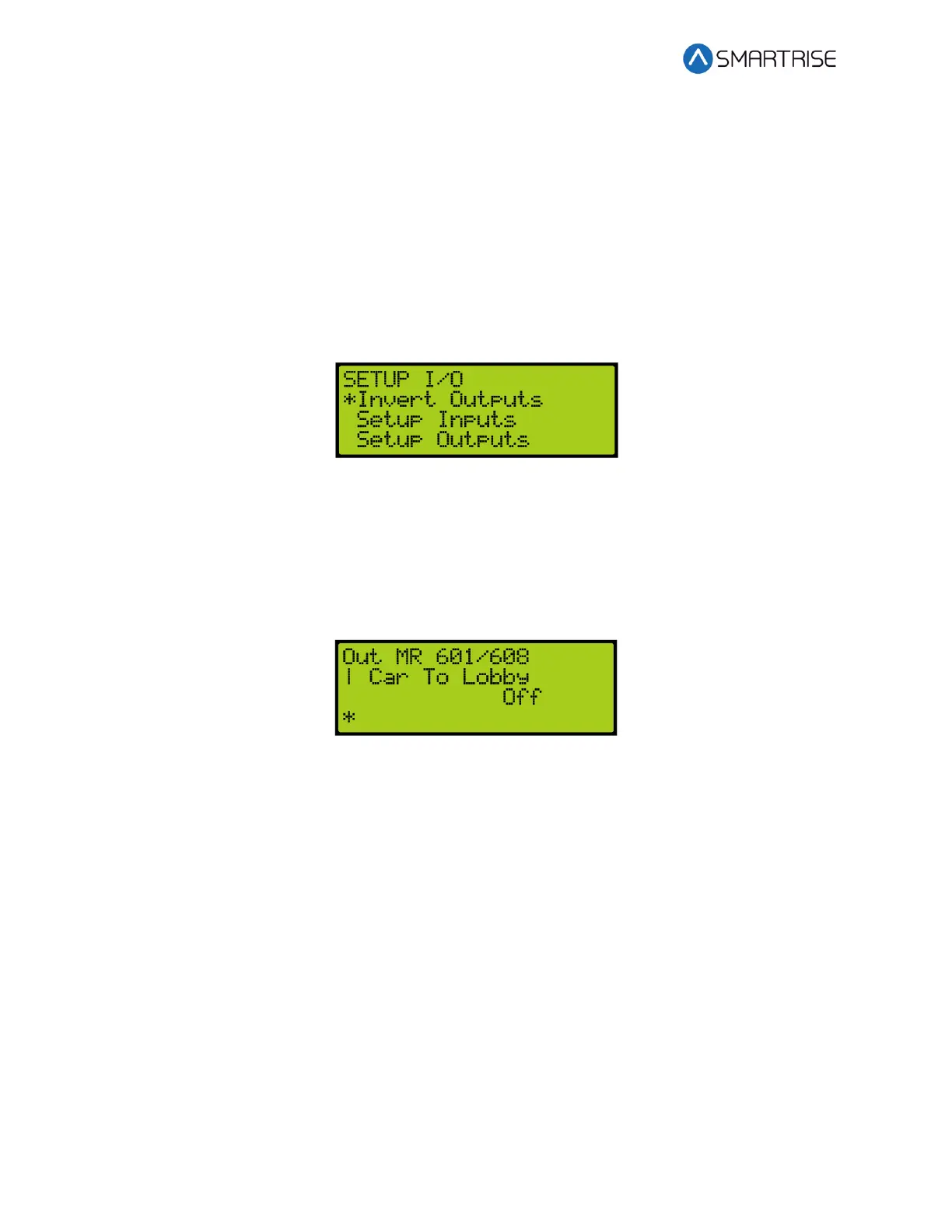

Figure 393: SETUP I/O Menu – Invert Outputs
3. From the SELECT BOARD menu, scroll and select the board that has an assigned output
changing states. See Figure 269.
NOTE: For this example, the MR board is shown.
4. From the Invert Outputs menu, scroll and select the assigned input and if the input is
Active (On) or Inactive (Off).
Figure 394: Invert Outputs Menu
