C4 User Manual
October 25, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 201
14. View the VIP (Front and Rear) Mask Status.

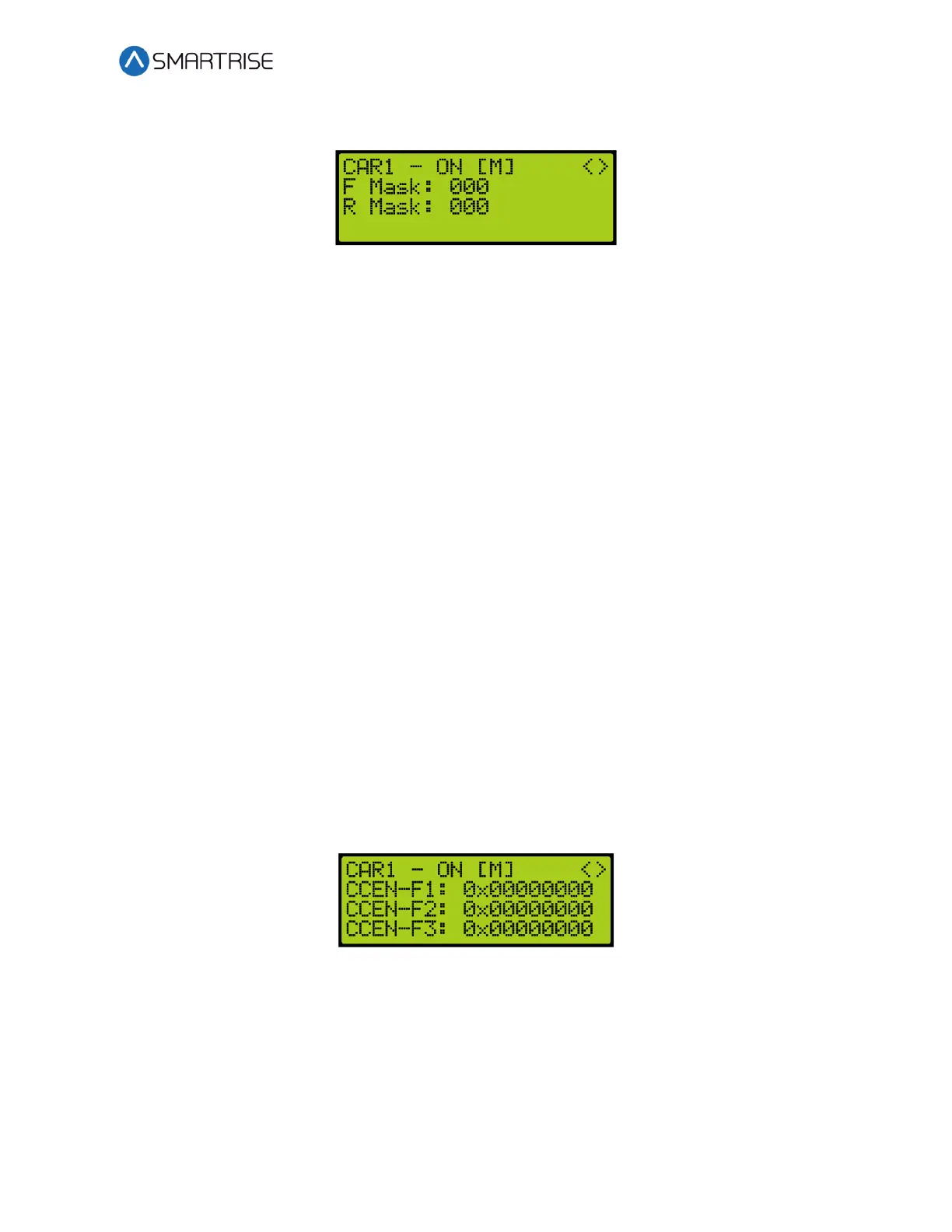

Figure 364: VIP Mask Status
17.11 Car Call Enable Bitmap Status
The car call enable signals (signals that bypass car call security) active on the car in bitmap form.
Each bit in the map represents a front or rear opening for a different group landing.
17.11.1 Front Car Call Enable Bitmap Status
The following procedure describes how to view the Front Car Call Enable Bitmap Status.
1. Navigate to MAIN MENU | DEBUG | CAR DATA. See Figure 66.
2. From the Car Data Overview Status (see Figure 352), press the right button.
3. From the Hall Mask Status (see Figure 353), press the right button.
4. From the Front Opening Map Status (see Figure 354), press the right button.
5. From the Rear Opening Map Status (see Figure 355), press the right button.
6. From the Front Security Map Status (see Figure 356), press the right button.
7. From the Rear Security Map Status (see Figure 357), press the right button.
8. From the Linked Hall Mask Status (see Figure 358), press the right button.
9. From the Hall Security Map Status (see Figure 359), press the right button.
10. From the Front Hall Security Map Status (see Figure 359), press the right button.
11. From the Rear Hall Security Map Status (see Figure 360), press the right button.
12. From the Dispatching Timers Status (see Figure 362), press the right button..
13. From the VIP Flags Status (see Figure 363), press the right button.
14. View the VIP (Front and Rear) Mask Status (see Figure 364), press the right button.
15. View the Front Car Call Enable Bitmap Status.
Figure 365: Front Car Call Enable Bitmap Status
17.11.2 Rear Car Call Enable Bitmap Status
The following procedure describes how to view the Rear Car Call Enable Bitmap Status.
1. Navigate to MAIN MENU | DEBUG | CAR DATA. See Figure 66.
2. From the Car Data Overview Status (see Figure 352), press the right button.
3. From the Hall Mask Status (see Figure 353), press the right button.
