C4 User Manual
Page 214 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021

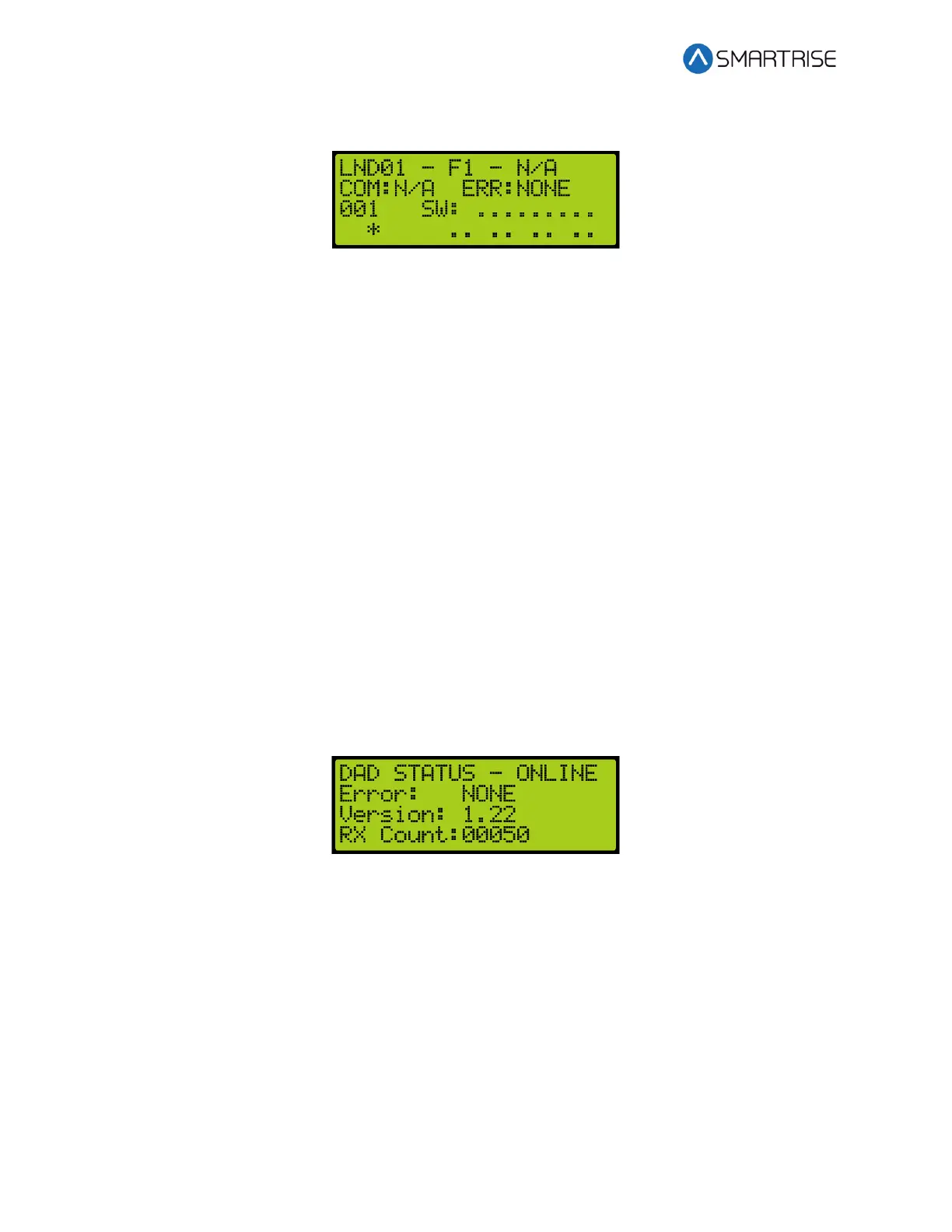

The figure below shows an example of the status of an uninitialized Hall Lantern Status.
Figure 387: Uninitialized Hall Lantern Status
19.4 Errors
For Hall Lantern Mask errors, see section 18.11 Errors.
20 C4 Data Acquisition Device Unit
Each Smartrise C4 Controller comes wired to a DAD unit that comes equipped with a Graphical
User Interface Application (GUI). The following section explains how to connect wirelessly to
the DAD unit and access its application using a laptop or a tablet. See C4 GUI Manual for more
information.
20.1 DAD Status
The DAD status displays the status and communication of the DAD unit.
The following procedure describes how to view the DAD status.
1. Navigate to MAIN MENU | STATUS | DAD STATUS. See Figure 48.
2. From the DAD STATUS menu, view the status of the DAD unit.
Figure 388: DAD STATUS Menu
The DAD STATUS menu displays the following:
• DAD STATUS – Shows if the DAD unit is ONLINE or OFFLINE.
• ERROR – Displays the current fault the DAD unit is experiencing if a red LED light is
blinking on the DAD unit.
• Version – Shows the current software version of the DAD unit.
• RX Count – Displays the communication packets the controller is receiving from the DAD
unit.
