C4 User Manual
Page 270 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021
4. Scroll right and press Save.
32.5 Door Open ODL
The door open overspeed debounce limit prevents the doors from opening when the car is
falling over 150 fpm.
The following is an example of setting the door ODL.
1. Navigate to MAIN MENU | SETUP | SAFETY. See Figure 54.
2. From the SAFETY menu, scroll and select Door Open ODL.

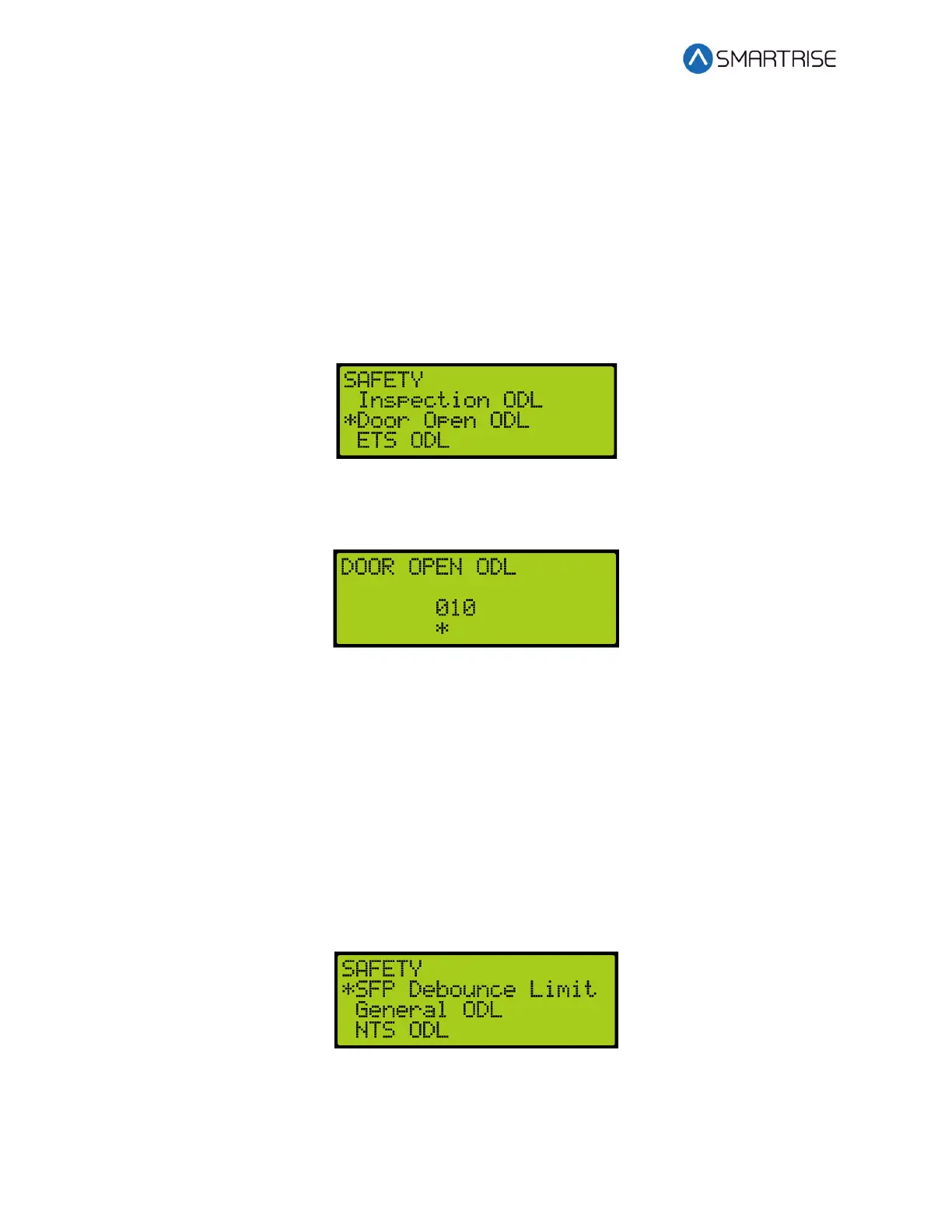

Figure 509: SAFETY Menu – Door Open ODL
3. From the DOOR OPEN ODL menu, enter the door open debounce limit.
Figure 510: DOOR OPEN ODL Menu
4. Scroll right and press Save.
32.6 SFP Debounce Limit
The safety processor (SFP) debounce limit sets a delay when a number of minimum events
happen at once
The following is an example of setting up the SFP debounce limit ODL.
1. Navigate to MAIN MENU | SETUP | SAFETY. See Figure 54.
2. From the SAFETY menu, scroll and select SFP Debounce Limit.
Figure 511: SAFETY Menu – SFP Debounce Limit
