40.9.5 Fire Status
The Fire Status displays if Fire Phase 1 and 2 are active.
The following procedure describes how to view the fire status.
1. Navigate to MAIN MENU | DEBUG | MODULE STATUS. See Figure 66.
2. From the MODULE STATUS menu, scroll and select Fire Status.

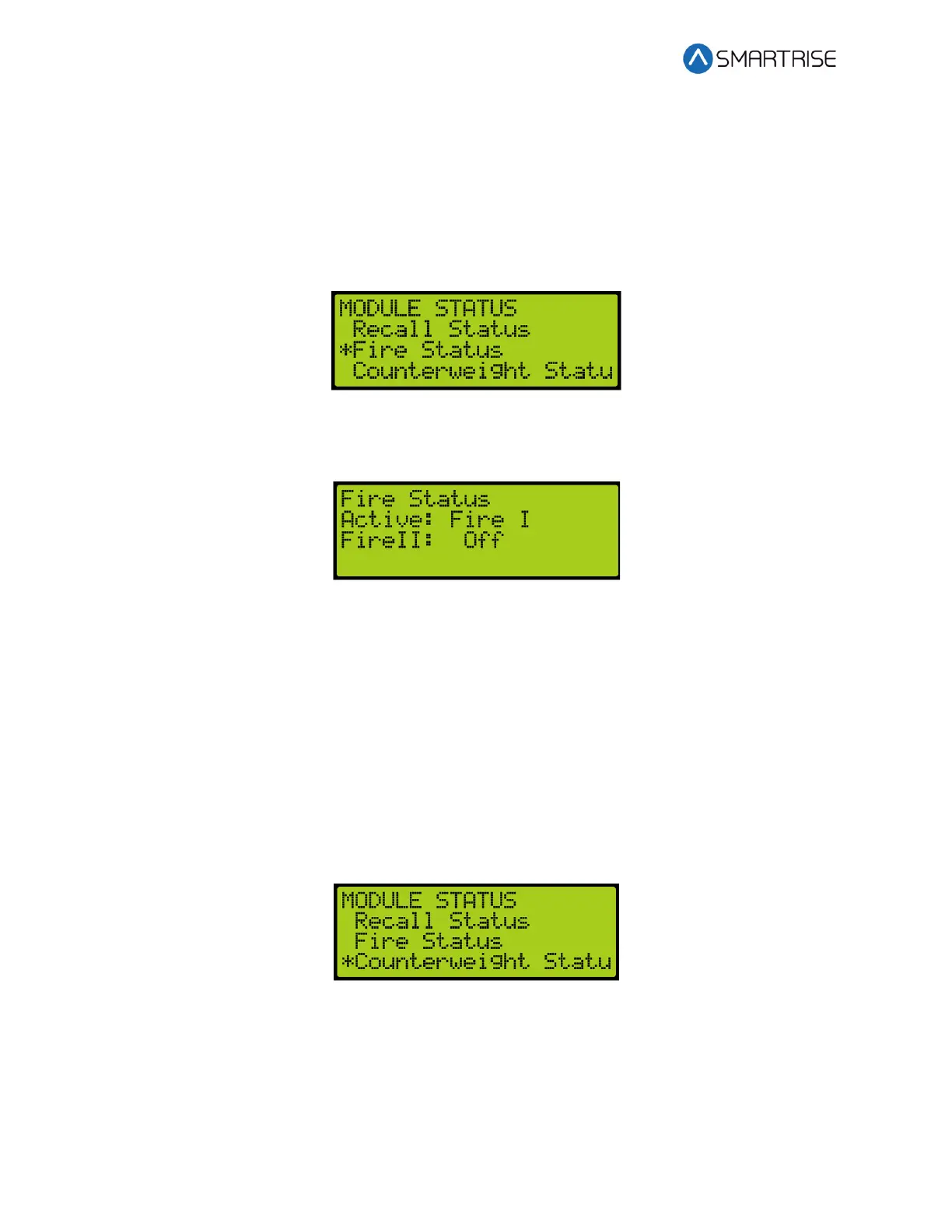

Figure 711: MODULE STATUS Menu – Fire Status
3. From the Fire Status menu, view if the fire operation is active.
Figure 712: Fire Status Menu
40.9.6 Counterweight Status
The counterweight status displays the status of the counterweight derailment. The state of the
counterweight is unknown unless the mode of operation is CW Derail where the state changes
to GoingToNearestDestination. Upon arriving at the destination and with the doors open, the
state shows no state.
The following procedure describes how to view the counterweight status.
1. Navigate to MAIN MENU | DEBUG | Module Statuses. See Figure 66.
2. From the Module Status menu, scroll and select Counterweight Status.
Figure 713: MODULE STATUS Menu – Counterweight Status
