C4 User Manual
October 25, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 129
4. Place the sensor and reader brackets back onto the sensor base plate and secure.

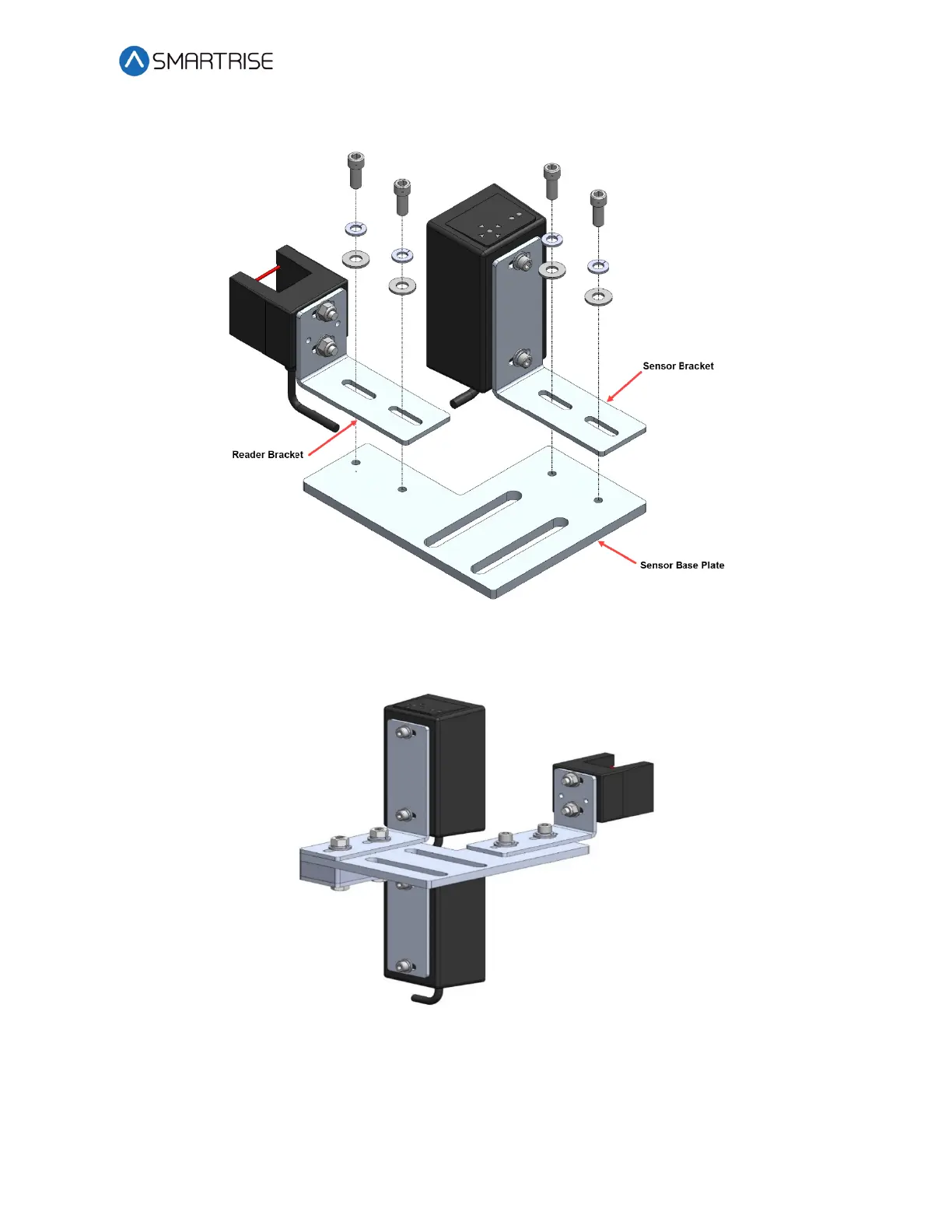

Figure 177: Sensor Array Assembly (Left Side)
A Dual Sensor Array Assembly can be installed if applicable.
Figure 178: Dual Sensor Array Assembly
