C4 User Manual
Page 86 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021
4. From the RAMP TIME (RELEVEL) menu, enter the time for the brakes to ramp up for
releveling.

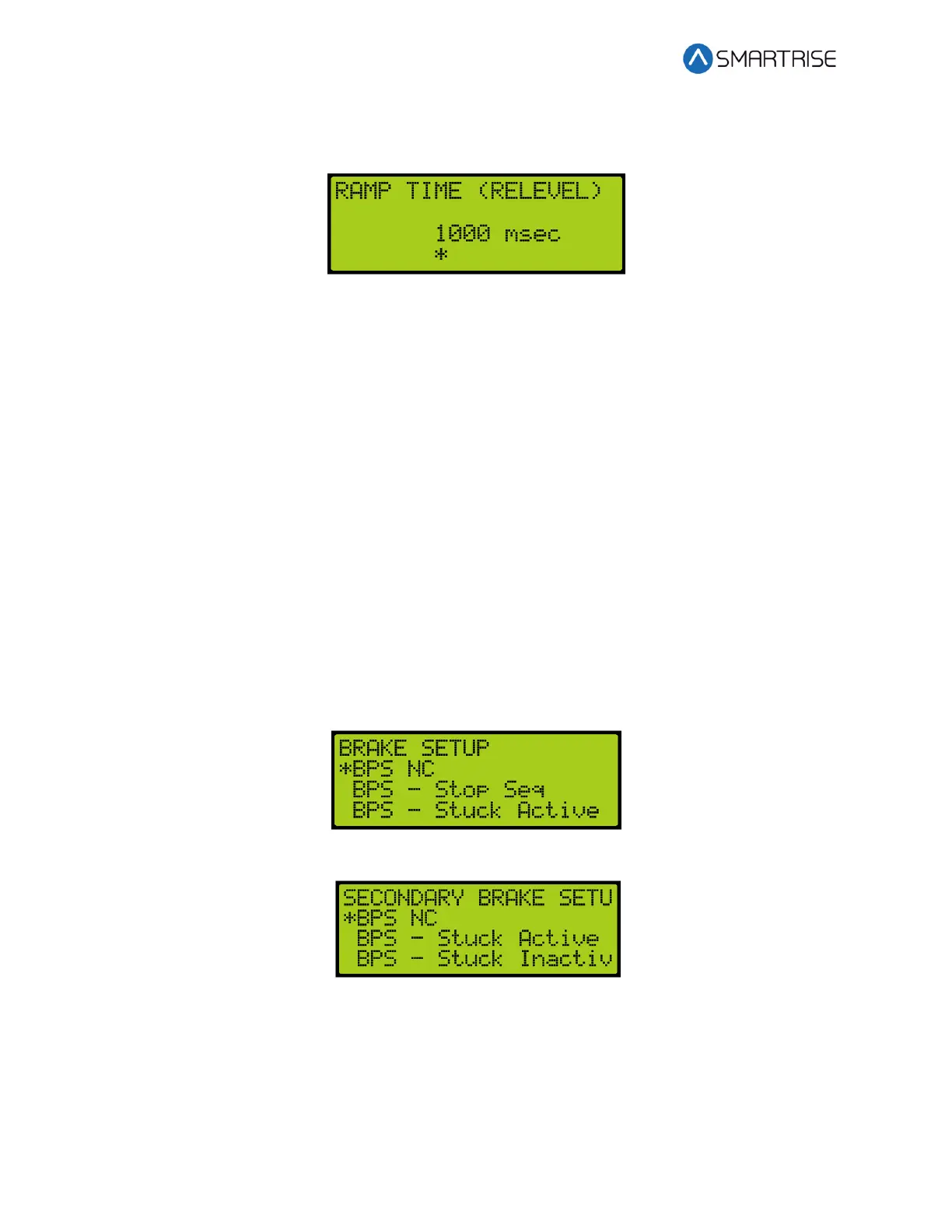

Figure 98: RAMP TIME (RELEVEL) Menu
5. Scroll right and press Save.
6.8 BPS NC
The Brake Pick switch is set to normally closed. However, the Brake Pick switch may need to be
set where the switch may need to be bypassed.
Primary Brake – The switch may be bypassed when the car is in Construction Mode.
Secondary Brake – The secondary brake may be a rope gripper which in turn does not use a
Brake Pick switch.
The following instructions describe how to set the BPS to normally closed.
1. Navigate to MAIN MENU | SETUP | BRAKE SETUP. See Figure 56.
2. From the BRAKE SETUP menu, scroll and select Primary or Secondary Setup. See Figure
77.
3. From the BRAKE or SECONDARY BRAKE SETUP menu, scroll and select BPS NC.
Figure 99: (Primary) BRAKE SETUP Menu – BPS NC
Figure 100: SECONDARY BRAKE SETUP Menu – BPS NC
