2. From the DOORS menu, scroll and select Disable On HA.

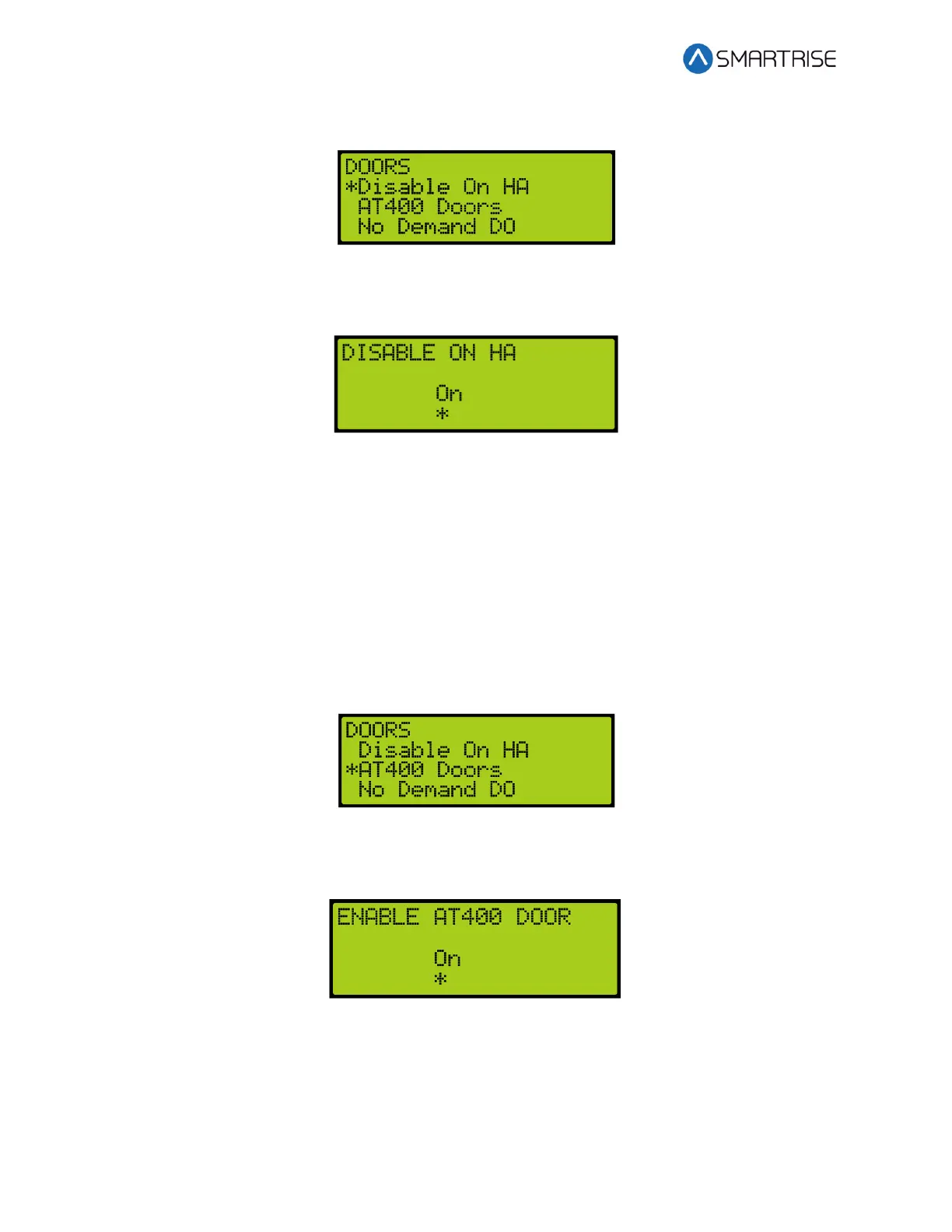

Figure 318: DOORS Menu – Disable On HA
3. From the DISABLE ON HA menu, scroll and select On to disable all door outputs.
Figure 319: DISABLE ON HA Menu
4. Scroll right and press Save.
16.16 AT400 Doors
If job is configured with an AT400 door operator, this option needs to be enabled.
The following procedure describes how to enable AT400 interface.
1. Navigate to MAIN MENU | SETUP | DOOR SETUP. See Figure 55.
2. From the DOORS menu, scroll and select AT400 Doors.
Figure 320: DOORS Menu – AT400 Doors
3. From the ENABLE AT400 DOOR menu, scroll and select On.
Figure 321: ENABLE AT400 DOOR Menu
4. Scroll right and press Save.
