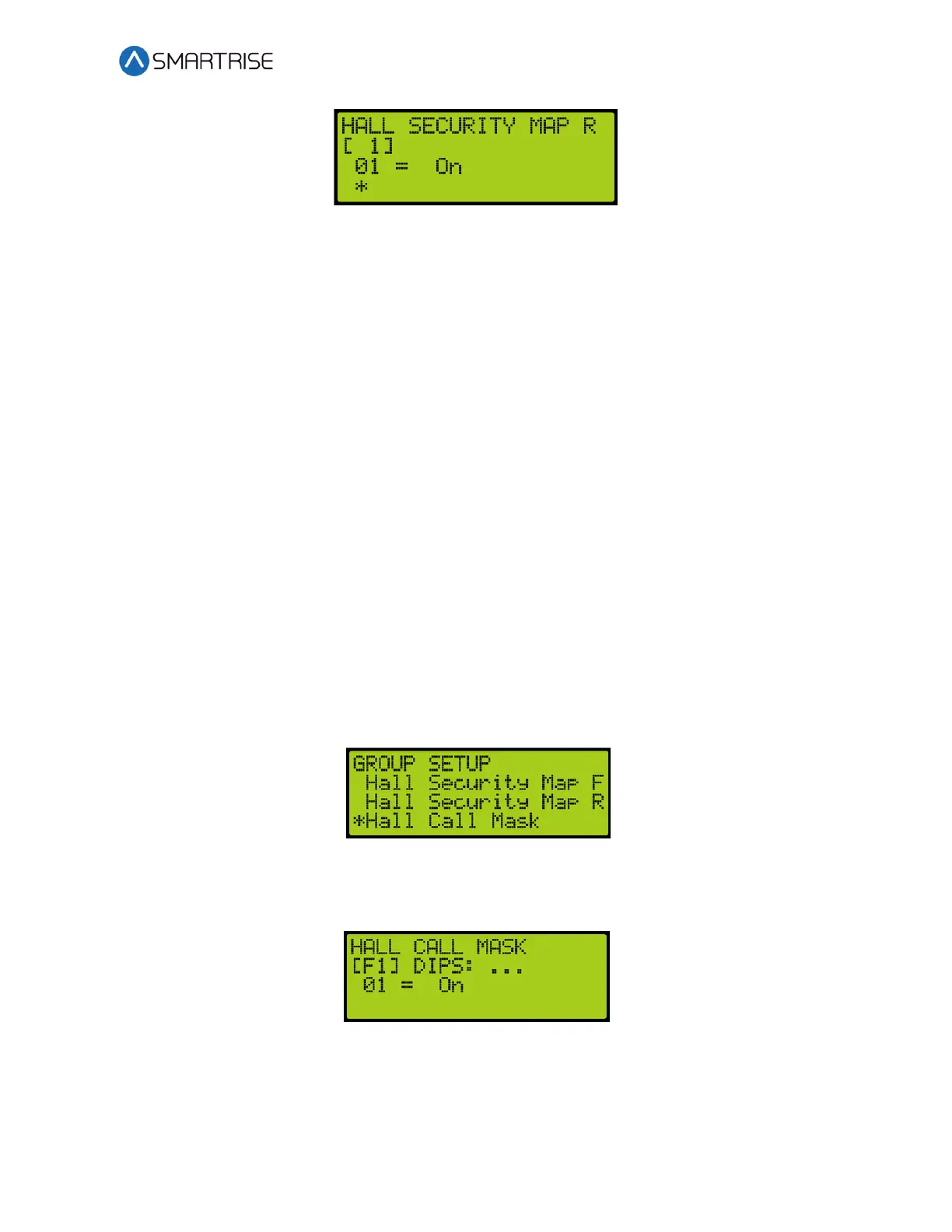

Figure 377: HALL SECURITY MAP REAR Menu
4. Scroll right and press Save.
18.6 Hall Security Status
The Hall Security status displays the status of the hall call security hall boards.
The following procedure describes how to view the Hall Security status.
1. Navigate to MAIN MENU | STATUS | HALL SECURITY STATUS. See Figure 47.
2. From the Hall Security menu, scroll up or down to view the floors that are set for hall
security. See Figure 369.
18.7 Hall Call Mask
Hall call mask must be set to enable regular hall calls for a car. The hall call mask setting is
located under address 08-0209 – 08-0212. The value for the address varies depending on the
Function IDs of the Hall board installed. For the list of parameters, see the C4 Parameter List.
The following procedure describes how to set hall call mask.
1. Navigate to MAIN MENU | SETUP | GROUP SETUP. See Figure 60.
2. From the GROUP SETUP menu, scroll and select Hall Call Mask.
Figure 378: GROUP SETUP Menu – Hall Call Mask
3. From the HALL CALL MASK menu, scroll and select if the function is enabled.
Figure 379: HALL CALL MASK Menu
4. Scroll right and press Save.
