C4 User Manual
October 25, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 345
• Dir – The controller to know which direction the request is made for (DN for Down, UP
for Up).
• Mask Value – The mask of the function the user wants. For example, by default all jobs
use a mask value of 1 for front hall calls. The user will change the mask value to 1 to
initiate a front hall call. When these three are set (Land, Dir, Mask), the user must press
the middle/enter button to send the information.
• Latched – Shows what mask value has been accepted into the dispatching.
40.4 Enter Door Command
The Enter Door Command allows the user to assert a Door Open, Door Close, or Nudge
commands from any of the MR, CT, or COP boards if the car is idle, unfaulted, and safe.
1. Navigate to MAIN MENU | DEBUG | ENTER DOOR COMMAND. See Figure 63.
2. From the Enter Door Command menu, the user can assert a command to either close,
open, or nudge a door.
NOTE: The display shows an option for front and rear doors when configured for rear
doors. If there are only front doors, then the display does not show an option for the
type of door.

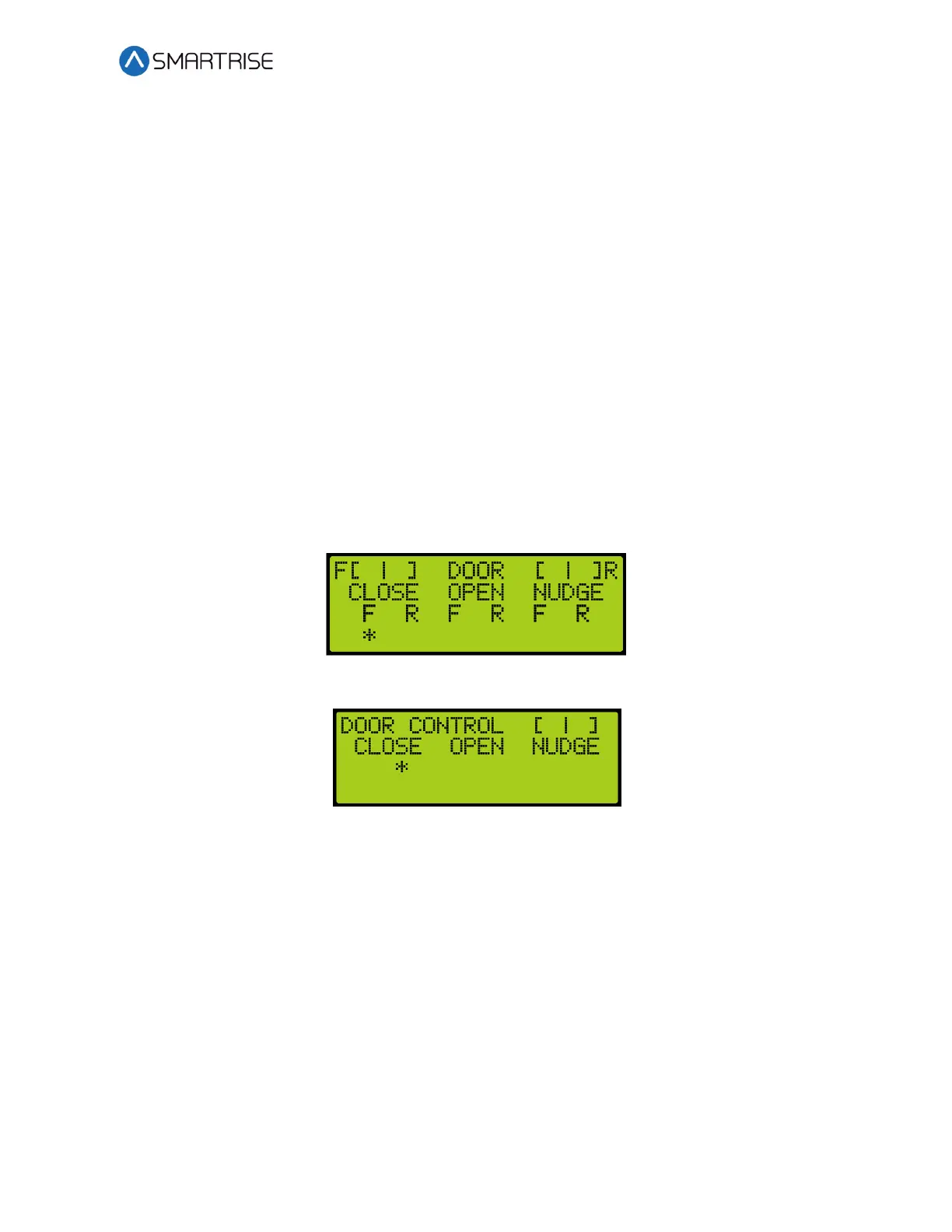

Figure 695: Enter Door Command Menu (Front and Rear Doors)
Figure 696: Enter Door Command Menu (Front Doors Only)
40.5 View Network Packet
The view network packet allows the user to view the raw data and receive counts of packets
sent between the MR, CT, and COP boards.
The following procedure describes how to view the network packet.
1. Navigate to MAIN MENU | DEBUG | VIEW NETWORK PACKET. See Figure 64.
