3. From the BRAKE SETUP menu, scroll and select Ramp Time – Inspection.

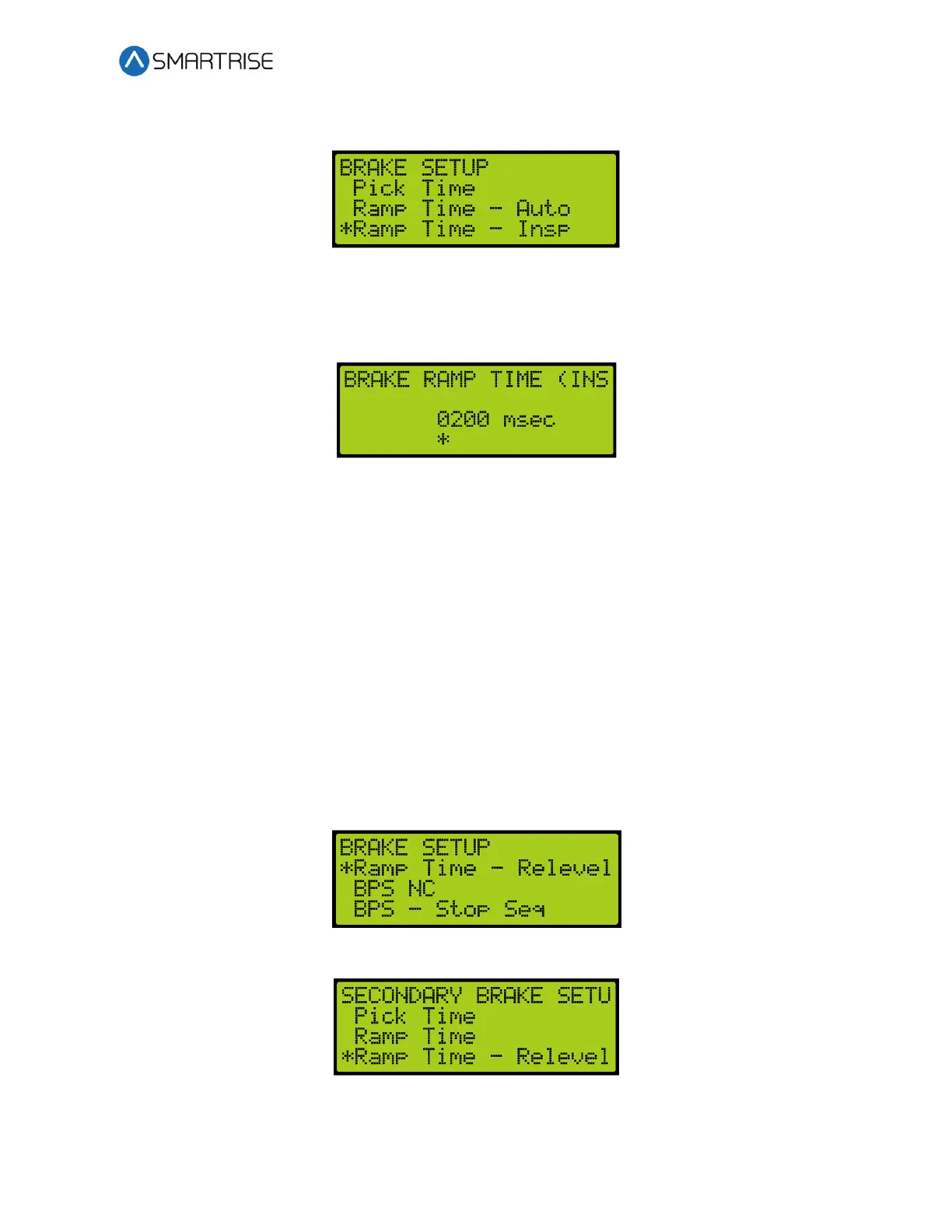

Figure 94: (Primary) BRAKE SETUP Menu – Ramp Time – Inspection
4. From the BRAKE RAMP TIME – (INSPECTION) menu, enter the time to fully release the
brakes during inspection.
Figure 95: BRAKE PICK TIME (INSPECTION) Menu
5. Scroll right and press Save.
6.7 Ramp Time-Relevel
The relevel ramp time is the time it takes for the brakes to ramp up to releveling voltage. The
delay prevents a sudden jerking motion and damage to the equipment.
The following procedure describes how to set the ramp time during releveling.
1. Navigate to MAIN MENU | SETUP | BRAKE SETUP. See Figure 56.
2. From the BRAKE SETUP menu, scroll and select Primary or Secondary Setup. See Figure
77.
3. From the BRAKE or SECONDARY BRAKE SETUP menu, scroll and select Ramp Time -
Relevel.
Figure 96: (Primary) BRAKE SETUP Menu – Ramp Time – Relevel
Figure 97: SECONDARY BRAKE SETUP Menu – Ramp Time – Relevel
