C4 User Manual
October 25, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 267
4. From the OFFSET menu, set the offset amount for the threshold.

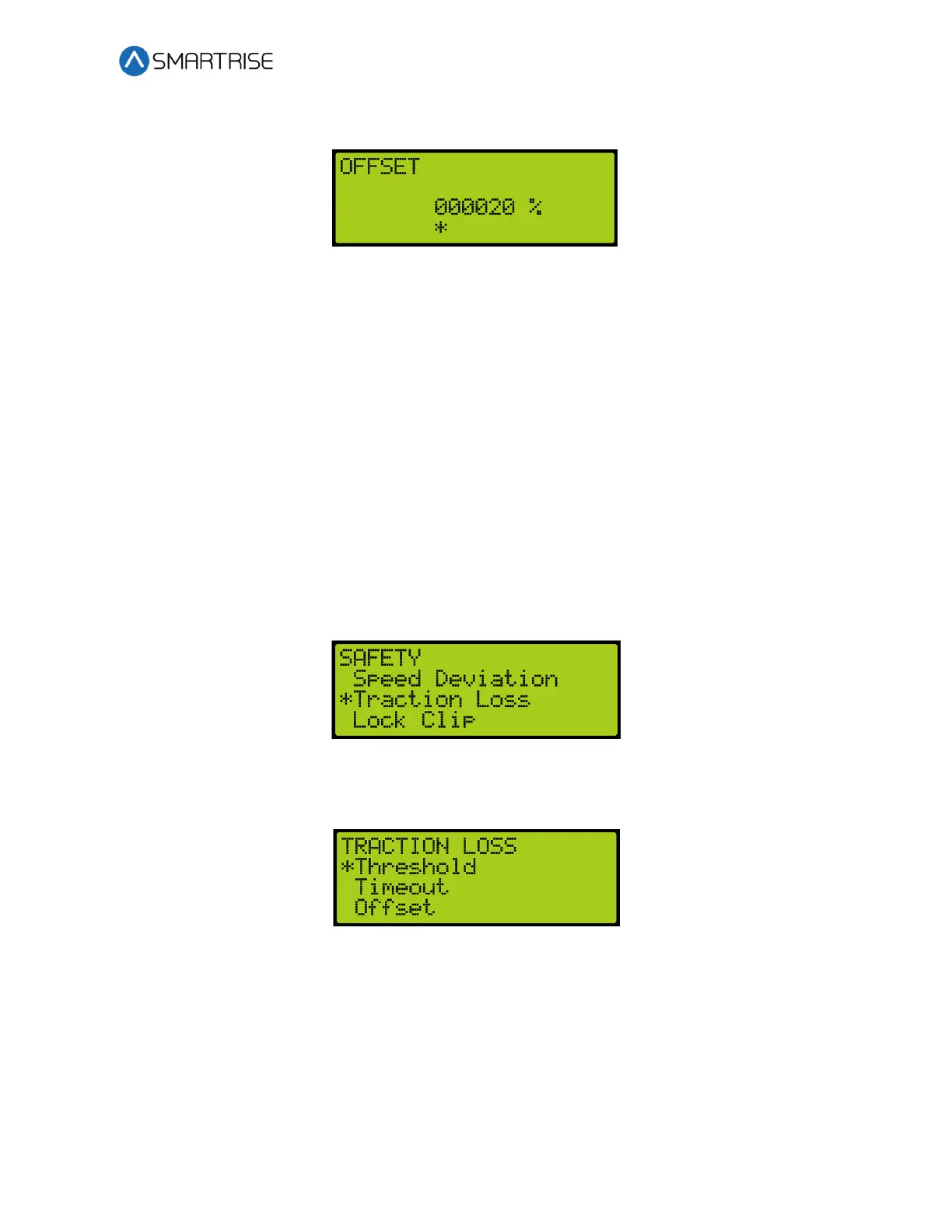

Figure 500: OFFSET Menu
5. Scroll right and press Save.
32.2 Traction Loss
Traction loss is used to detect the difference between the variation of the actual and expected
loss of traction of the car.
32.2.1 Threshold
A designated threshold is set between the detected and expected traction loss of the car.
The following is an example of setting up the traction loss threshold.
1. Navigate to MAIN MENU | SETUP | SAFETY. See Figure 54.
2. From the SAFETY menu, scroll and select Traction Loss.
Figure 501: SAFETY Menu – Traction Loss
3. From the TRACTION LOSS menu, scroll and select Threshold.
Figure 502: TRACTON LOSS Menu – Threshold
4. From the THRESHOLD menu, set the threshold distance. See Figure 496.
5. Scroll right and press Save.
