C4 User Manual
Page 196 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021
6. View the Front Security Map Status. Security Mask Front 1 (SMF1) represents hex value
for first 32 front openings that have security enabled. SMF2 represents the next 32 front
openings.

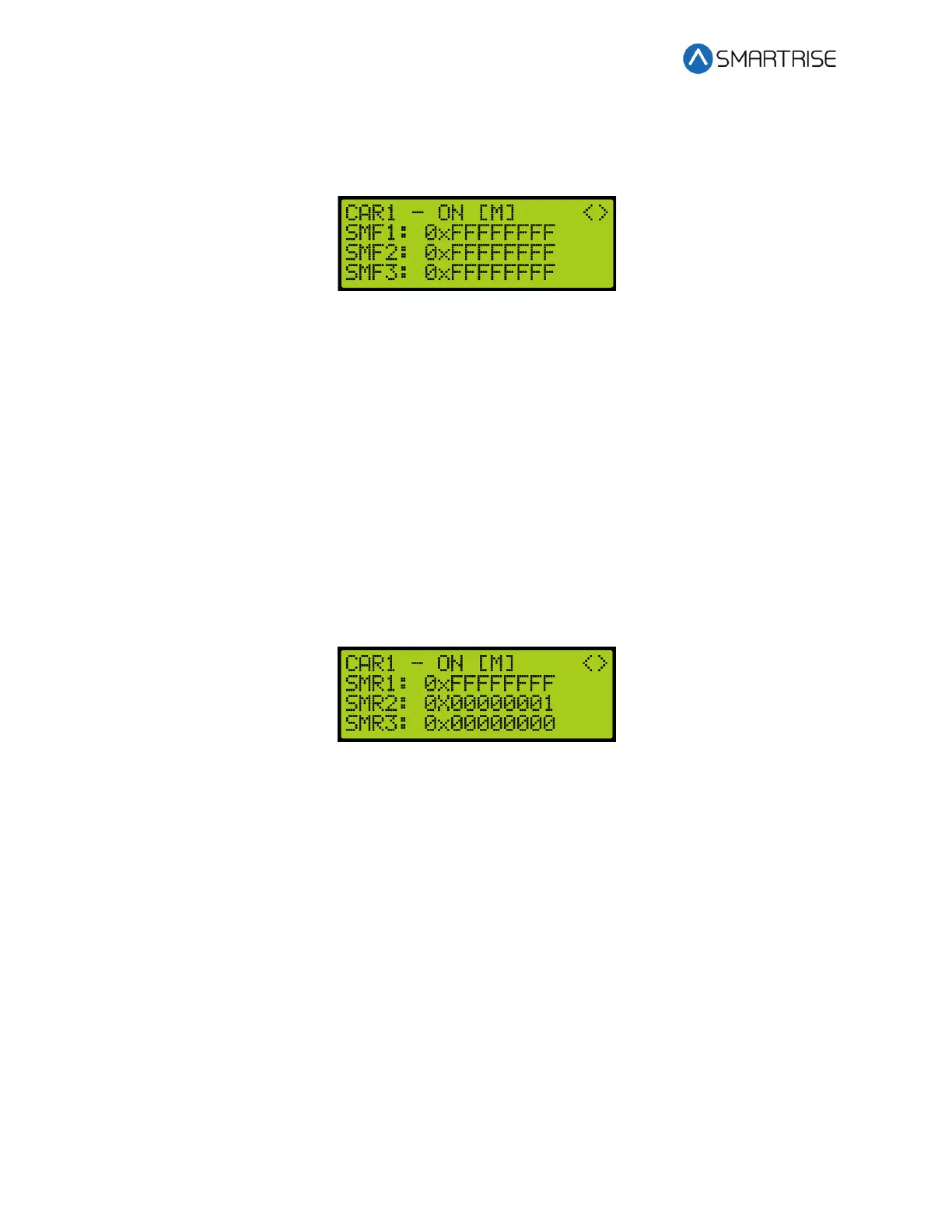

Figure 356: Front Security Map Status
17.4.2 Rear Security Map Status
The following procedure describes how to view the rear security map status.
1. Navigate to MAIN MENU | DEBUG | CAR DATA. See Figure 66.
2. From the Car Data Overview Status (see Figure 352), press the right button.
3. From the Hall Mask Status (see Figure 353), press the right button.
4. From the Front Opening Map Status (see Figure 354), press the right button.
5. From the Rear Opening Map Status (see Figure 355), press the right button.
6. From the Front Security Map Status (see Figure 356), press the right button.
7. View the Rear Security Map Status. Security Mask Rear 1 (SMR1) represents hex value
for first 32 rear openings that have security enabled. SMR2 represents the next 32 rear
openings.
Figure 357: Rear Security Map Status
17.5 Linked Hall Mask Status
The linked hall call masks are used to tie together the lamps of separate hall buttons. Each
paired mask must be set to the sum of the hall call masks for each of the paired boards. The
paired hall call parameters addresses are located at 08-0178 – 08-0181. For the list of
parameters, see the C4 Parameter List.
The following procedure describes how to view the linked hall mask status.
1. Navigate to MAIN MENU | DEBUG | CAR DATA. See Figure 66.
2. From the Car Data Overview Status (see Figure 352), press the right button.
3. From the Hall Mask Status (see Figure 353), press the right button.
4. From the Front Opening Map Status (see Figure 354), press the right button.
5. From the Rear Opening Map Status (see Figure 355), press the right button.
6. From the Front Security Map Status (see Figure 356), press the right button.
7. From the Rear Security Map Status (see Figure 357), press the right button.
