3. From the JUMPER TIMEOUT menu, set the time to verify there are no jumpers attached
to the GSW or door locks.

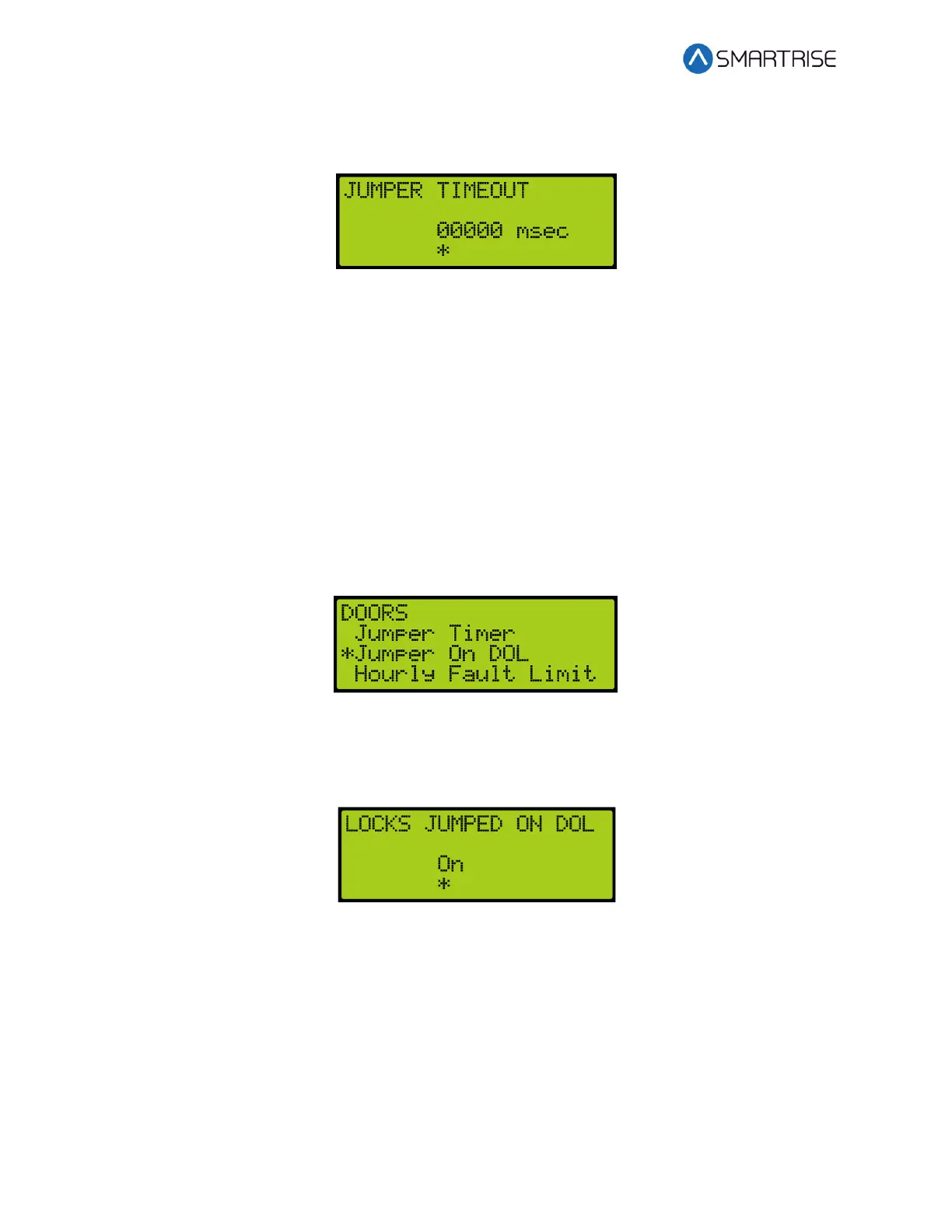

Figure 325: JUMPER TIMEOUT Menu
4. Scroll right and press Save.
16.19 Jumper on DOL
The door open limit (DOL) and GSW send signals to determine whether the door is open or
closed. When the Jumper on DOL is enabled, the controller detects a jumper on an open DOL
instead of the GSW.
The following procedure describes how to verify if there are jumpers on an open DOL.
1. Navigate to MAIN MENU | SETUP | DOOR SETUP. See Figure 55.
2. From the DOORS menu, scroll and select Jumper On DOL.
Figure 326: DOORS Menu – Jumper On DOL
3. From the LOCKS JUMPED ON DOL menu, scroll and select On to verify jumpers are
detected on the DOL.
Figure 327: LOCKS JUMPED ON DOL Menu
4. Scroll right and press Save.
16.20 Hourly Fault Limit
The hourly fault is the number of door faults allowed per hour prior to the car going out of
service. The car remains out of service until the hour window elapses.
