C4 User Manual
October 25, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 149
3. From the MINIMUM RELEVEL SPEED menu, set the speed.

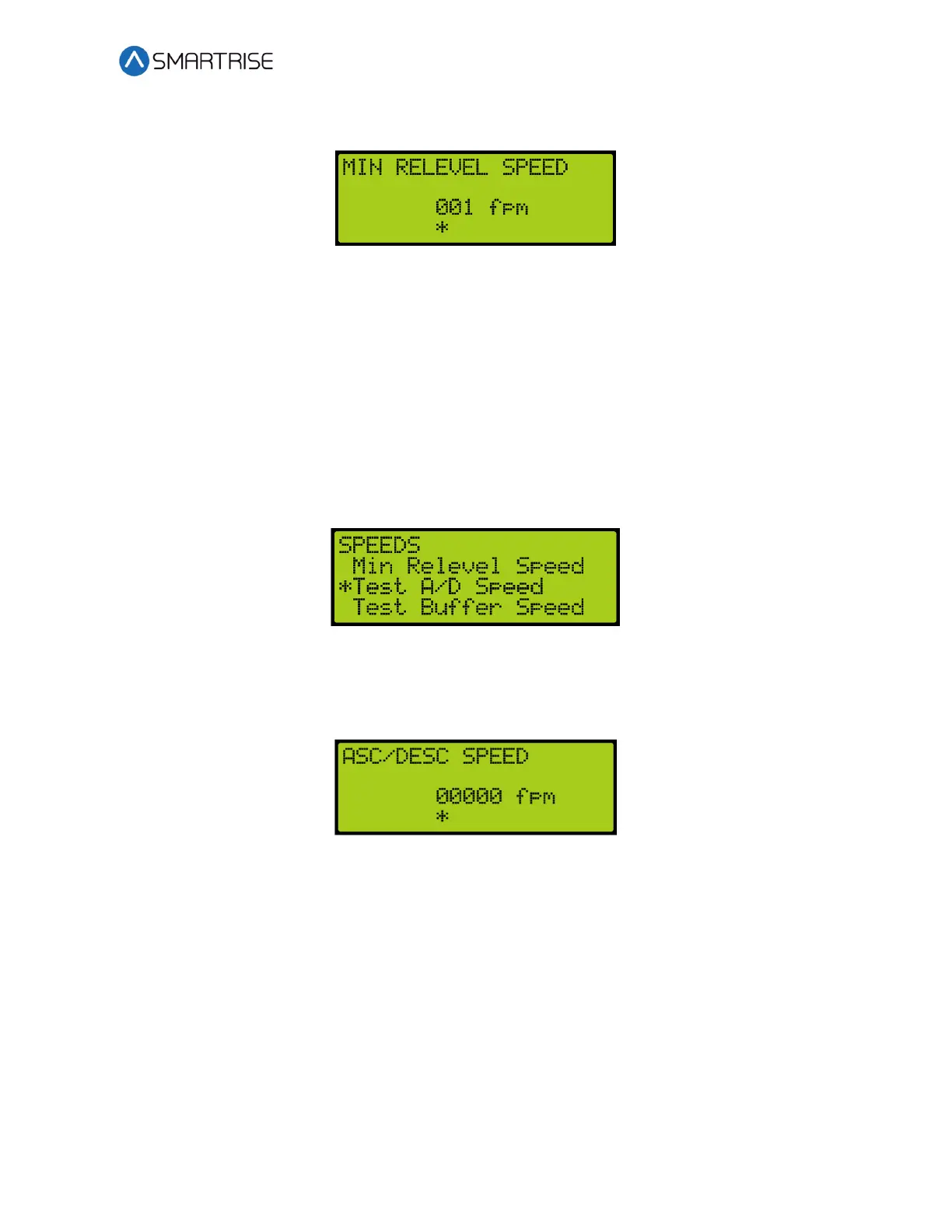

Figure 219: MINIMUM RELEVEL SPEED Menu
4. Scroll right and press Save.
13.9 Test A/D Speed
Test A/D speed is the set speed during an ascending or descending overspeed test.
The following procedure describe how to setup the A/D speed for an overspeed test.
1. Navigate to MAIN MENU | SETUP | SPEEDS. See Figure 55.
2. From the SPEEDS menu, scroll and select Test A/D Speed.
Figure 220: SPEEDS Menu – Test A/D Speed
3. From the ACCELERATION/DECELERATION SPEED menu, set the ascending and
descending speed.
Figure 221: ACCELERATION/DECELERATION SPEED Menu
4. Scroll right and press Save.
13.10 Test Buffer Speed
The test buffer speed is the set speed during buffer tests.
• If the speed is set equal to contract speed, the car will move at high speed.
• If the speed is anything else than contract speed, the car will move at leveling speed.
The following procedure describes how to set buffer speed for testing.
1. Navigate to MAIN MENU | SETUP | SPEEDS. See Figure 55.
