32.2.2 Timeout
A designated timer is set between the detected and expected traction loss of the car.
The following is an example of setting up the traction loss timeout.
1. Navigate to MAIN MENU | SETUP | SAFETY. See Figure 54.
2. From the SAFETY menu, scroll and select Traction Loss. See Figure 501.
3. From the TRACTION LOSS menu, scroll and select Timeout.

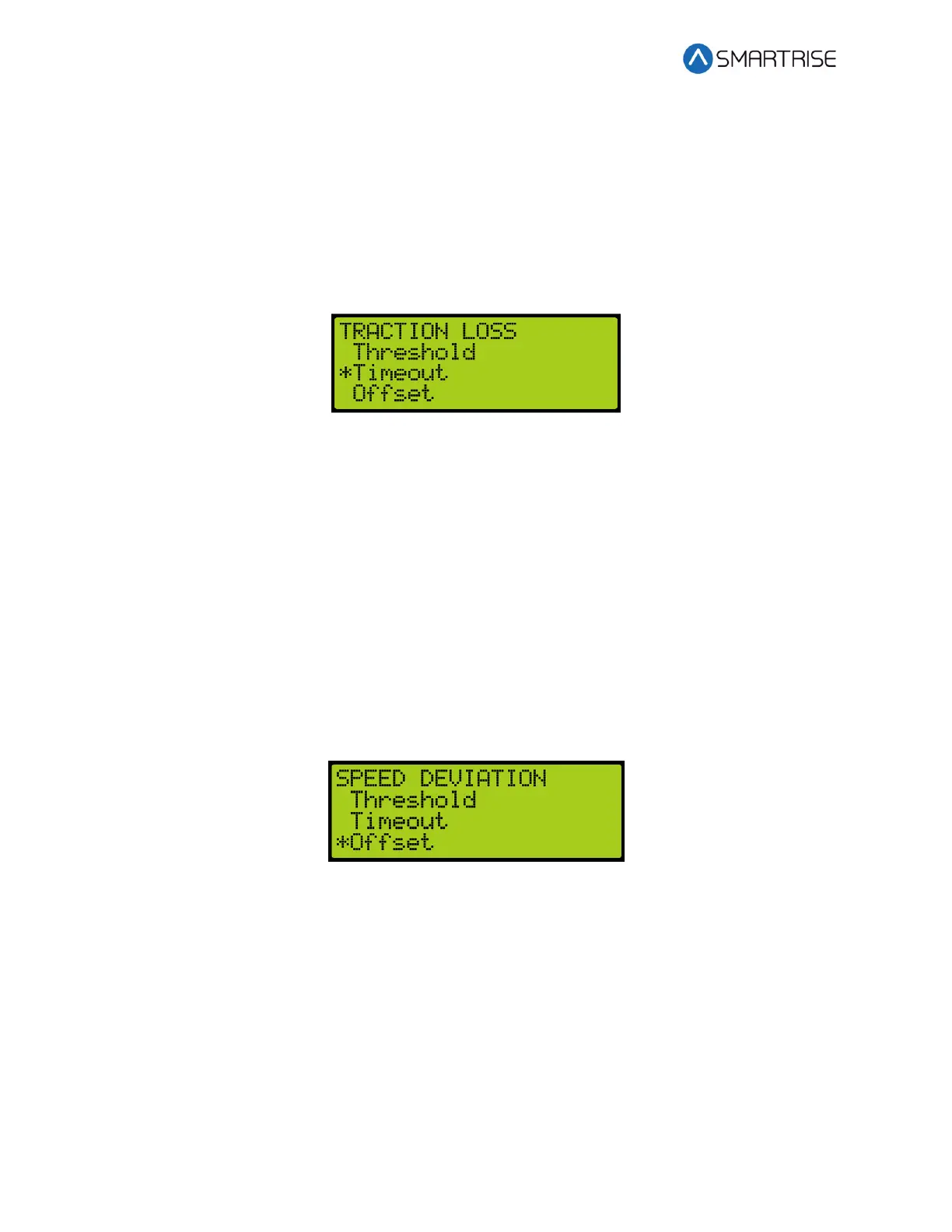

Figure 503: TRACTION LOSS Menu – Timeout
4. From the TIMEOUT menu, set the time of the threshold. See Figure 498.
5. Scroll right and press Save.
32.2.3 Offset
A designated offset is set between the detected and expected percentage of the traction loss of
the car.
The following is an example of setting up the traction loss offset.
1. Navigate to MAIN MENU | SETUP | SAFETY. See Figure 54.
2. From the SAFETY menu, scroll and select Traction Loss. See Figure 501.
3. From the TRACTION LOSS menu, scroll and select Offset.
Figure 504: TRACTION LOSS Menu – Offset
4. From the OFFSET menu, enter the offset amount for the threshold. See Figure 500.
5. Scroll right and press Save.
32.3 Lock Clip
Lock clip time is the amount of time the controller disregards an open hall lock. This prevents
intermittent interlock faults.
The following is an example of setting up lock clip.
1. Navigate to MAIN MENU | SETUP | SAFETY. See Figure 54.
