16.28 Swing Lock GSW Timeout
Sets the timeout between GSW and locks. If the value is zero, the timeout is set to 500 ms.
The following procedure describes how to set the timeout for the Swing Lock Gate switch.
1. Navigate to MAIN MENU | SETUP | DOOR SETUP. See Figure 55.
2. From the DOORS menu, scroll and select SWING LOCK GSW TIMEOUT.

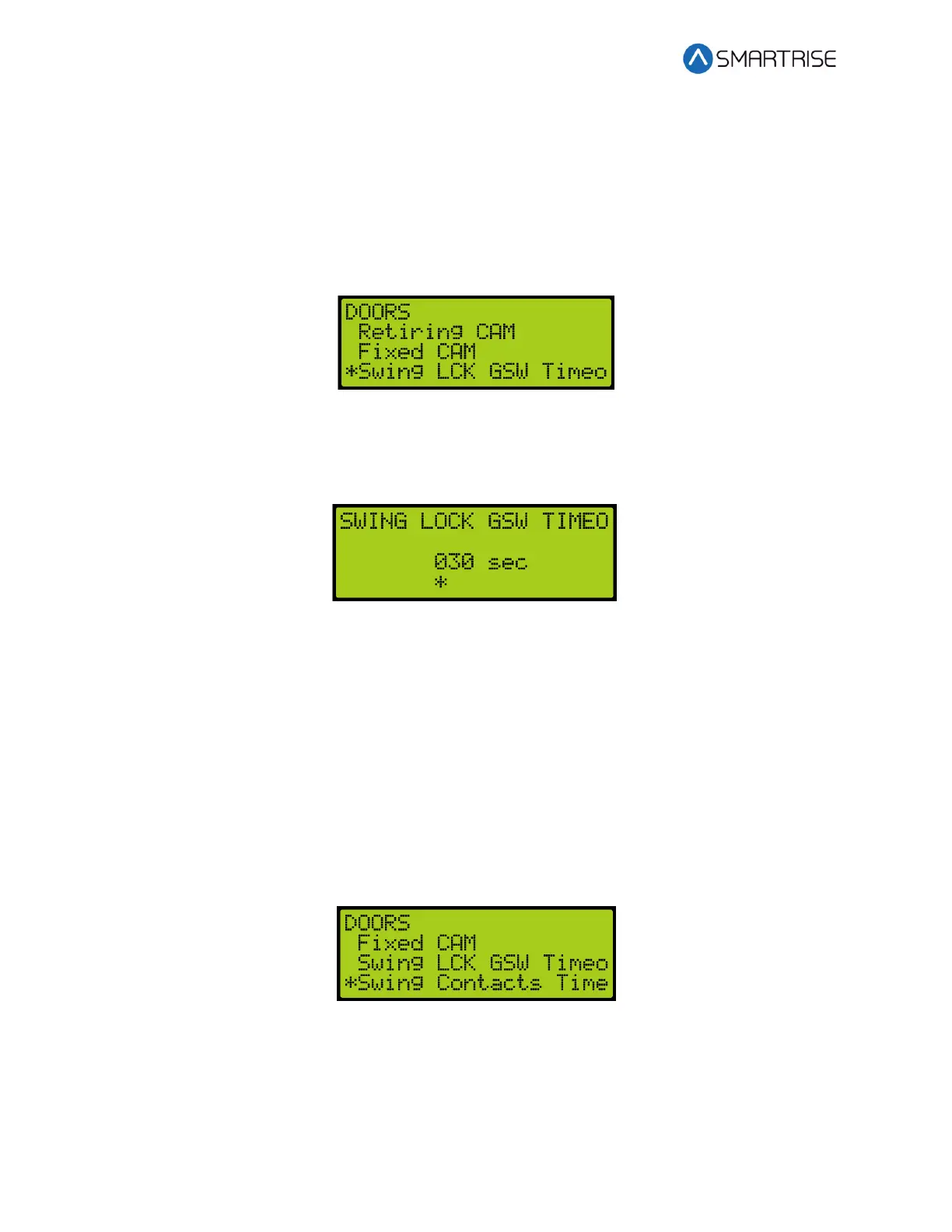

Figure 344: DOORS Menu – Swing Lock GSW Timeout
3. From the SWING LOCK GSW TIMEOUT menu, set the amount of time for the Swing Lock
Gate switch will timeout.
Figure 345: SWING LOCK GSW TIMEOUT Menu
4. Scroll right and press Save.
16.29 Swing Contacts Timeout
Sets the timeout between CAM being energized and closed contacts being made. If value is
zero, timeout is set to 500 ms.
The following procedure describes how to set the timeout for swing contacts.
1. Navigate to MAIN MENU | SETUP | DOOR SETUP. See Figure 55.
2. From the DOORS menu, scroll and select Swing Contacts Timeout.
Figure 346: DOORS Menu – Swing Contacts Timeout
