C4 User Manual
Page 258 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021
29.17.7 Default Other
The user has the option of defaulting other parameters within the system back to the original
factory settings.
The following procedure describes how to default other parameters.
1. Navigate to MAIN MENU | SETUP | MISCELLANEOUS. See Figure 58.
2. From the MISCELLANEOUS menu, scroll and select Default. See Figure 460.
3. From the DEFAULT menu, scroll and select Default Other.

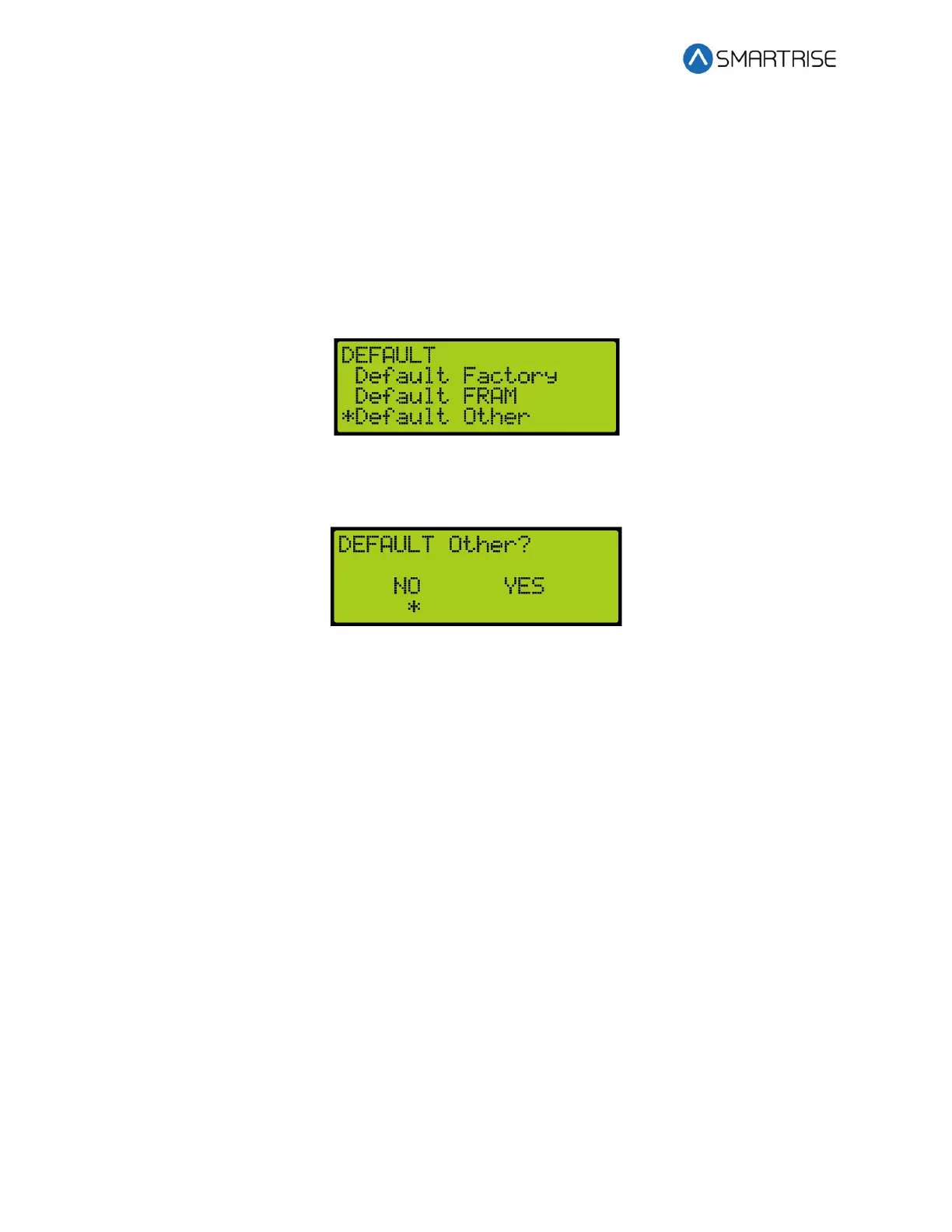

Figure 475: DEFAULT Menu – Default Other
4. From the DEFAULT Other? menu, scroll and select if defaulting other settings.
Figure 476: DEFAULT Other? Menu
5. From the DEFAULT OTHER? menu, select Yes to default other.
NOTE: If not defaulting other, select NO to back out.
The system automatically defaults all parameters. See Figure 463.
6. When the system has completed defaulting all parameters, the DEFAULTING PARAMS
menu displays Parameters Defaulted. See Figure 464.
