33.3.4.2 Flash Fire Hat
If the fire flash hat been enabled during alternate smoke, a fire hat symbol on the panel flashes
when smoke has been detected.
The following procedure describes how to enable the flash fire hat.
1. Navigate to MAIN MENU | SETUP | FIRE. See Figure 57.
2. From the FIRE SERVICE menu, scroll and select Alt Smoke. See Figure 563.
3. From the ALT SMOKE menu, scroll and select Flash Fire Hat.

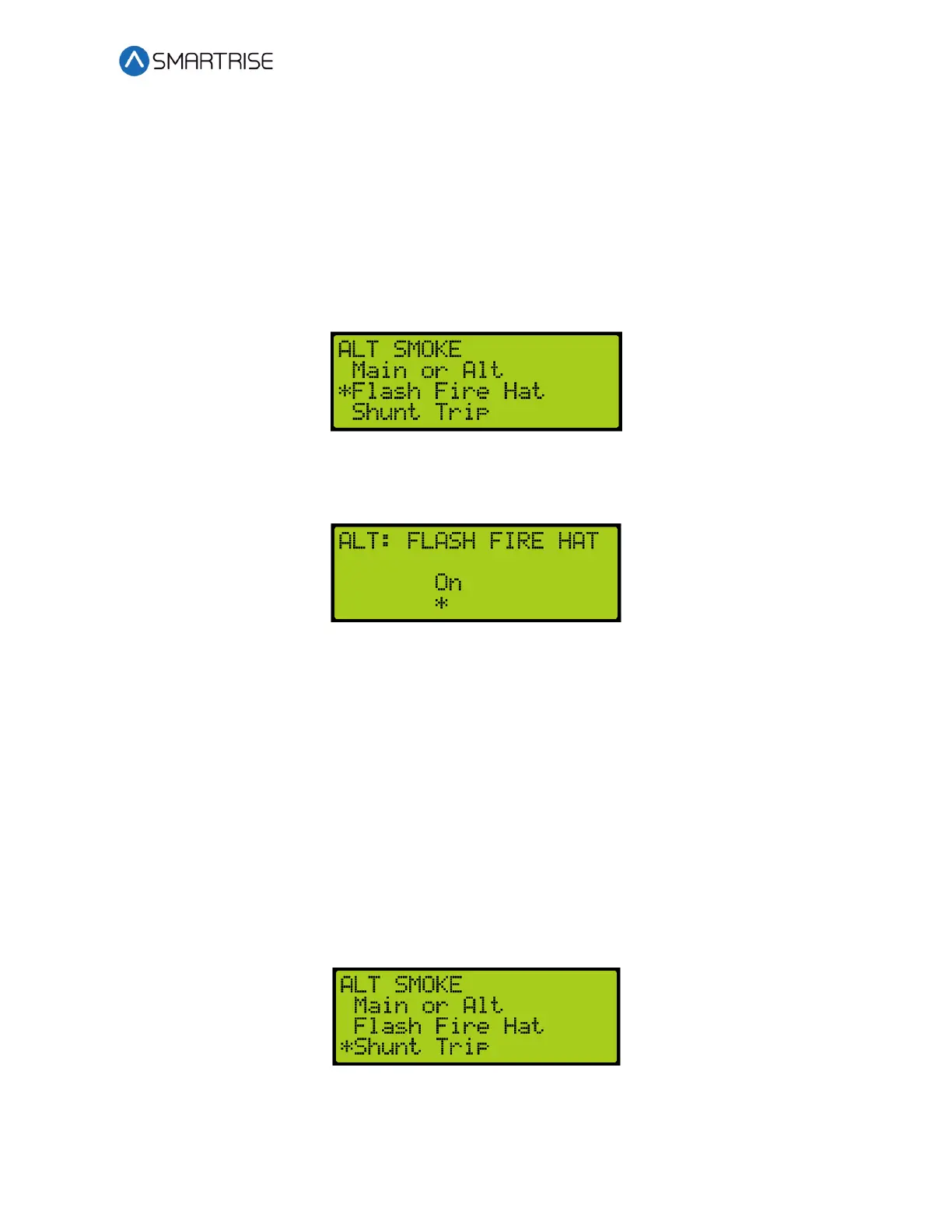

Figure 566: ALT SMOKE Menu – Flash Fire Hat
4. From the ALT: FLASH FIRE HAT menu, scroll and select On.
Figure 567: ALT: FLASH FIRE HAT Menu
5. Scroll right and press Save.
33.3.4.3 Shunt Trip
A shunt output is designed to trip a breaker shutting off the main power to the controller in
case of a fire in the main lobby.
The following procedure describes how to set up the parameters in case smoke is detected in
the main lobby.
1. Navigate to MAIN MENU | SETUP | FIRE. See Figure 57.
2. From the FIRE SERVICE menu, scroll and select Alt Smoke. See Figure 563.
3. From the ALT SMOKE menu, scroll and select Shunt Trip.
Figure 568: ALT SMOKE Menu – Shunt Trip
