12. From the TOP OPENING menu, scroll and select the top floor the car opens just below
the hoistway.

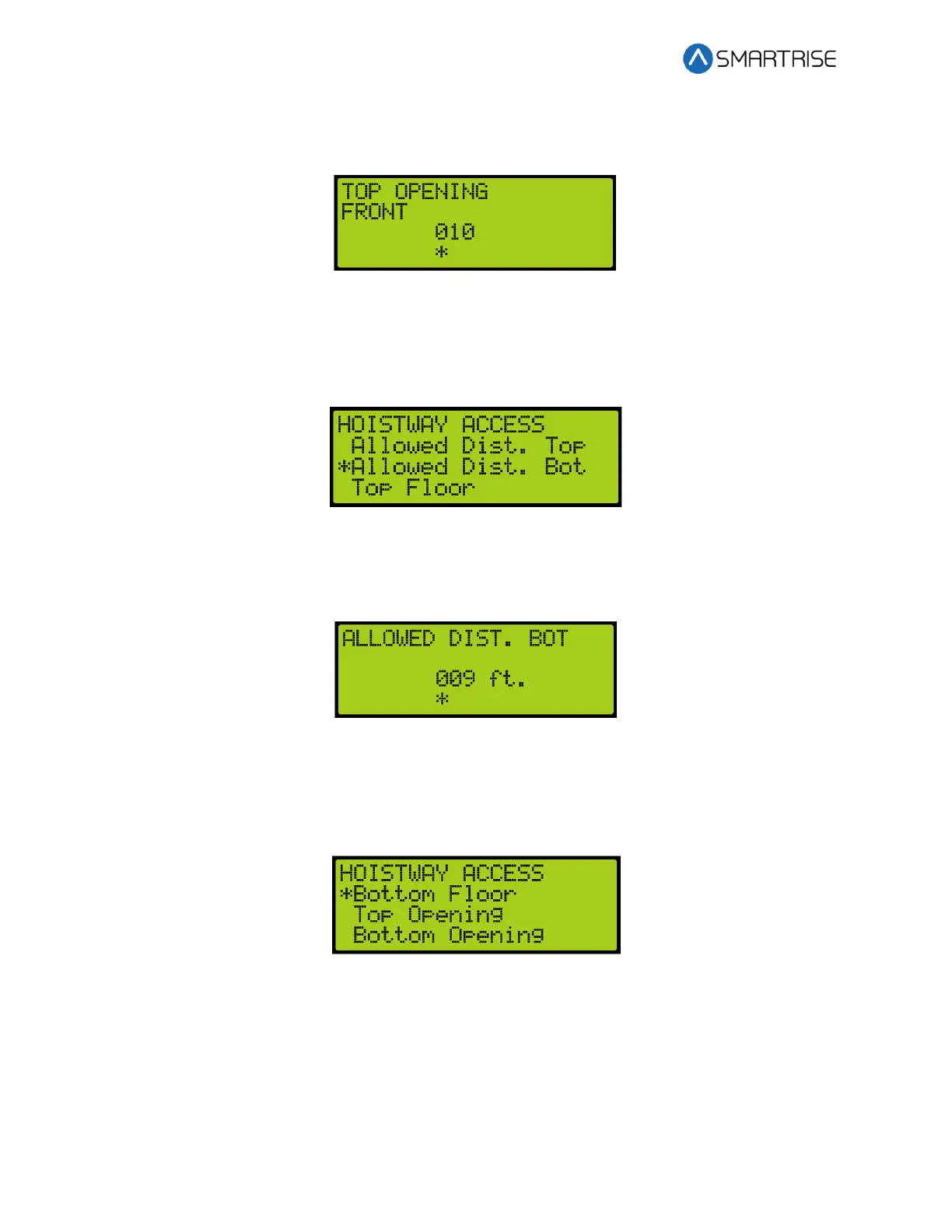

Figure 402: TOP OPENING Menu
13. Scroll right and press Save.
14. Press the left button until the HOISTWAY ACCESS menu displays.
15. From the HOISTWAY ACCESS menu, scroll and select Allowed Distance Bottom.
Figure 403: HOISTWAY ACCESS – Allowed Distance Bottom
16. From the ALLOWED DISTANCE – BOTTOM menu, scroll and select the distance from the
car to the pit.
Figure 404: ALLOWED DISTANCE – BOTTOM Menu
17. Scroll right and press Save.
18. Press the left button until the HOISTWAY ACCESS menu displays.
19. From the HOISTWAY ACCESS menu, scroll and select Bottom Floor.
Figure 405: HOISTWAY ACCESS – Bottom Floor
