4. From ALT: SHUNT ON RECALL menu, scroll and select On.

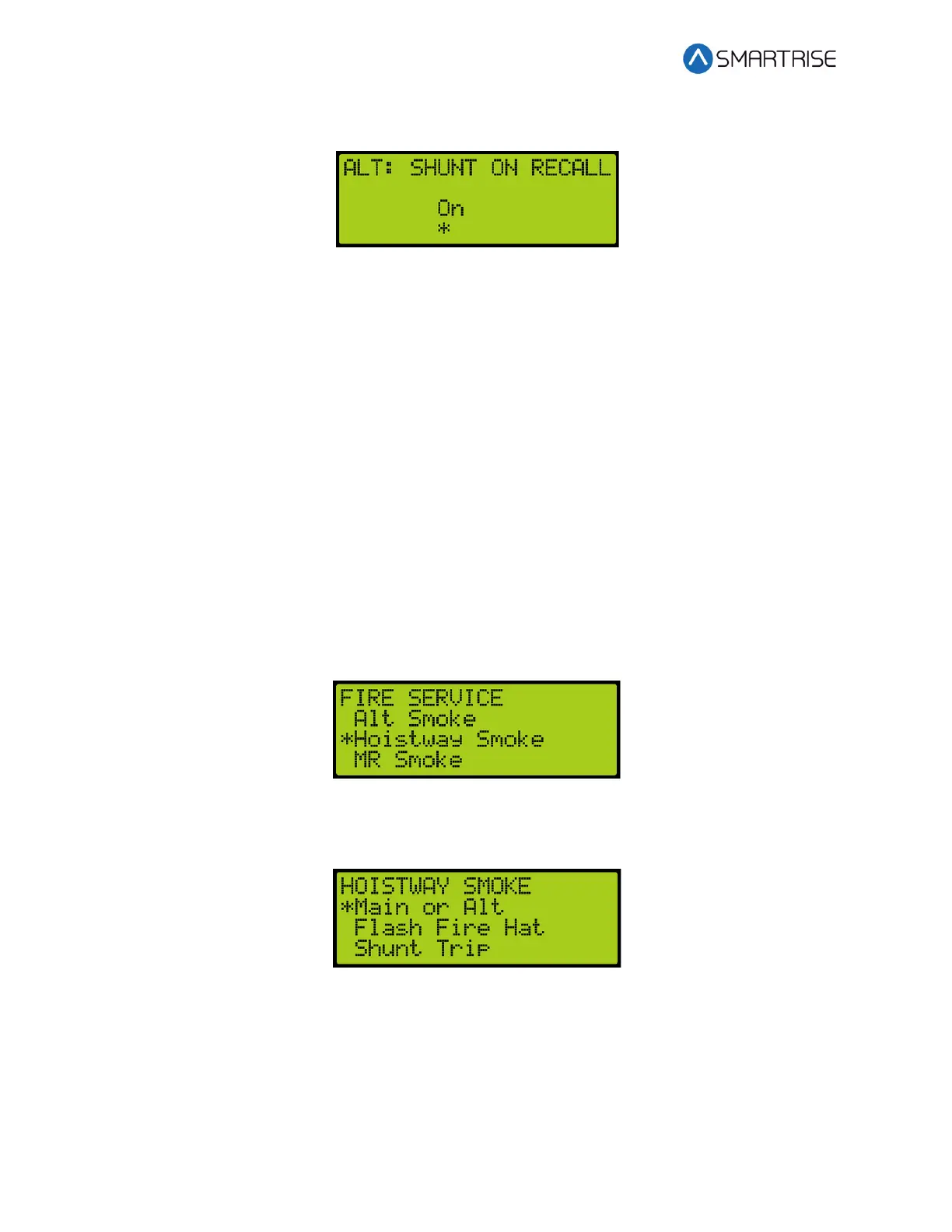

Figure 569: ALT: SHUNT ON RECALL Menu
5. Scroll right and press Save.
33.3.5 Hoistway Smoke
The hoistway smoke is where the car is recalled to a designated landing when smoke has been
detected in the hoistway.
33.3.5.1 Main or Alternate
The car travels to the main landing when smoke has been detected. If configured and the
smoke is on that floor, the car travels to an alternated landing.
The following procedure describes if the car travels to the main or alternate designated landing
when smoke has been detected.
1. Navigate to MAIN MENU | SETUP | FIRE. See Figure 57.
2. From the FIRE SERVICE menu, scroll and select Hoistway Smoke.
Figure 570: FIRE SERVICE Menu – Hoistway Smoke
3. From the HOISTWAY SMOKE menu, scroll and select Main or Alt.
Figure 571: HOISTWAY SMOKE Menu – Main or Alt
