34 Status
The status of each functionality can be viewed to determine which functions are active.
34.1 Input Status
The Input status displays the status for the configured inputs to the MR board.
The following procedure describes how to view the status of the inputs.
1. Navigate to MAIN MENU | STATUS | INPUTS. See Figure 45.
2. From the INPUTS BY FUNCTION menu, scroll and select the type of input.

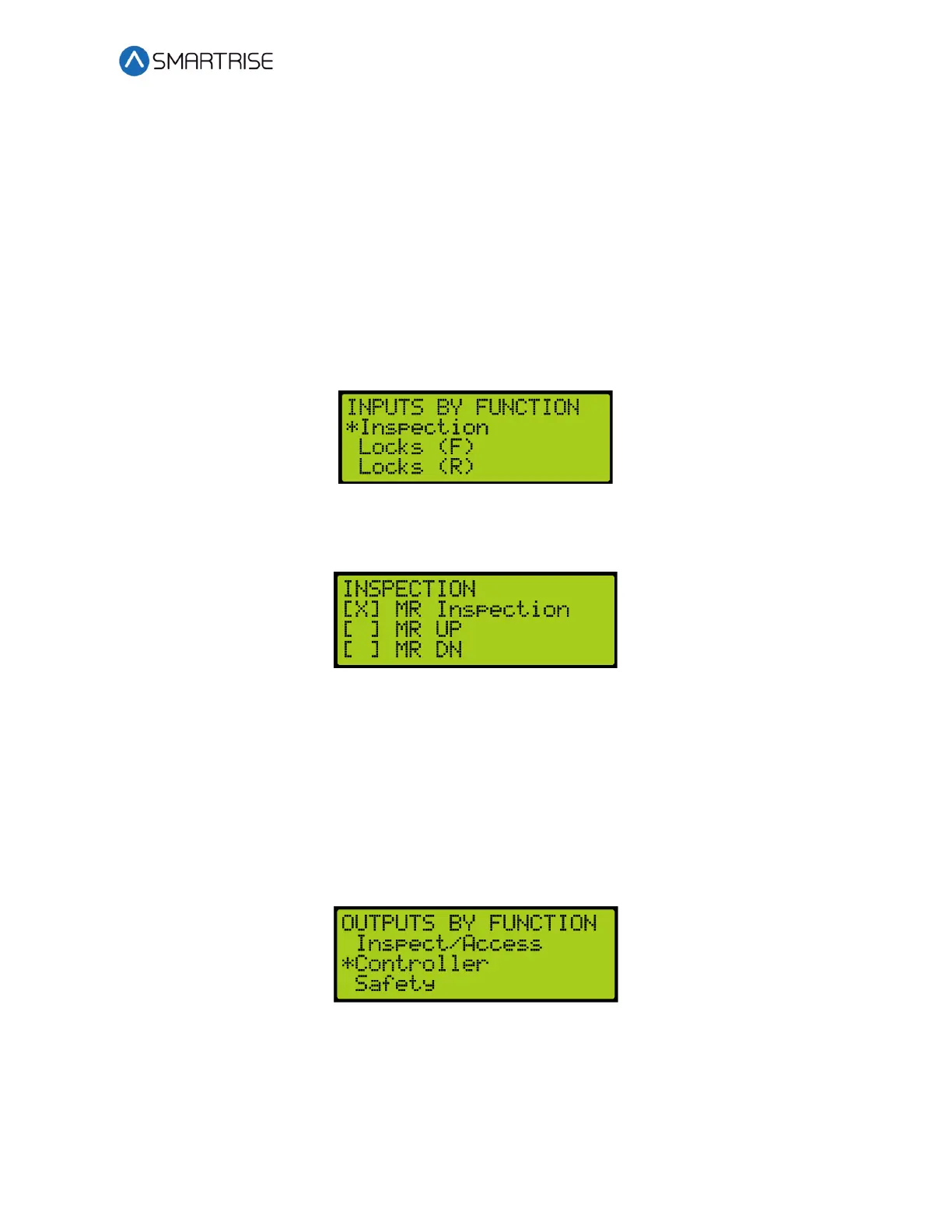

Figure 625: INPUTS BY FUNCTION Menu –Inspection
3. From the INSPECTION menu, view the status of the configured input.
Figure 626: INSPECTION Menu
34.2 Output Status
The Output status displays the status for the configured outputs from the MR board.
The following procedure describes how to view the status of the inputs.
1. Navigate to MAIN MENU | STATUS | OUTPUTS. See Figure 45.
2. From the OUTPUTS BY FUNCTION menu, scroll and select the type of output.
Figure 627: OUPTUS BY FUNCTION Menu –Controller
