19. From the WEEKEND STOP TIME menu, set the stop time of the hall call security. See
Figure 261.
20. Scroll right and press Save.
15 Sabbath Operation
There are two ways to initiate Sabbath operation:
• Turn on a key that is configured to an input.
• The clock on the controller reaches the Sabbath start time on Friday.
Once in Sabbath operation, the car goes to each door that has a valid Sabbath opening and skip
those without a valid Sabbath opening. Sabbath operation has a separate door dwell timer. The
door remains open based on the Sabbath timer and not the original door dwell timer. The car
exits Sabbath operation if the Sabbath key is turned off or once the controller clock reaches the
Sabbath end time on Saturday. For the list of parameters, see the C4 Parameter List.
The following procedure describes how to set the Sabbath operation.
1. Navigate to MAIN MENU | SETUP. See Figure 44.
2. Is the Sabbath operation being setup by Key Enable Only, Timer Enable Only, or Key 0r
Timer Enable?
a. If the Sabbath operation is being set by Key Enable Only, go to step 3.
b. If the Sabbath operation is being set by Timer Enable Only, go to step 35.
c. If the Sabbath operation is being set by Key or Timer Enable, go to step 51.
3. Navigate to SETUP | SETUP I/O. See Figure 54.
4. From the SETUP I/O menu, scroll and select Setup Inputs.

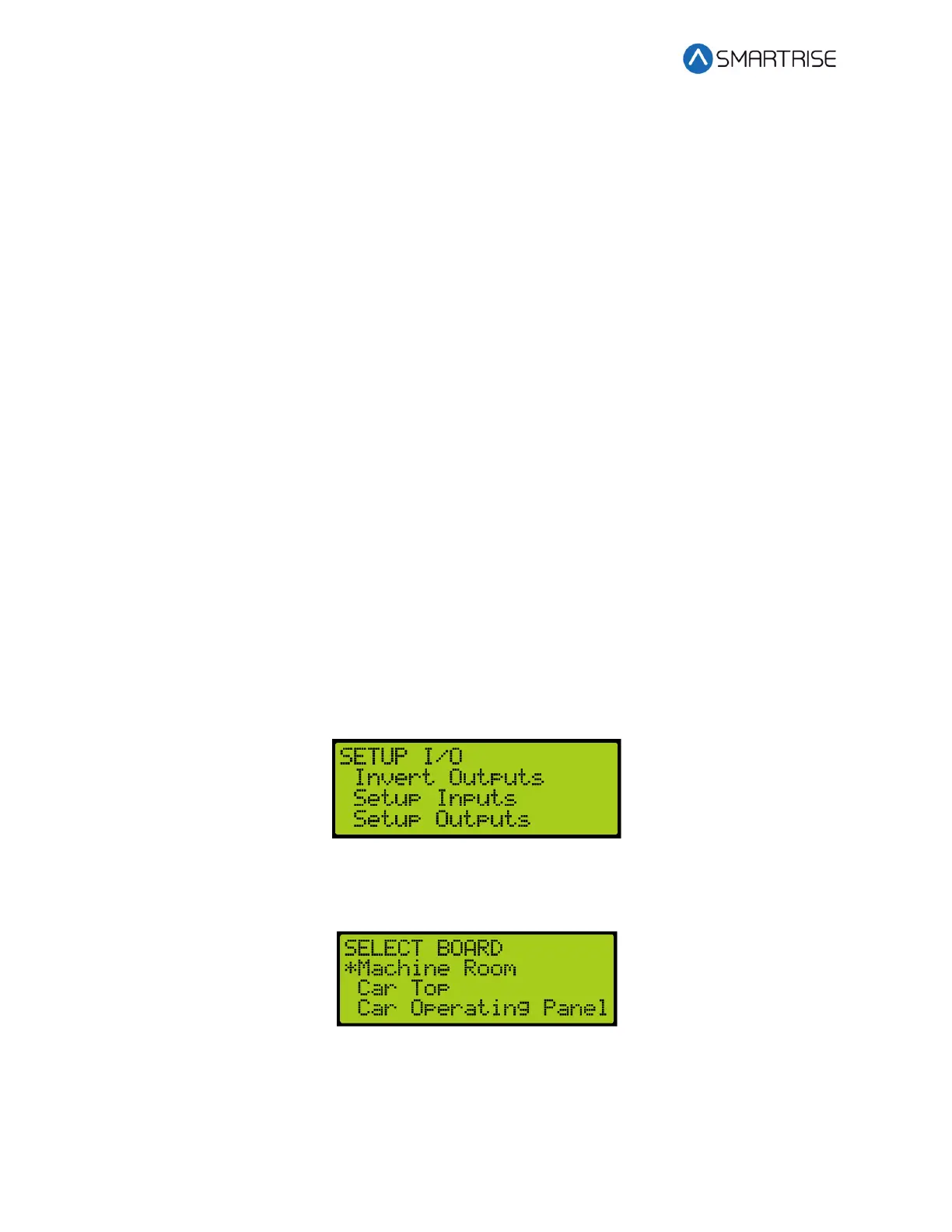

Figure 268: SETUP I/O Menu – Setup Inputs
5. From the SELECT BOARD menu, scroll and select the board the Sabbath key is wired to.
Figure 269: SELECT BOARD Menu – Machine Room
