C4 User Manual
Page 234 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021
3. Install and replace the CT or COP board and reattach the connector terminals.
NOTE: Ensure all DIP switches are correct.
4. Turn the CT/COP switch to either the CT or COP that is being replaced.
NOTE: The switch is located on the upper right corner of the board.
5. Power up the controller.
6. The Sync Process automatically begins due to a checksum that consistently compares
parameters between all three boards.
NOTE: There is no SYN IN PROGRESS displayed.
7. When complete, the CT/COP board is in normal operation with all parameters retained.
27 Manual Traction Rescue
The rescue operation safely and securely moves the car to the nearest floor and allow the
passengers to exit if the car ever loses power.
The Smartrise C4 Controller uses two forms of rescue:
• Auto Rescue – The Auto Rescue is ON and has been implemented into the system (Auto
Rescue Operation is an option on the Engineering Data Form). The car automatically
moves in the direction of least resistance determined by the system. It moves at leveling
speed and stops at the nearest opening.
• Manual Rescue – If Auto Rescue is OFF, the car remains faulted until Manual Rescue is
initiated.
28 Hoistway Access
The hoistway access safely and securely moves the car at the terminal landings to gain access to
either the pit or the top of the hoistway. Normally, this is done with a key switch that enables
the top or bottom access inputs on the controller. The car will only move if the doors are open.
The following procedure describes how to access the hoistway.
1. Navigate to MAIN MENU | SETUP | HOISTWAY ACCESS. See Figure 57.
2. Is the hoistway being accessed from the top of the hoistway or the pit?
a. If the hoistway is being accessed from the top of the hoistway, go to step 3.
b. If the hoistway is being accessed from the bottom of the hoistway, go to step 14.
3. From the HOISTWAY ACCESS menu, scroll and select Allowed Distance Top.

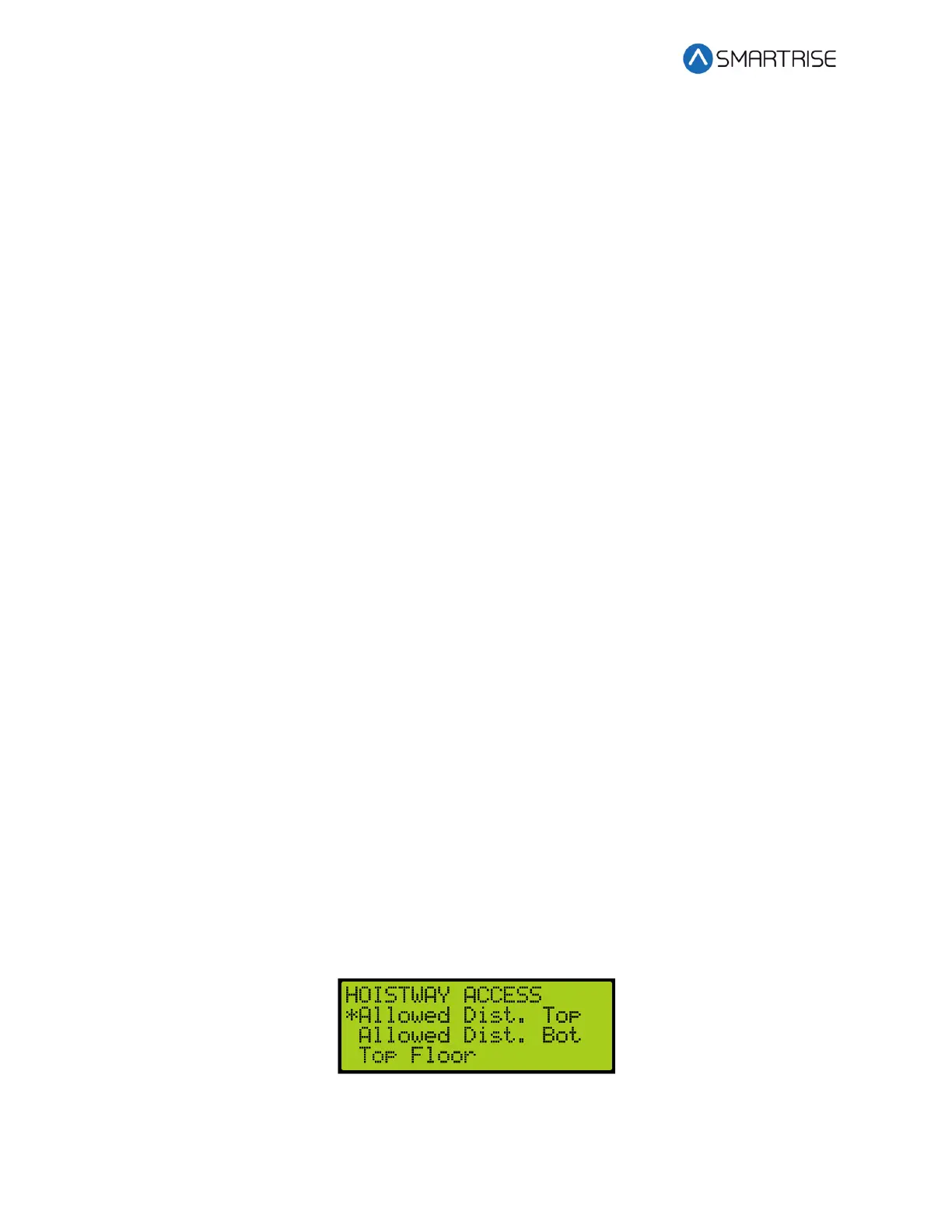

Figure 397: HOISTWAY ACCESS – Allowed Distance Top
To Next Page
