9.4 Short Run Minimum Distance
The short run minimum distance sets the distance below where short run profiles are used
instead of normal profiles.
The following procedures describe how to set the minimum distance during a short run.
1. Navigate to MAIN MENU | SETUP | S-CURVE. See Figure 55.
2. From the S-CURVE menu, scroll and select Short Run Minimum Distance.

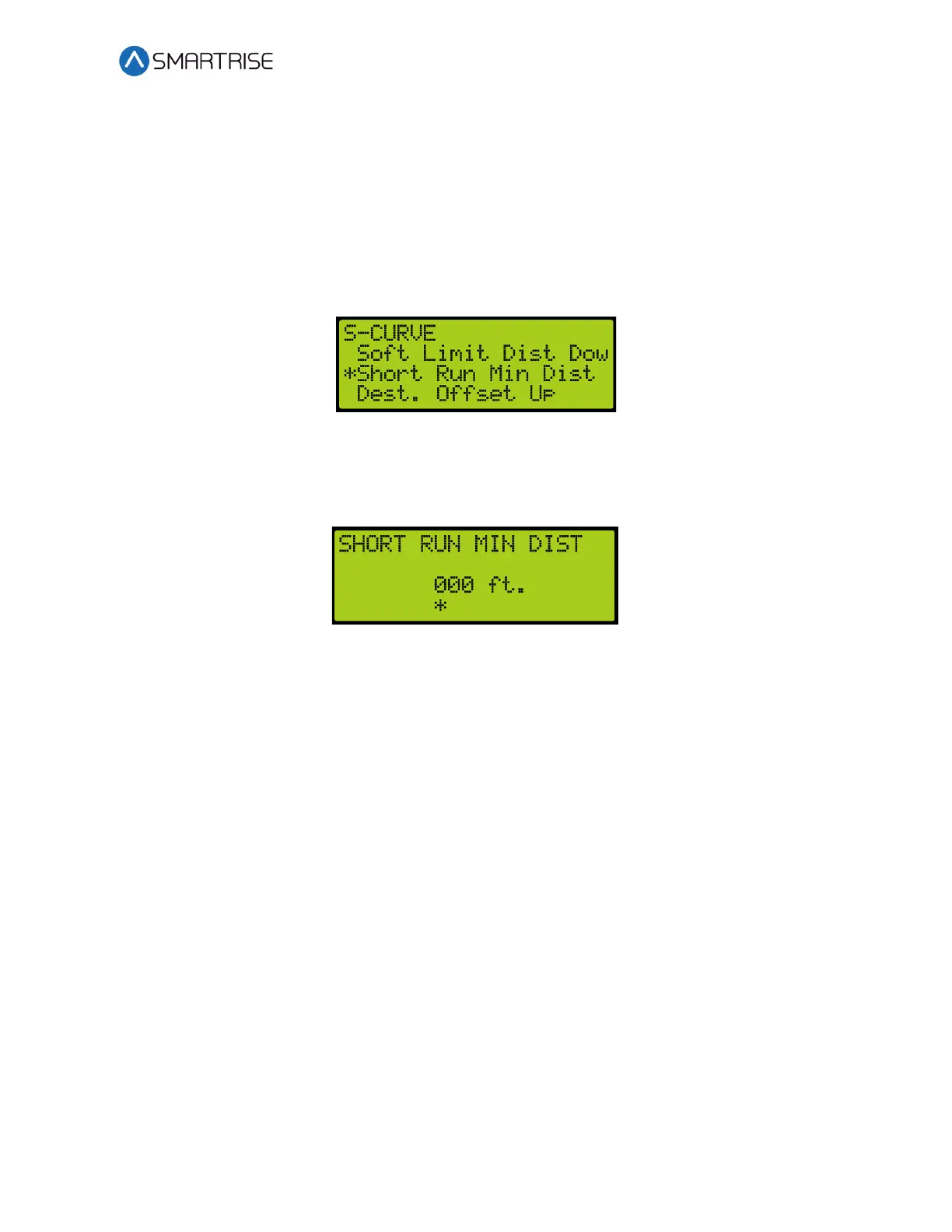

Figure 146: S-CURVE Menu – Short Run Min Distance
3. From the SHORT RUN MINIMUM DISTANCE menu, enter the distance the car travels
down for a short run.
Figure 147: SHORT RUN MIN DIST Menu
4. Scroll right and press Save.
9.5 Destination Offset
Destination offsets are used to make up for motor tracking issues when making floor levels. The
destination offset up is set to start slowing down the car prior to the landing when moving in
the up direction. The destination offset down is set to start slowing down the car prior to the
landing when moving in the down direction. Best practice is to set all floor levels in one
direction (approaching floor in the up direction for example) and then set offset approaching
the floor from the other direction (setting Destination Offset Down in this example) to offset
floor level discrepancy in different approach directions.
NOTE: If destination offset is set to a value higher than 26 counts, it will cause the car to relevel.
Releveling offset will need to be set to match the destination offset in that situation.
The following procedure describes how to set the offset destination offset when the car is
moving.
1. Navigate to MAIN MENU | SETUP | S-CURVE. See Figure 55.
