3. From the CALLS ENABLE menu, scroll and select On.

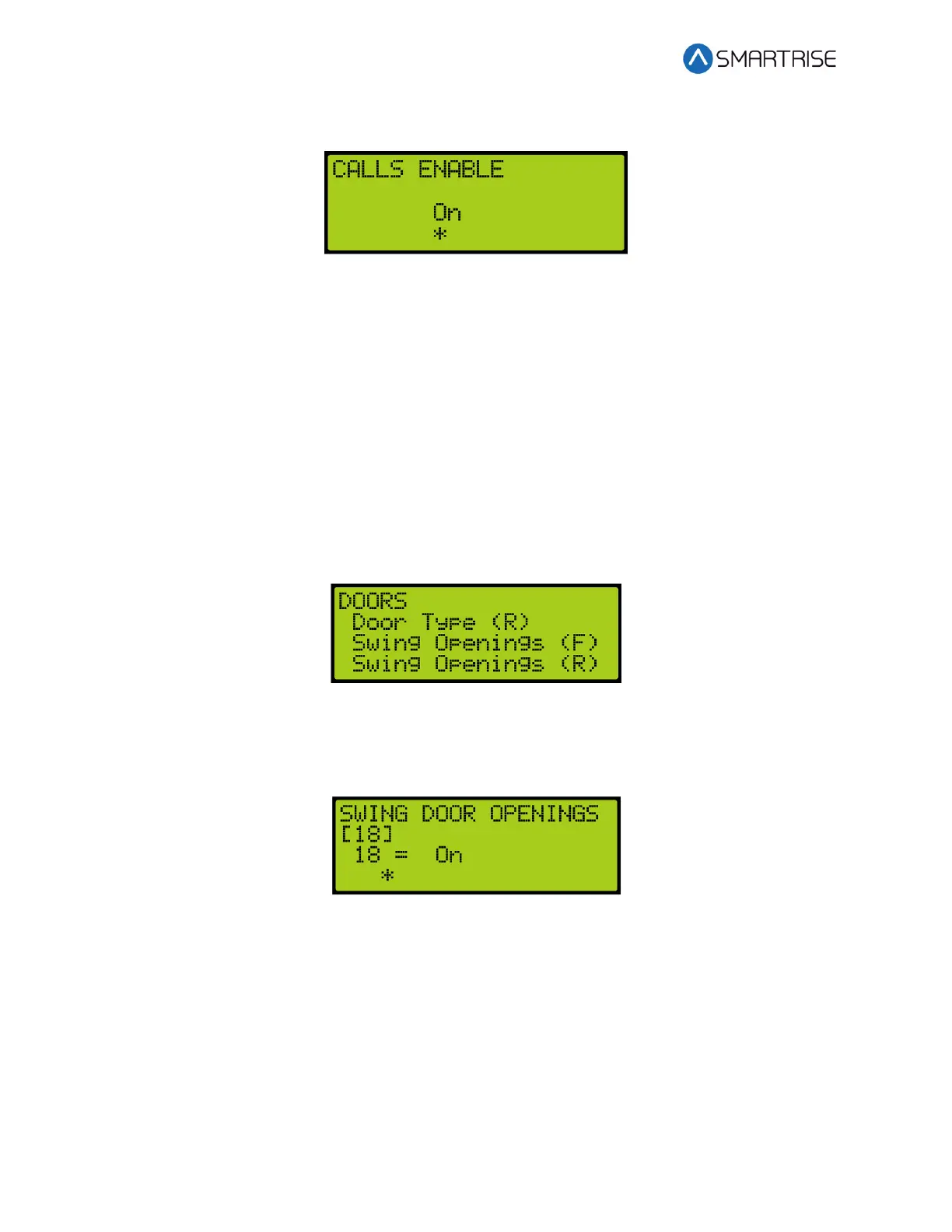

Figure 479: CALLS ENABLE Menu
4. Scroll right and press Save.
30.3 Swing Opening
A swing door is used when there in a high traffic area. These door can open or closes
automatically. Swing openings can be set to active for multiple landings.
The following procedure describes how to set which landings are set for front or rear swing
opening.
1. Navigate to MAIN MENU | SETUP | DOOR SETUP. See Figure 55.
2. From the DOORS menu, scroll and select Swing Openings (Front or Rear).
Figure 480: DOORS Menu – Swing Openings (Front or Rear)
3. From the SWING DOOR OPENINGS menu, scroll and select which landings are set for
swing opening.
Figure 481: SWING DOOR OPENINGS Menu
4. Scroll right and press Save.
30.4 Swing Call Mask
Swing call mask identifies which function set of hall boards are seen as special swing hall calls.
Swing calls put the swing car on swing operation.
The following procedure describes how to set swing call mask.
1. Navigate to MAIN MENU | SETUP | GROUP SETUP. See Figure 60.
