C4 User Manual
October 25, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 133
10.8 Fine Tune
Prior to fine tune, verify the Sensor Array Assembly placement. The Sensor Array Assembly
should be at a distance of 4.13” with a tolerance of ±1 cm from the tape and parallel to the tape
clip mounting brackets. See Figure 162.
The optical sensor and reader can move front and back, and side to side as applicable.

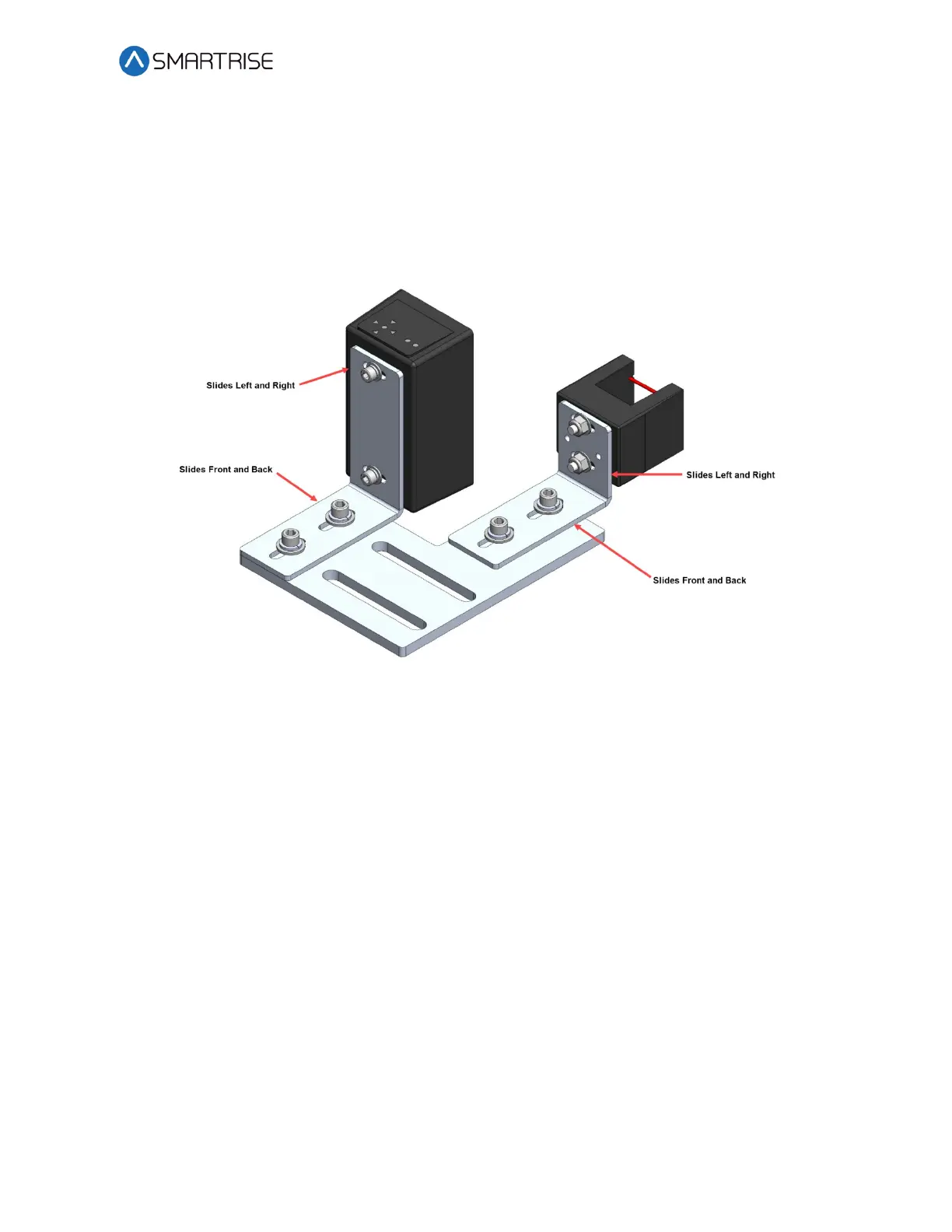

Figure 184: Sensor Array Assembly Adjustment
