C4 User Manual
October 25, 2021 ©2021 Smartrise Engineering, Inc. All Rights Reserved Page 275
5. Scroll right and press Save.
6. Press the left button until the ETSL menu displays.
7. From the ETSL menu, scroll and select Buffer Distance.

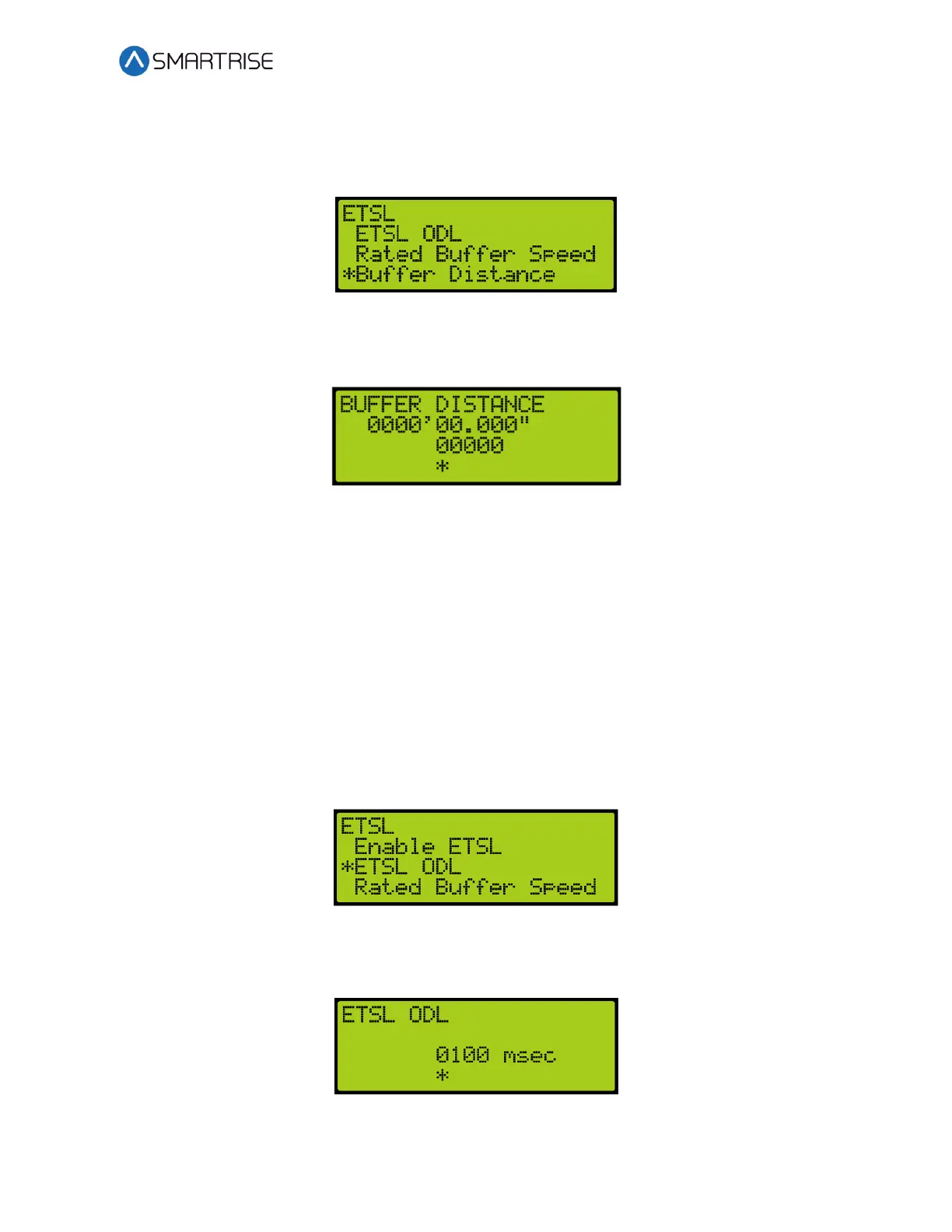

Figure 526: ETSL Menu – Buffer Distance
8. From the Buffer Distance menu, enter buffer distance.
Figure 527: BUFFER DISTANCE Menu
9. Scroll right and press Save.
32.11.3 ETSL ODL
The ETSL ODL is used to set the sensitivity of ETSL device. The ETSL ODL setting is increased only
to avoid tripping.
The following procedure describes how to set the ETSL ODL.
1. Navigate to MAIN MENU | SETUP | SAFETY. See Figure 54.
2. From the SAFETY menu, scroll and select ETSL. See Figure 521.
3. From the ETSL menu, scroll and select ETSL ODL.
Figure 528: ETSL Menu – ETSL ODL
4. From the ETSL ODL menu, set the time for the ETSL open door limit.
Figure 529: ETSL ODL Menu
