Smartrise C4 User Manual

C4 User Manual
Page 118 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021

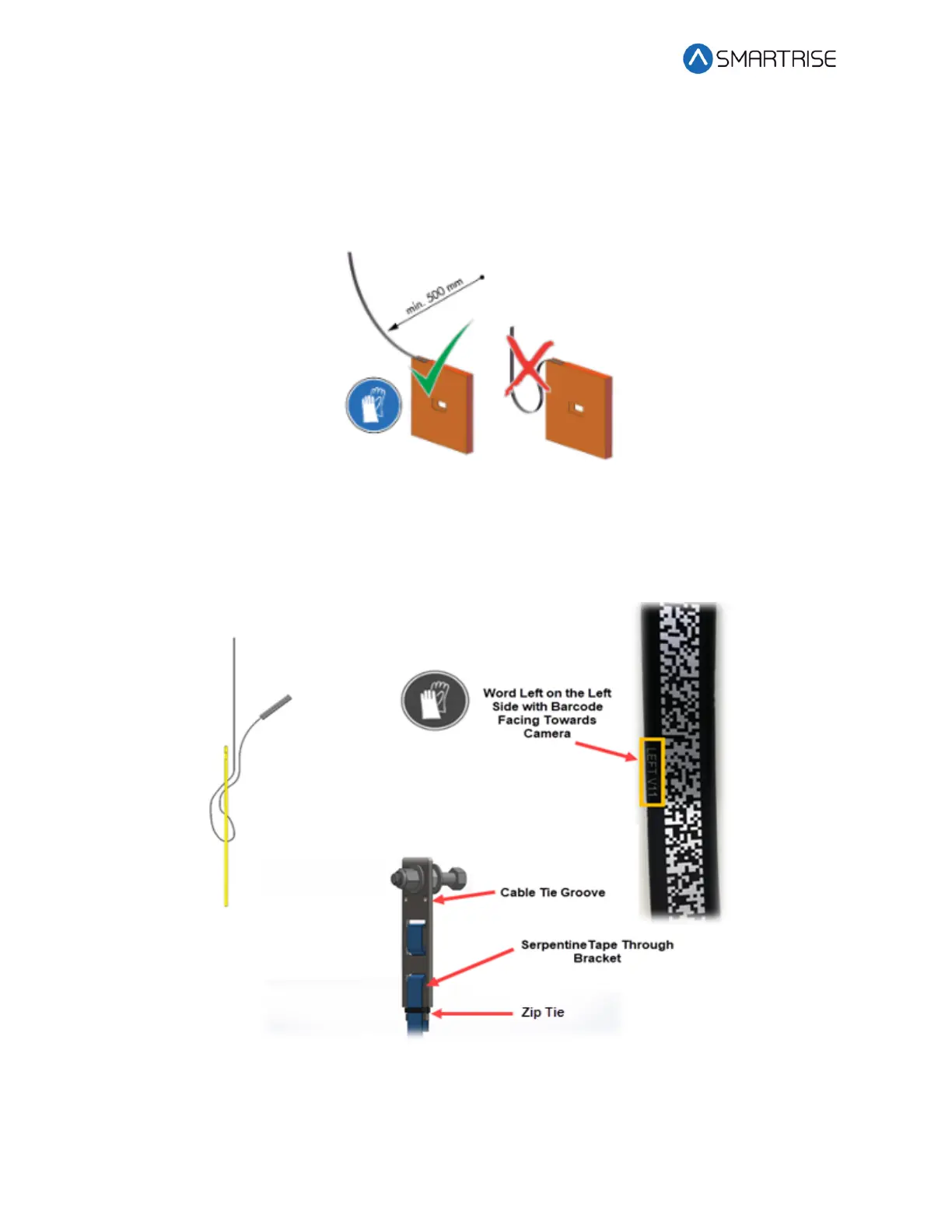

The following procedure describes how to install the tape.
1. Open the tape box at the top corner, being mindful of the sharp end or edges, and pull
out tape as needed.
CAUTION: Do not pull too much tape out of the box as excessive bending can occur and
damage the tape.
Figure 159: Tape Minimum Bend Radius
2. Serpentine and secure the tape through the bracket then zip tie loose end.
NOTE: Verify the words Left are on the left side of the tape with the barcode facing out
towards the camera.
Figure 160: Routing Tape
