C4 User Manual
Page 286 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021
33.2.3 Earthquake Status
The status of the fire and earthquake display the input status for the selected fire, smoke, and
earthquake options.
The following procedure describes how to view the fire/earthquake status.
1. Navigate to MAIN MENU | STATUS | INPUTS. See Figure 45.
2. From the INPUTS BY FUNCTION menu, scroll and select Fire/Earthquake.

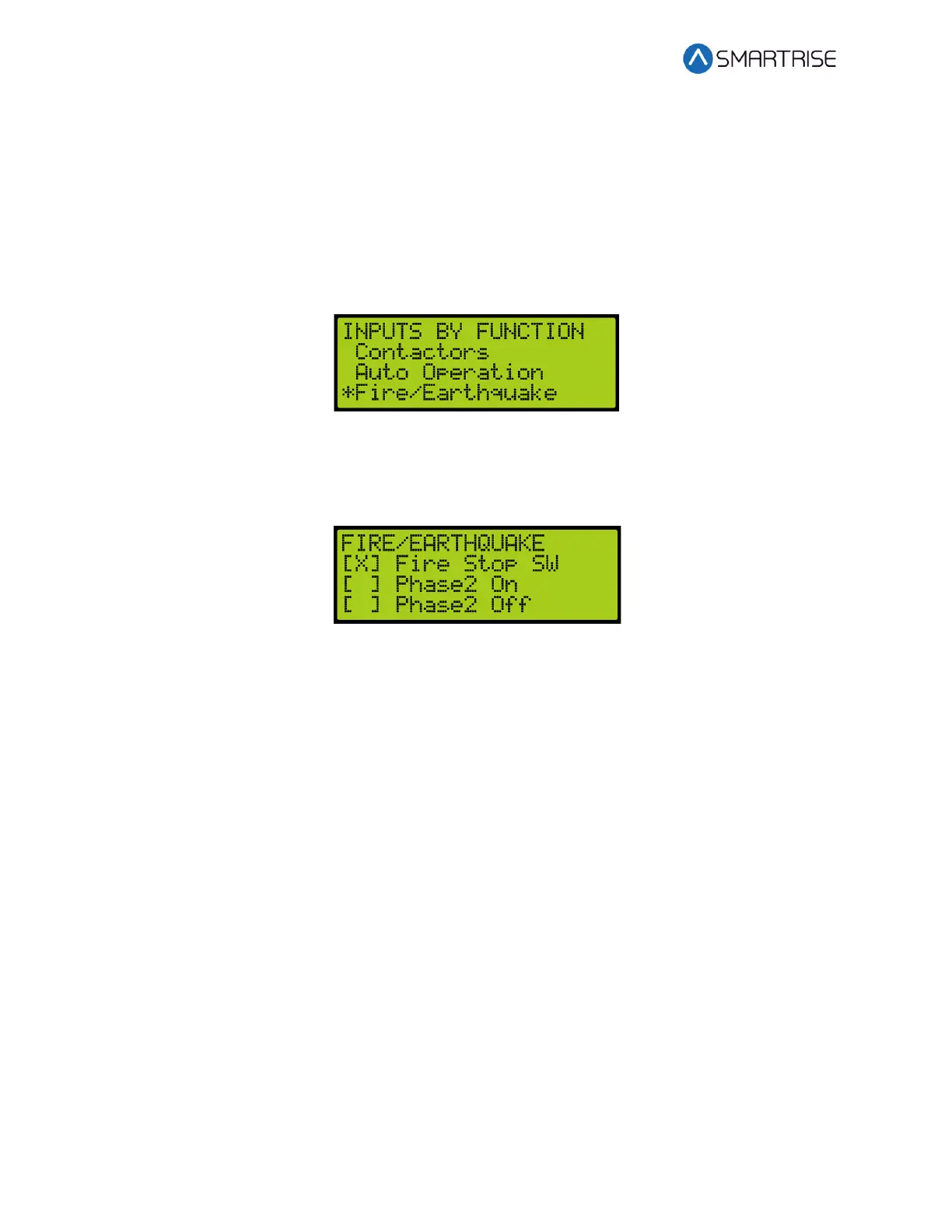

Figure 544: INPUTS BY FUNCTION Menu – Fire/Earthquake
3. From the FIRE/EARTHQUAKE menu, view the status of all selected fire and earthquake
emergency services.
Figure 545: FIRE/EARTHQUAKE Menu
33.3 Fire
Fire Phase 1 and Phase 2 allows for controlling a car(s) during a fire situation.
Fire Phase 1 – Smoke has been detected and Fire Phase 1 is activated manually (by key or
switch) or automatically (smoke sensor). The car(s) moves to a designated landing with car
doors open. If the landing is where the smoke is detected, the car(s) moves to an alternate
landing. In case the fire is in the machine room, the shunt operation removes main power to
the controller. The MR board activates an external shunt disconnect device after the car has
moved to the designated recall floor and doors are open.
The shunt operation is as follows:
• Smoke sensor activates.
• The car(s) move to the recall floor and open the doors.
• The shunt output activates and opens the Shunt Bypass switch, removing power to the
main disconnect.
Fire Phase 2 – A key switch is used to allow fire fighters or emergency personnel to gain control
from inside the elevator.
