C4 User Manual
Page 126 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021

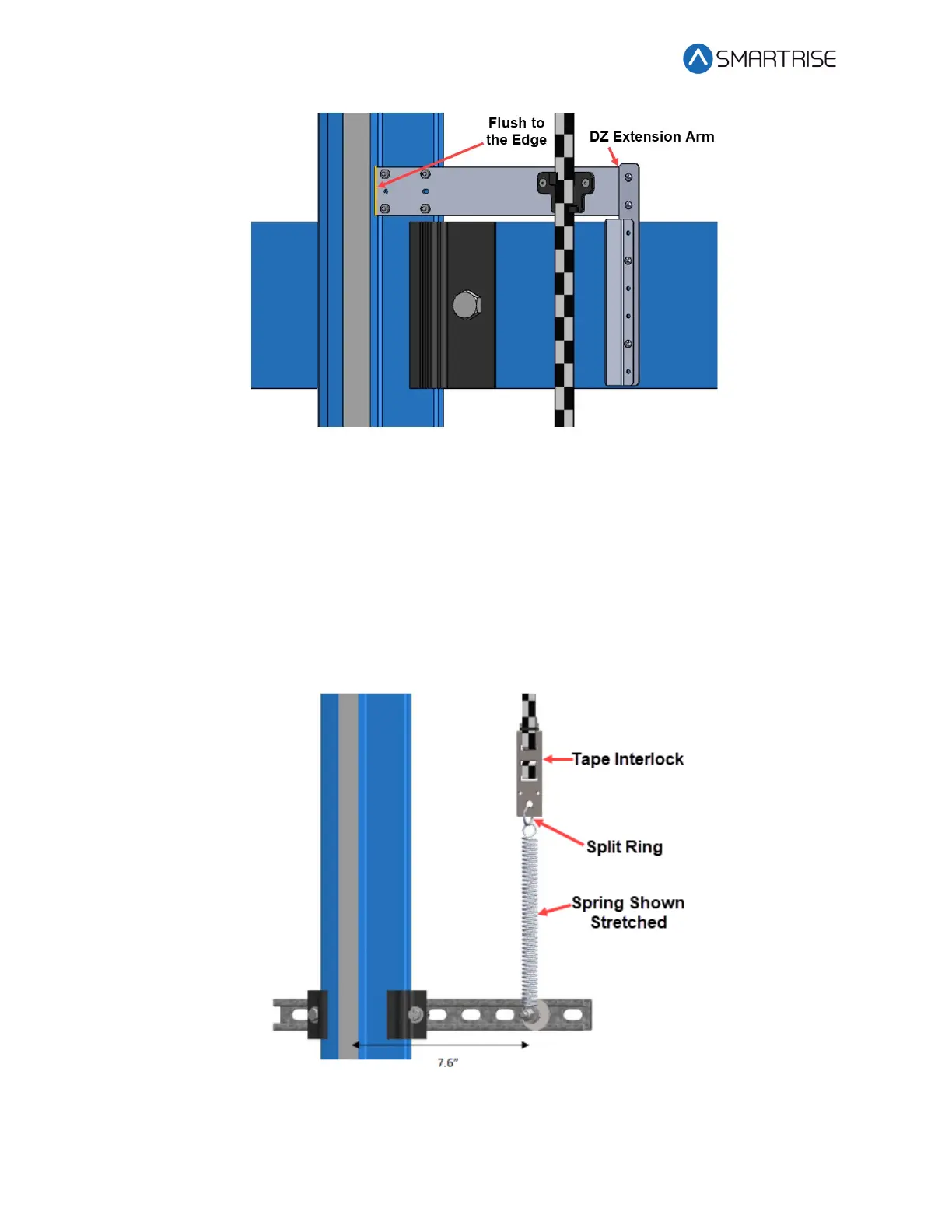

Figure 172: Tape Clip Assembly Alignment
9. Continue down the hoistway, placing the Tape Clip Assembly at each landing.
10.5 Lower Tape Mount Assembly
See Figure 163 for the location of the Lower Tape Mount Assembly.
The following procedure describes how to install the Lower Tape Mount Assembly.
1. Affix an 18” length of Unistrut to the bottom of the guide rail.
Figure 173: Lower Tape Mount Assembly
