C4 User Manual
Page 198 ©2021 Smartrise Engineering, Inc. All Rights Reserved October 25, 2021
5. From the Rear Opening Map Status (see Figure 355), press the right button.
6. From the Front Security Map Status (see Figure 356), press the right button.
7. From the Rear Security Map Status (see Figure 357), press the right button.
8. From the Linked Hall Mask Status (see Figure 358), press the right button.
9. From the Front Hall Security Map Status (see Figure 359), press the right button.
10. View the Rear Hall Security Map Status.

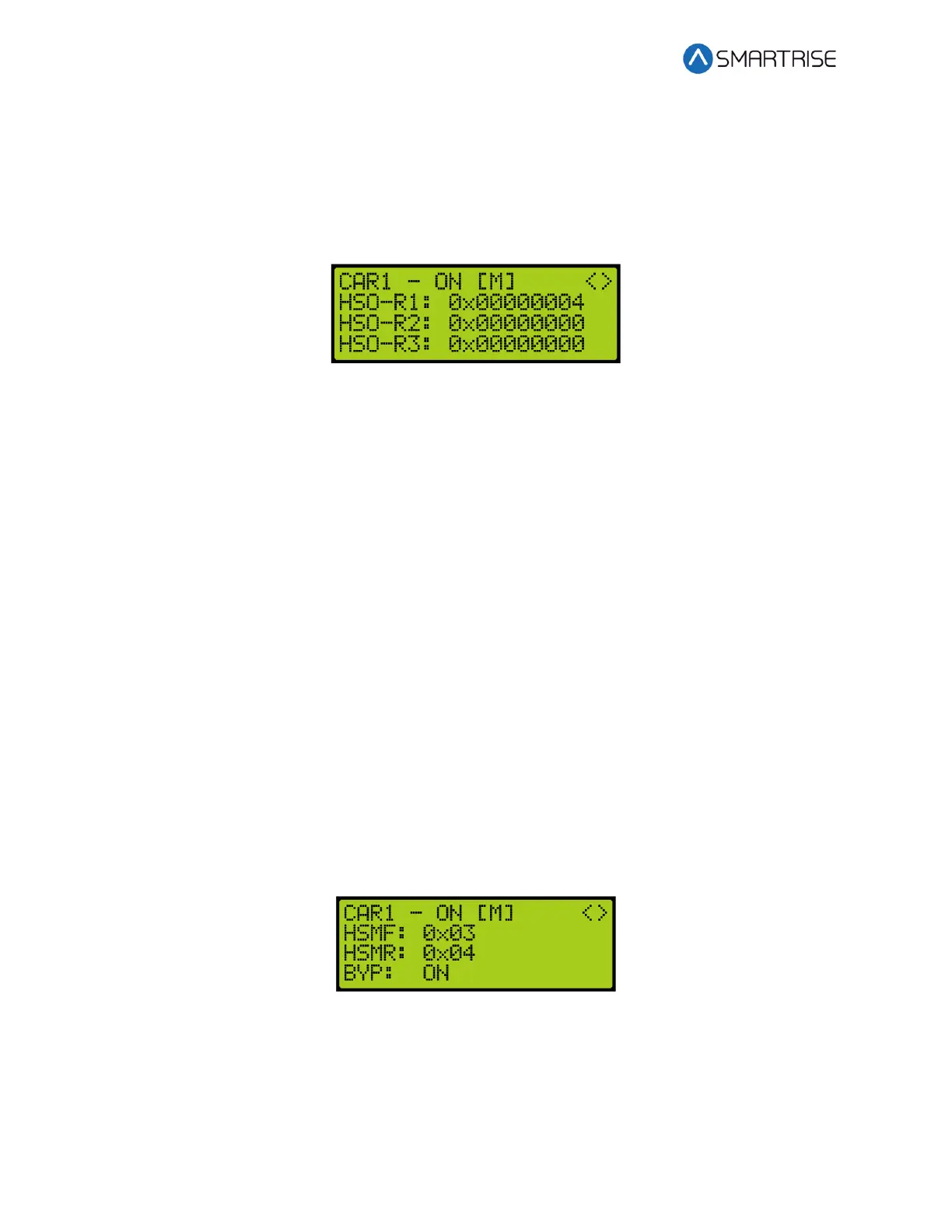

Figure 360: Rear Hall Security Map Status
17.7 Hall Security Mask Status
The hall security mask displays the status of all enabled secured hall calls.
The hall security bypass status (BYP) is ON if the hall security is disabled. This occurs if the
Enable Hall Security option is OFF (parameter 01-0138) or the Enable All HC input is
programmed and active. For the list of parameters, see the C4 Parameter List.
The following procedure describes how to view the hall security mask status.
1. Navigate to MAIN MENU | DEBUG | CAR DATA. See Figure 66.
2. From the Car Data Overview Status (see Figure 352), press the right button.
3. From the Hall Mask Status (see Figure 353), press the right button.
4. From the Front Opening Map Status (see Figure 354), press the right button.
5. From the Rear Opening Map Status (see Figure 355), press the right button.
6. From the Front Security Map Status (see Figure 356), press the right button.
7. From the Rear Security Map Status (see Figure 357), press the right button.
8. From the Linked Hall Mask Status (see Figure 358), press the right button.
9. From the Front Hall Security Map Status (see Figure 359), press the right button.
10. From the Rear Hall Security Map Status (see Figure 360), press the right button.
11. View the Front and Rear Hall Security Mask Status.
Figure 361: Front and Rear Hall Security Mask Status
