28. From the HOISTWAY ACCESS SLIDE DISTANCE, enter the maximum distance the car is
allowed to be within the top or bottom door zone.

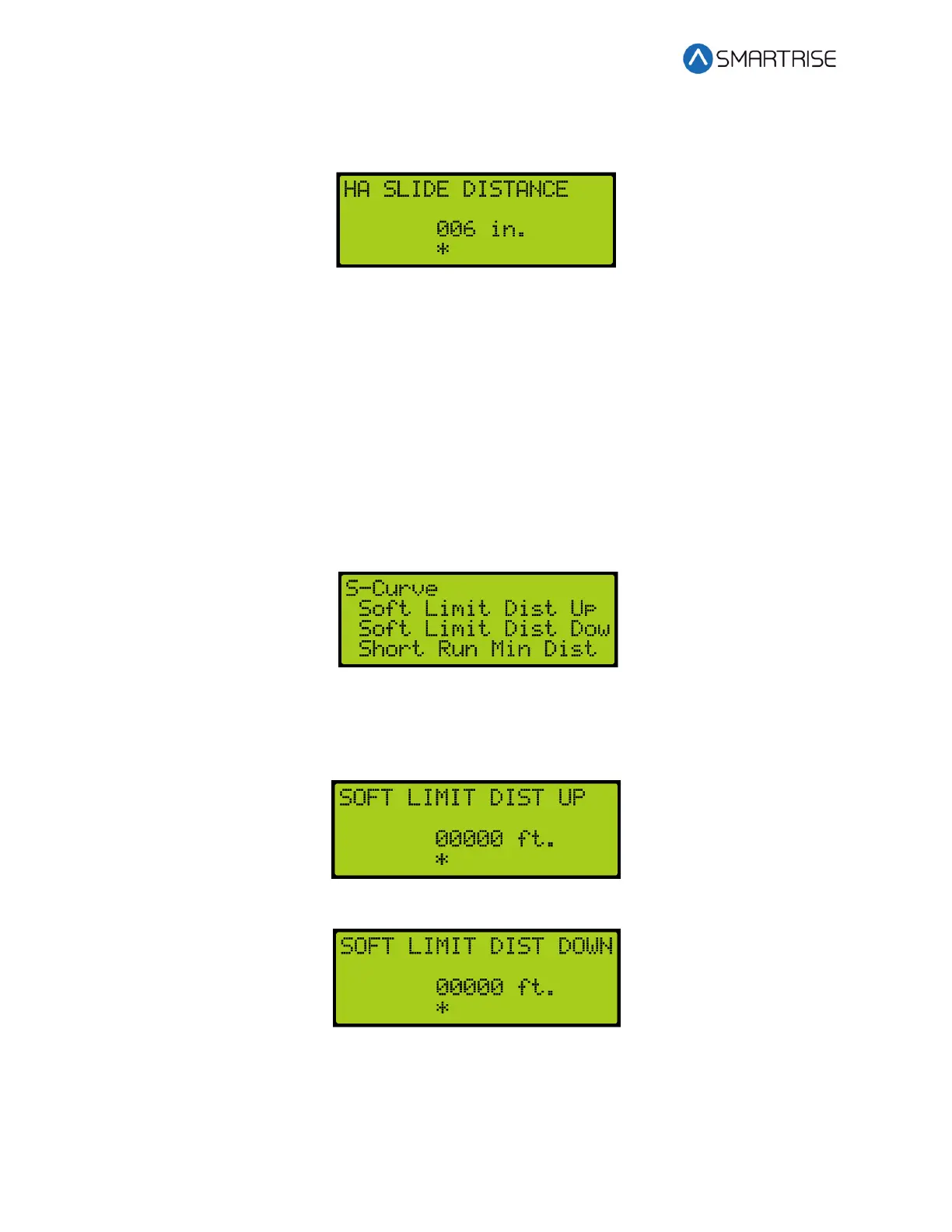

Figure 410: Hoistway Access Slide Distance
29. Scroll right and press Save.
28.1 Soft Limit
The soft limit distance sets the distance away from the terminal floor that the car will switch to
inspection terminal speed during manual operation.
The following procedure describes how to set the soft limit.
1. Navigate to MAIN MENU | SETUP | S-CURVE. See Figure 55.
2. From the S-CURVE menu, scroll and select Soft Limit Distance Up or Down.
Figure 411: S-CURVE Menu – Soft Limit Distance (Up or Down)
3. From the SOFT LIMIT DISTANCE UP or DOWN menu, scroll and select the distance the
top or bottom terminal floor switches to inspection during manual operation.
Figure 412: SOFT LIMIT DISTANCE UP Menu
Figure 413: SOFT LIMIT DISTANCE DOWN Menu
4. Scroll right and press Save.
