16.32 Rear Door State
The rear door state displays the current state of the car with rear door opening.
The following procedure describes how to view the state of the rear door.
1. Navigate to MAIN MENU | DEBUG | VIEW DEBUG DATA. See Figure 65.
2. From the View Debug Data menu, press the right button.
3. Scroll down and right until code 044 is displayed.

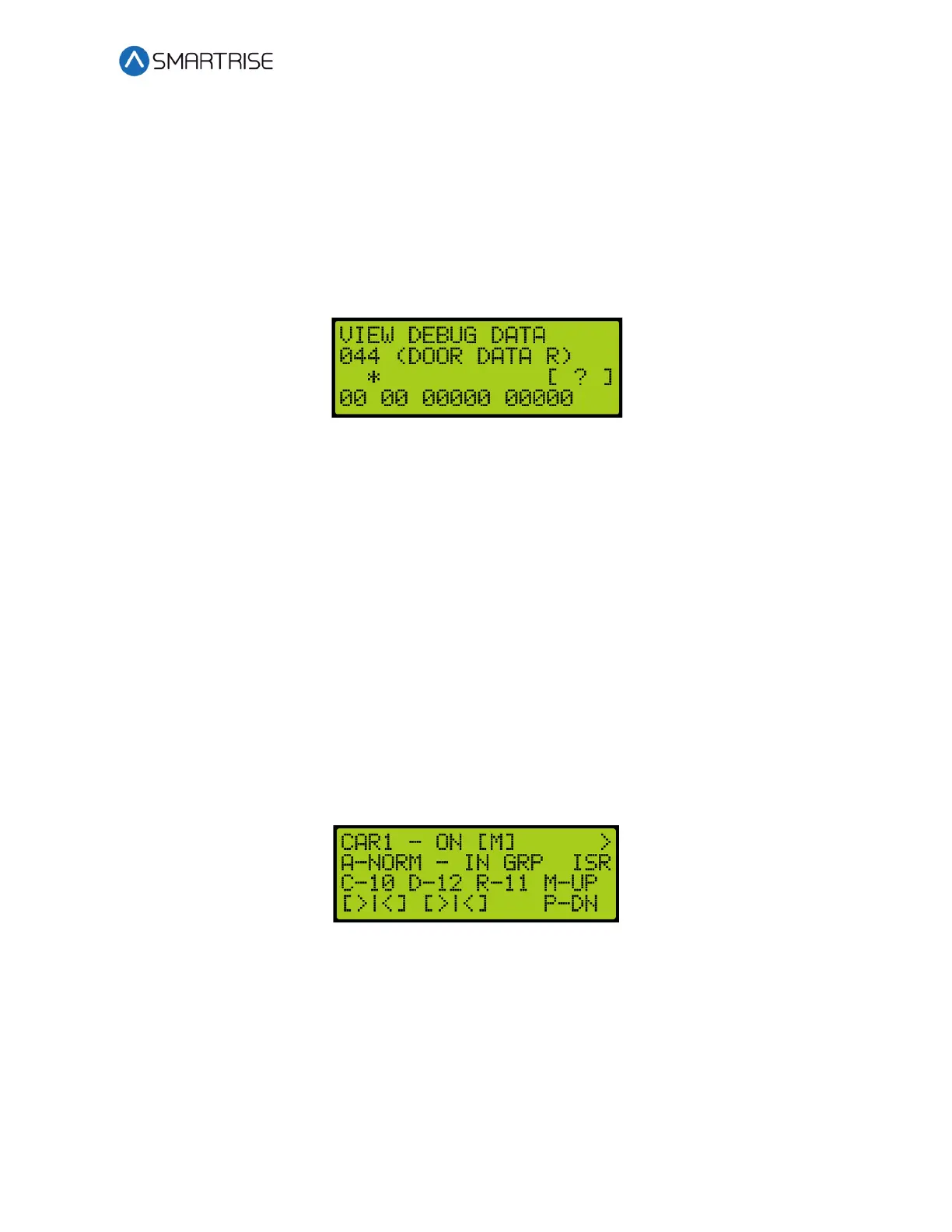

Figure 351: VIEW DEBUG DATA Menu – Rear Door
4. View the state of the rear door.
See section 16.31 Front Door State for the door state, commands, and command descriptions.
17 Car Data
The Car Data can be used to view important dispatching and car status information passed
between grouped cars. It can be used to debug dispatching issues.
17.1 Car Data Overview
The following procedure describes how to view the car status overview.
1. Navigate to MAIN MENU | DEBUG | CAR DATA. See Figure 66.
2. View the Car Data Overview Status.
Figure 352: Car Data Overview Status
The Car Data Overview shows:
Car ID – Displays the selected cars ID number. Valid from 1 to 8.
Online Status – Displays ON if the car is online and broadcasting on the group network,
otherwise it reads OFF.
Master Status – Displays [M] if the car is acting as the master dispatcher for the group.
To Next Page
General
