2. From the S-CURVE menu, scroll and select Destination Offset Up or Destination Offset
Down.

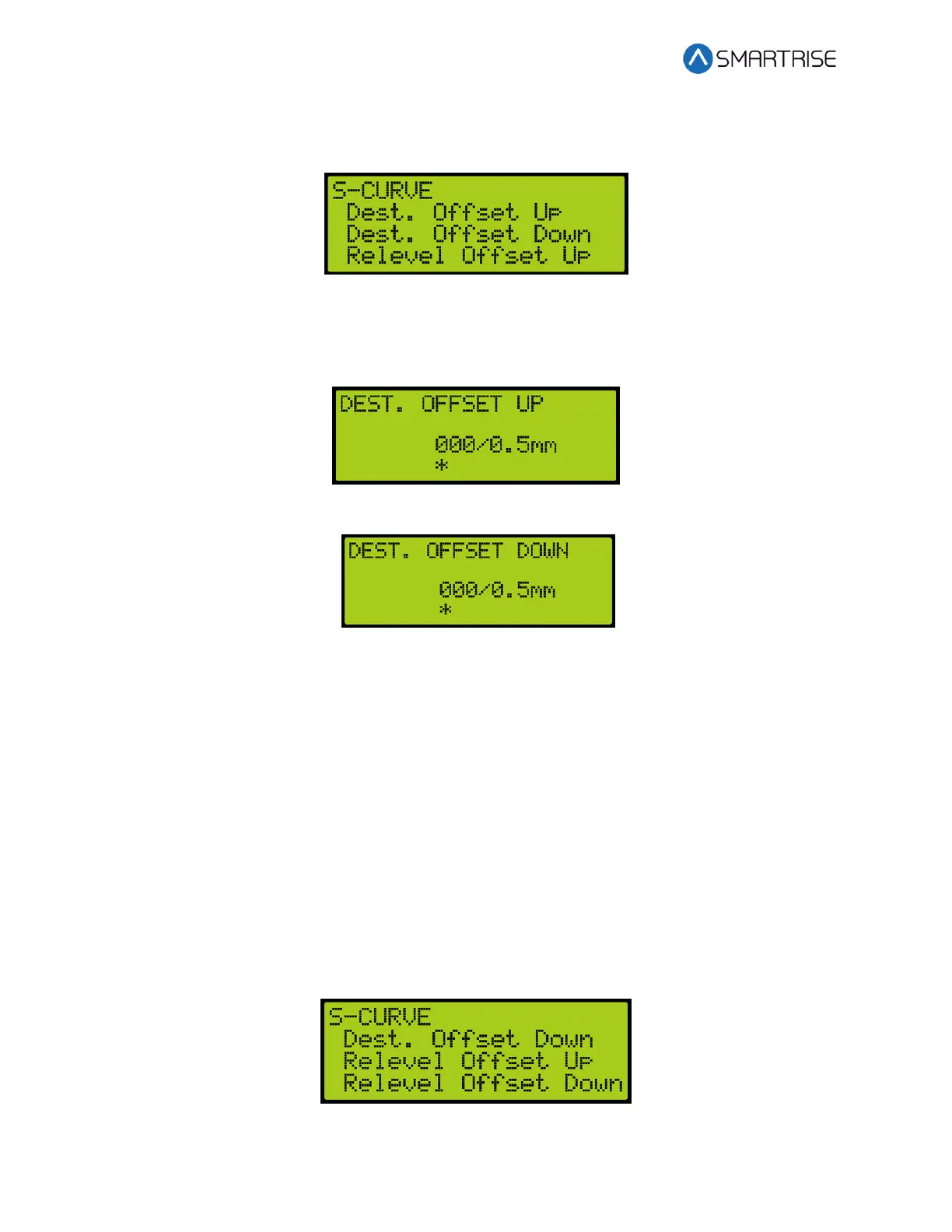

Figure 148: S-CURVE Menu – Destination. Offset (Up or Down)
3. From the DESTINATION OFFSET UP or DOWN menu, enter the amount offset allowed
when the car is moving down.
Figure 149: DESTINATION OFFSET UP Menu
Figure 150: DESTINATION OFFSET DOWN Menu
4. Scroll right and press Save.
9.6 Relevel Offset
Releveling offsets are used to make up for motor tracking issues when releveling up or down to
a floor. This is active when the car is leveling up to or down to a floor.
NOTE: If destination offset is set to a value higher than 26 counts, it will cause the car to relevel.
Releveling offset will need to be set to match the destination offset in that situation.
The following procedure describes how to set the releveling offset when the car is releveling.
1. Navigate to MAIN MENU | SETUP | S-CURVE. See Figure 55.
2. From the S-CURVE menu, scroll and select Relevel Offset Up or Relevel Offset Down.
Figure 151: S-CURVE Menu – Relevel Offset (Up or Down)
