Xerox WorkCentre 5225 Service Manual

February, 2008
5-8
WorkCentre 5225, 5230
PL 2.1
Launch Version
Parts List

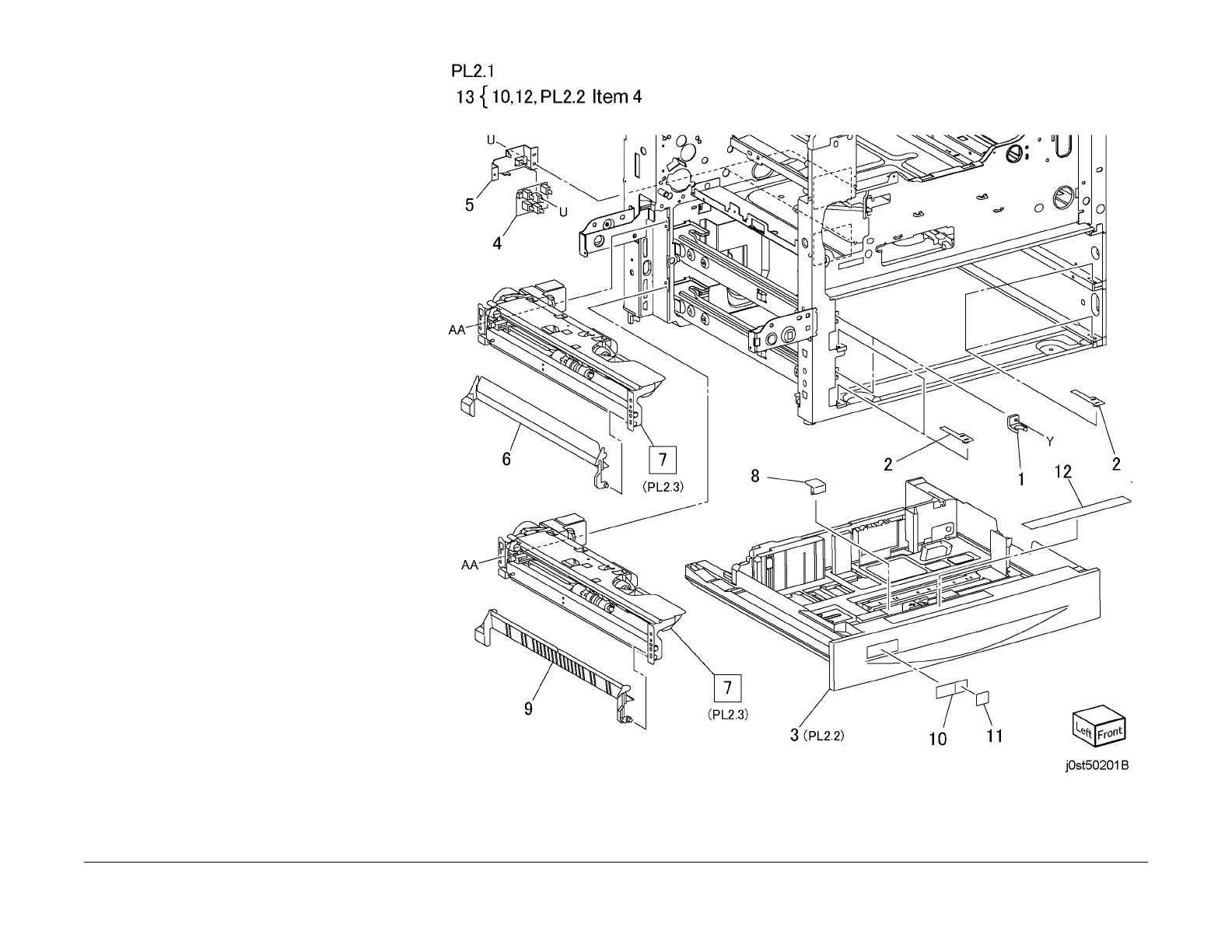

PL 2.1 Tray, Feeder 1/2 Assembly
Item Part Description
1 003E61510 Stopper
2 – Spacer (Not Spared)
3 050K61180 Tray Assembly
4 110K12100 Tray 1 Paper Size Switch, Tray 2
Paper Size Switch
5 – Bracket (Not Spared)
6 054K24091 Feed Out Chute
7 059K42524 Feeder 1 Assembly, Feeder 2
Assembly (REP 2.1.1)
8 – Slide Look (Not Spared)
9 054E25722 Feed Out Chute
10 – Label Tray 1, Label Tray 2 (P/O PL
2.1 Item 13)
11 – Label Size (Not Spared)
12 – Label (Instruction) (P/O PL 2.1 Item
13)
13 604K20550 Tray Label Kit
